Category
Grinding Machine
Type
ID/OD
Made

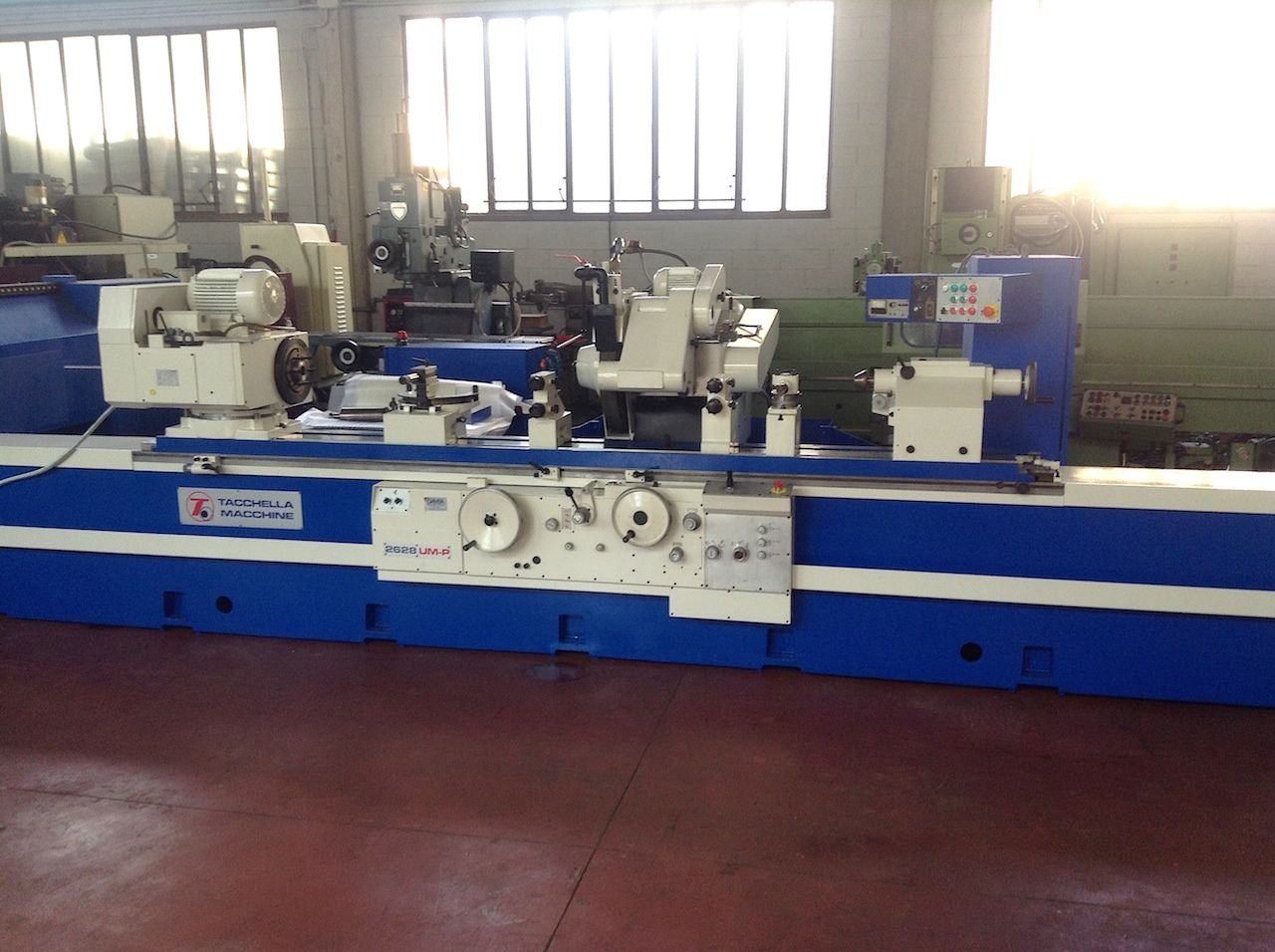

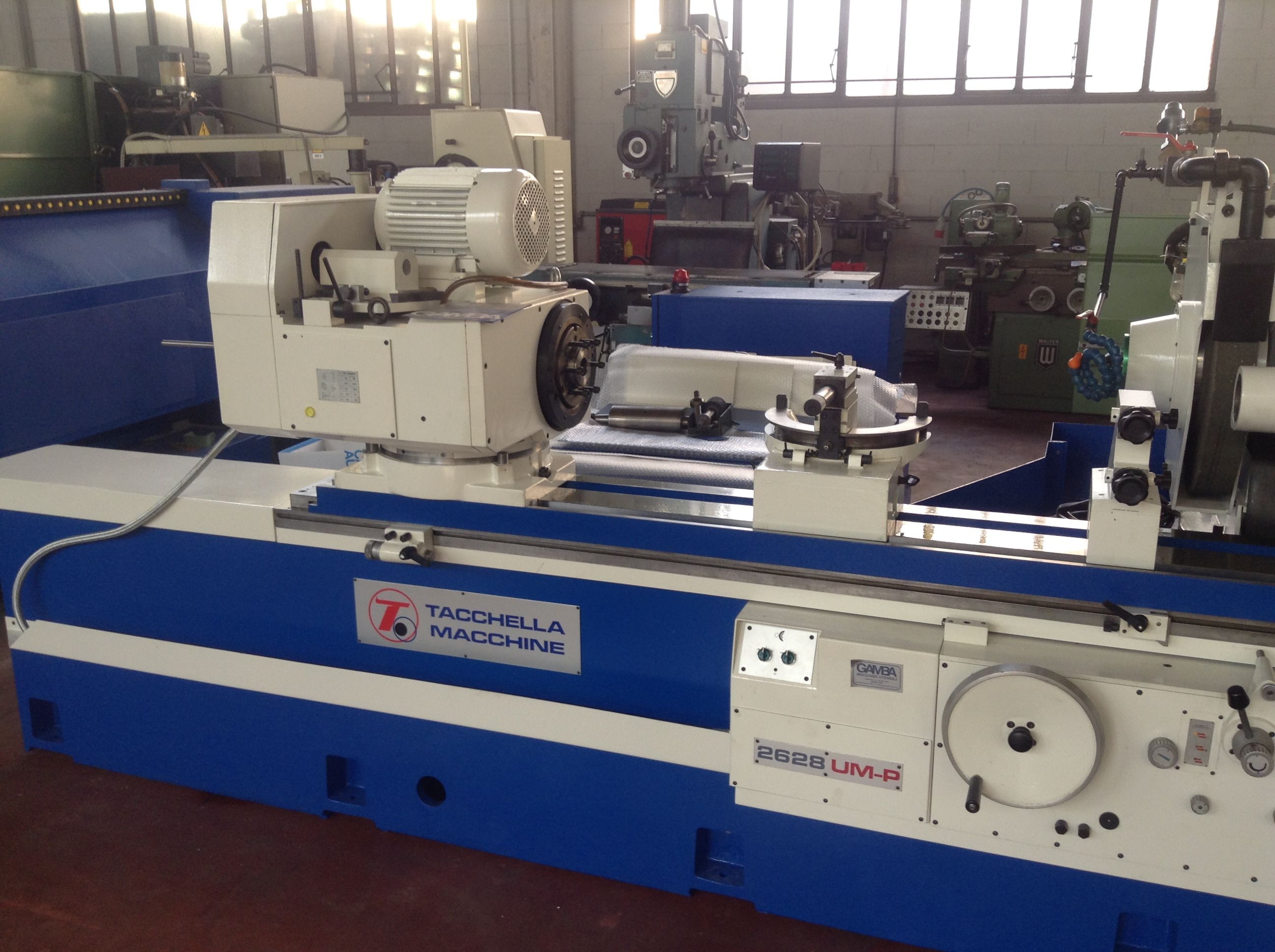

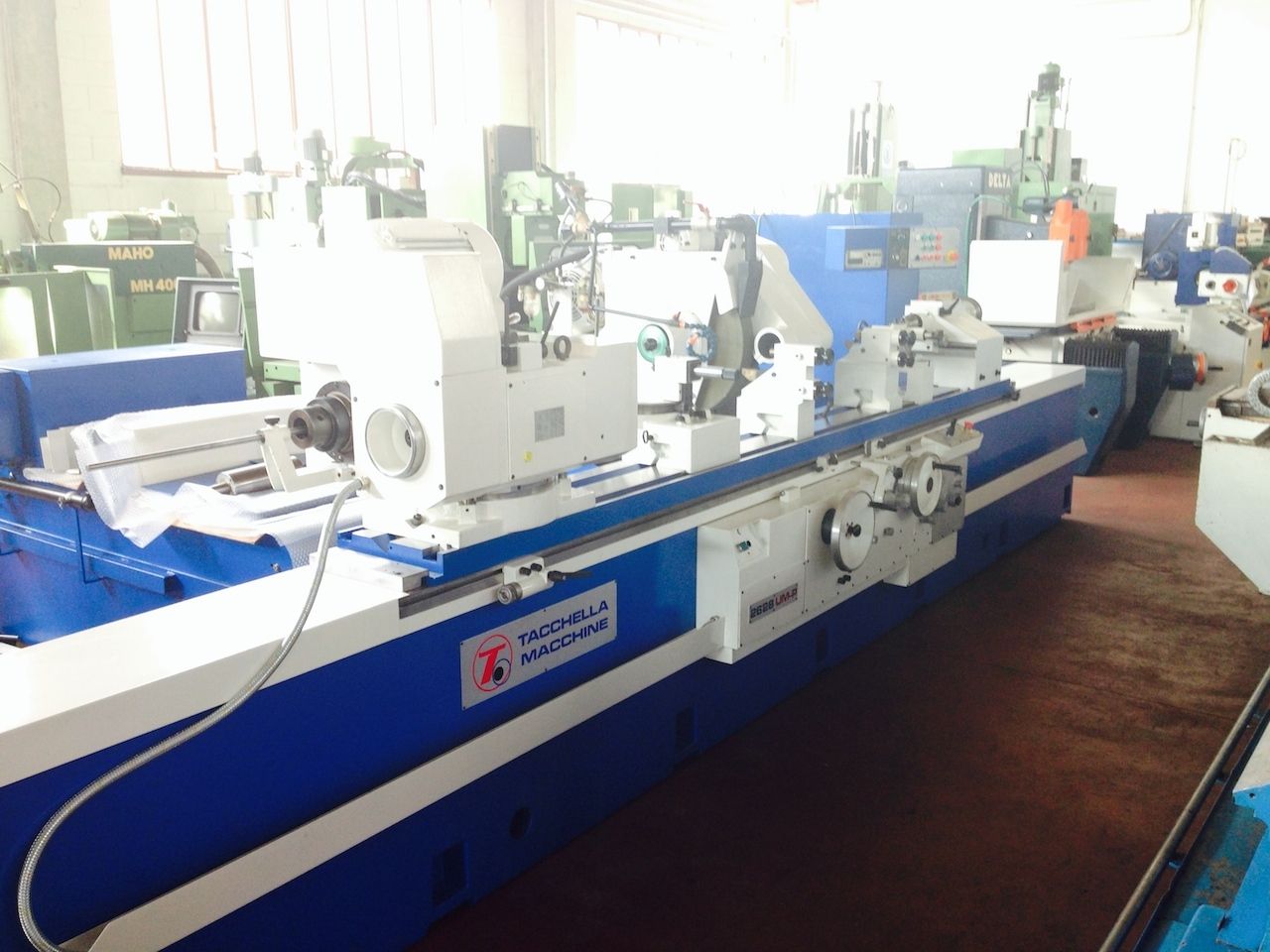

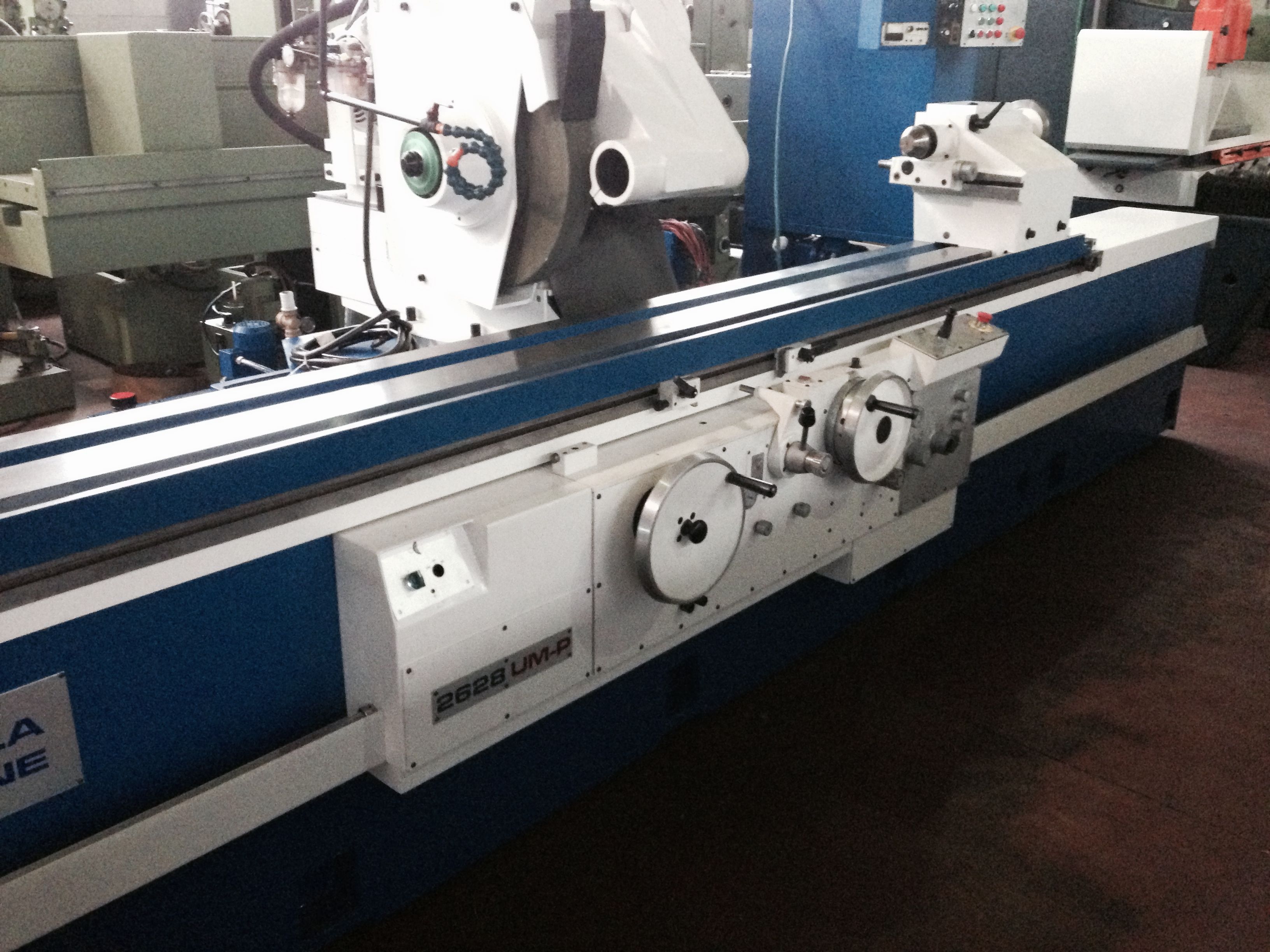

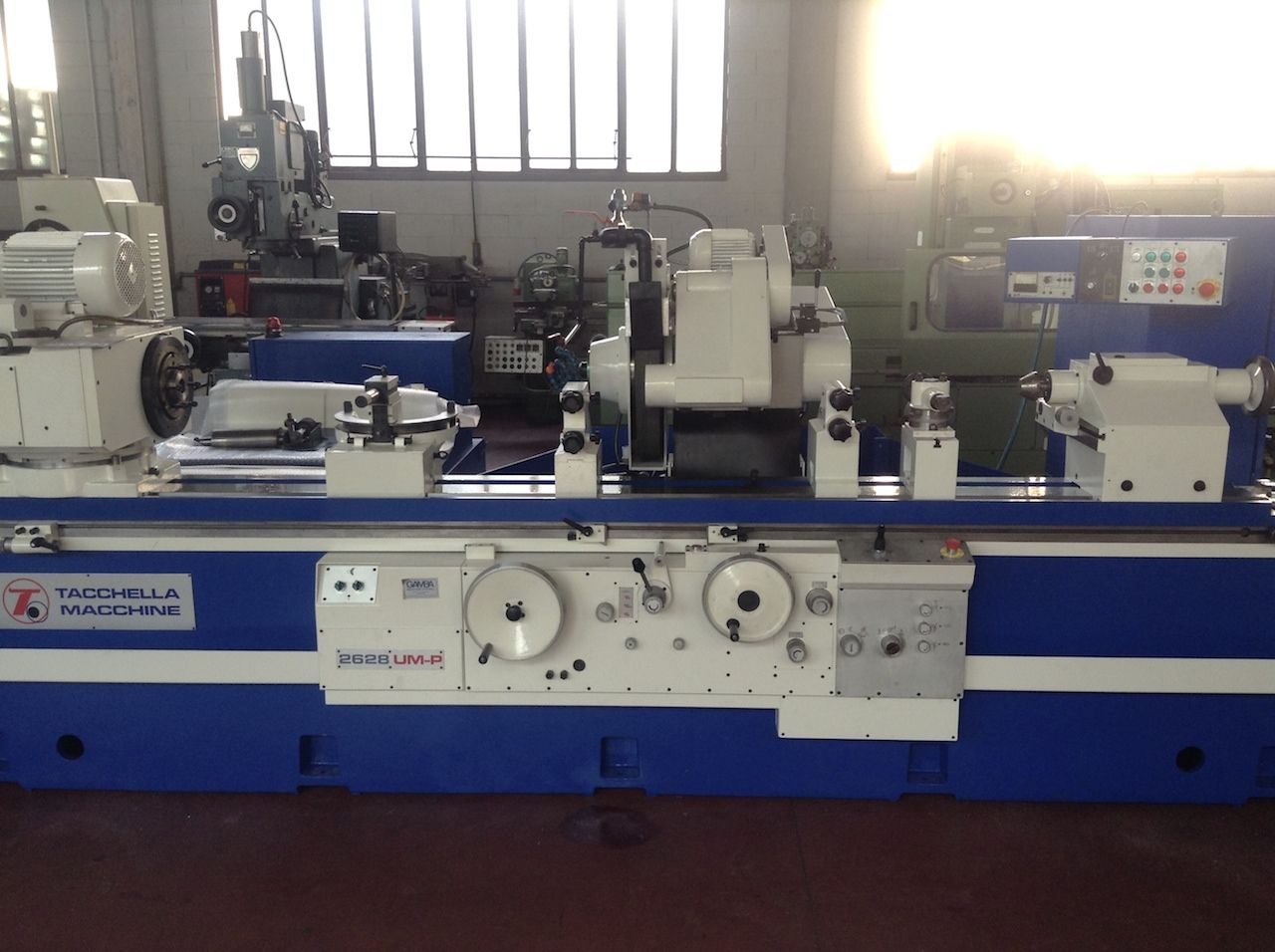

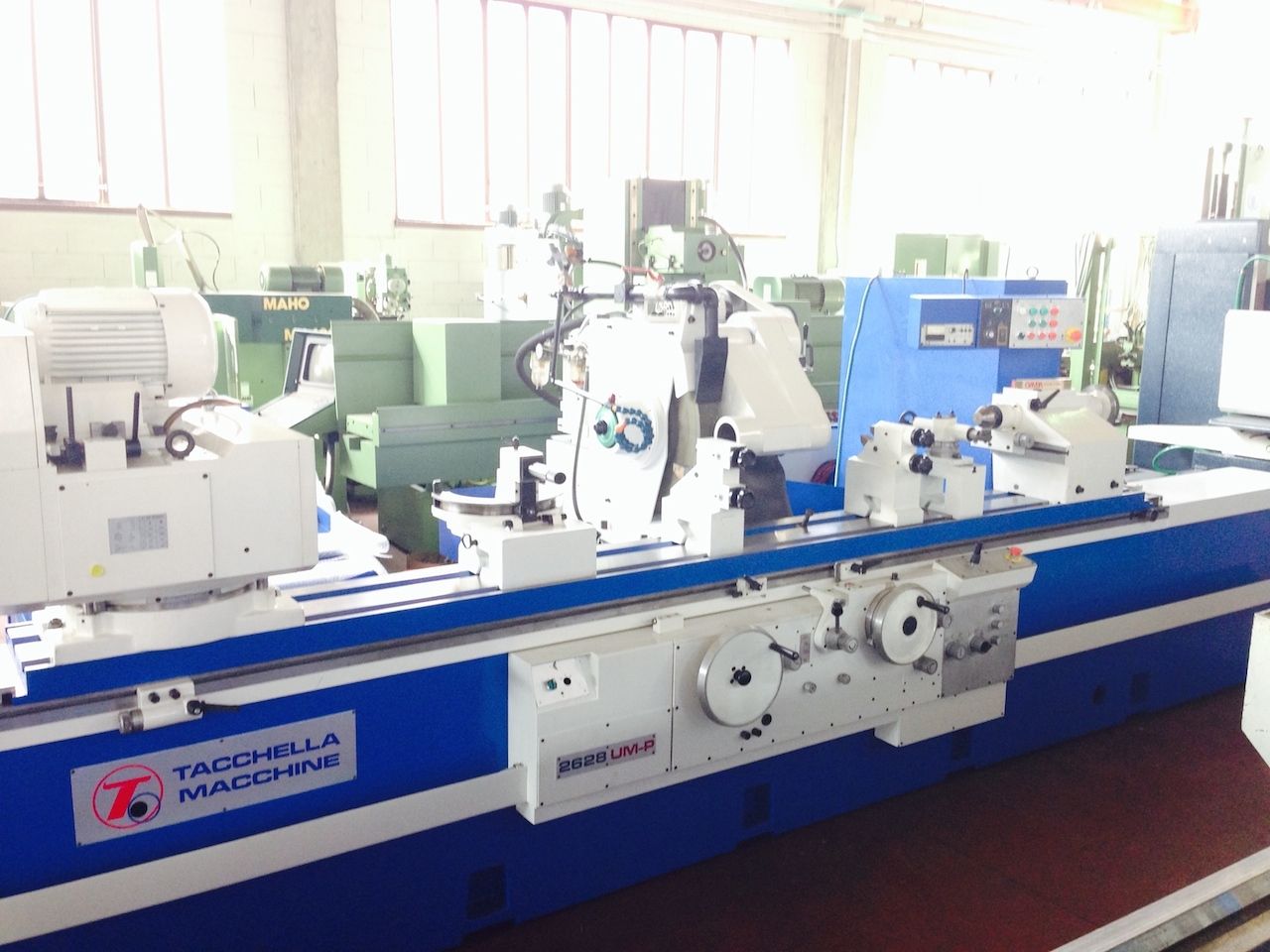

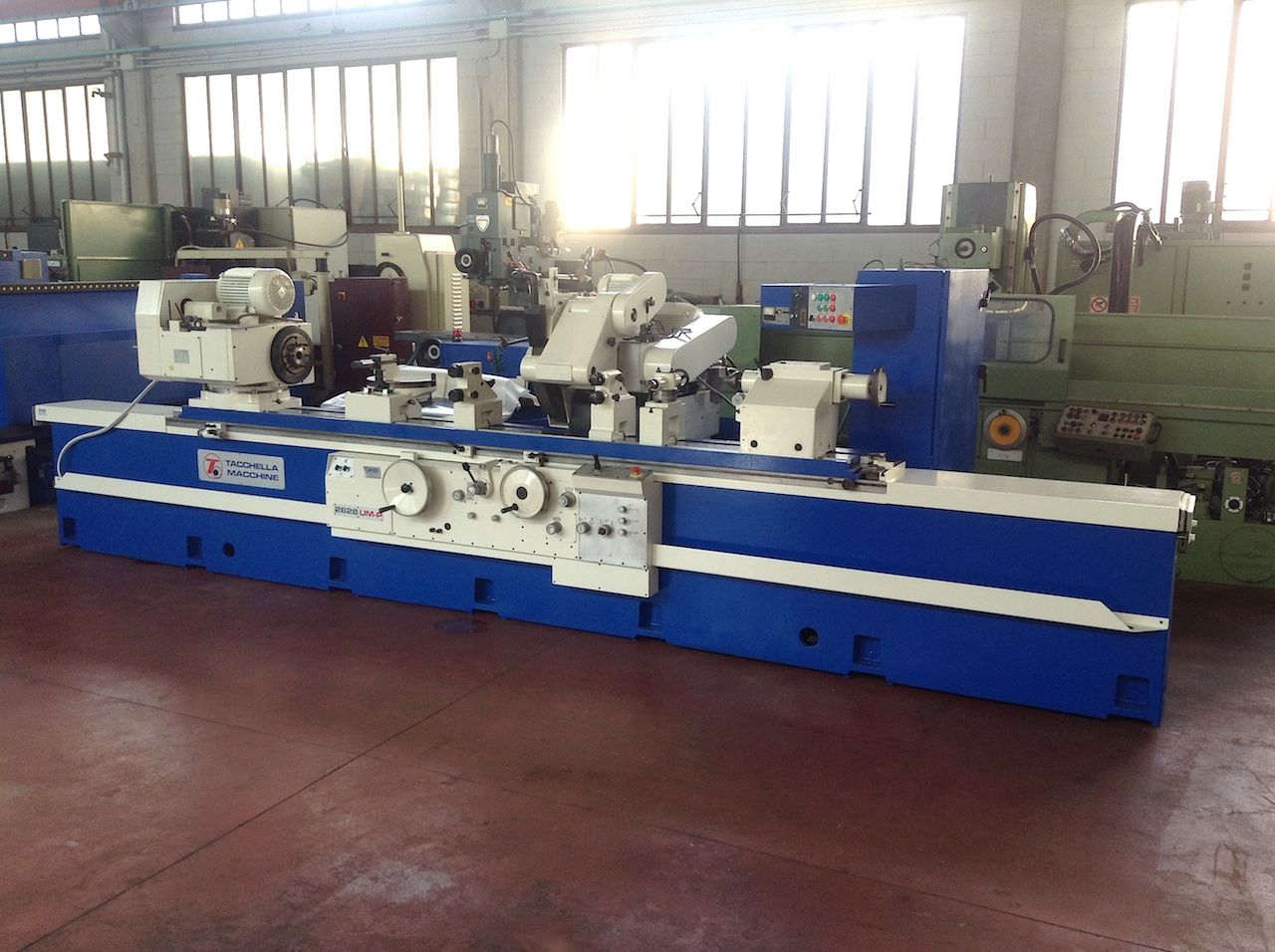

Model

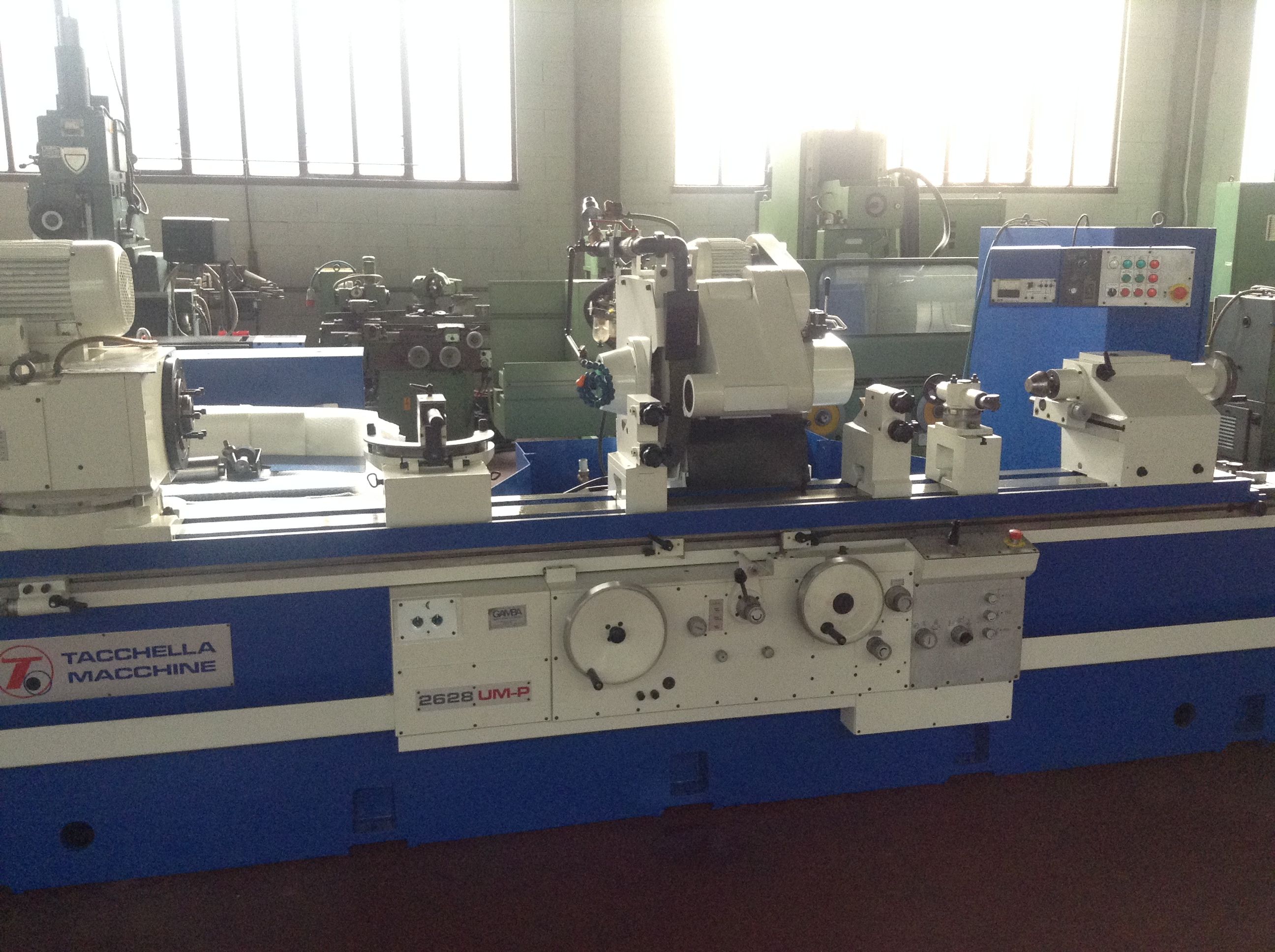

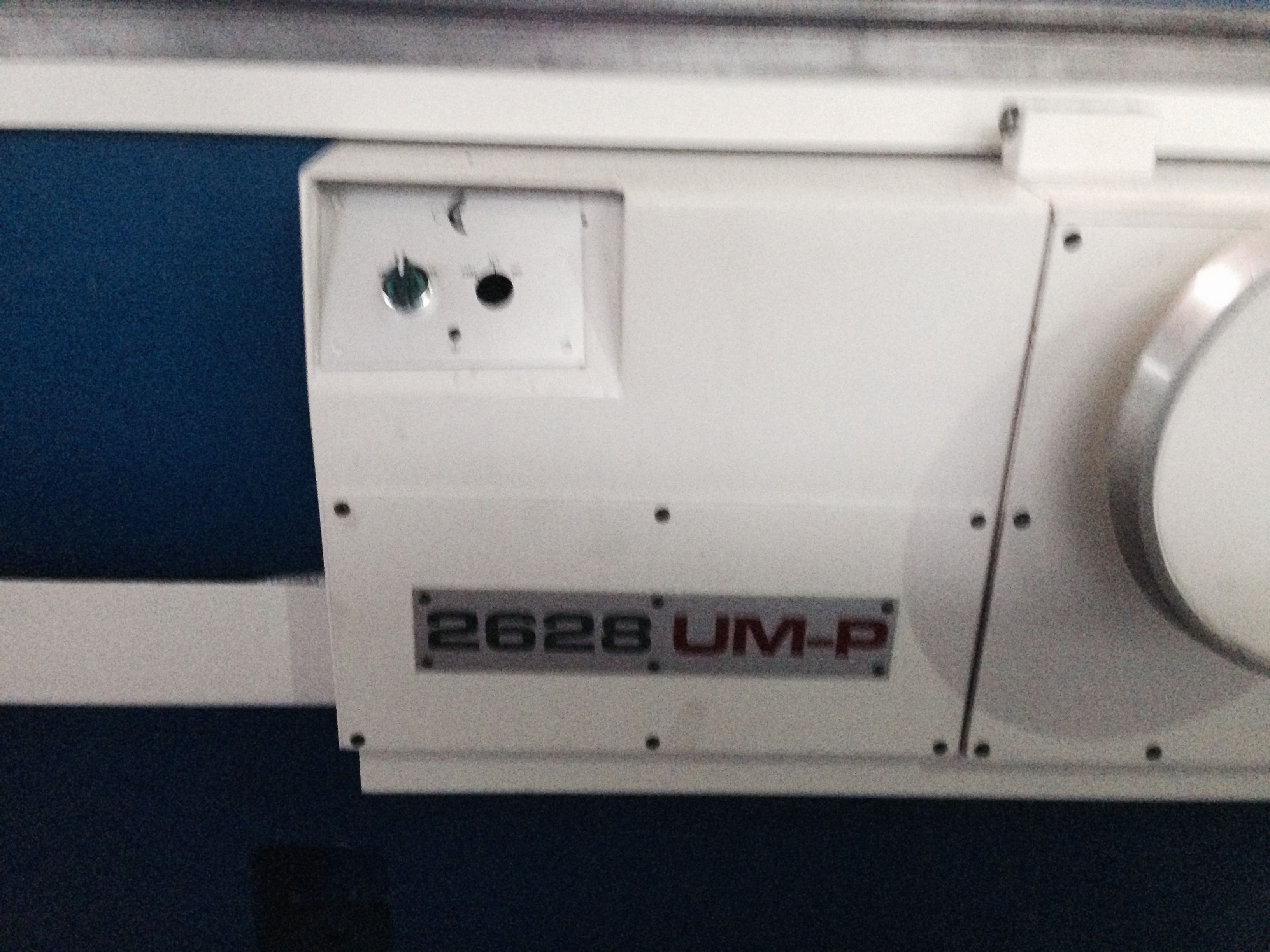

2628 UMP
Capacity
560 X 2600 mm22,05 X 102,36 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
2600 mm102,36 in
Centres height
280 mm11,02 in
Cross (X)
300 mm11,81 in
Max grinding diameter
560 mm22,05 in
TABLE
Cross speed
0,1-4 mm/min0,0039-0,1575 ipm
Max workpiece weight
TRA LE PUNTE 1000KG Kg
Tilt
+6/-1 °

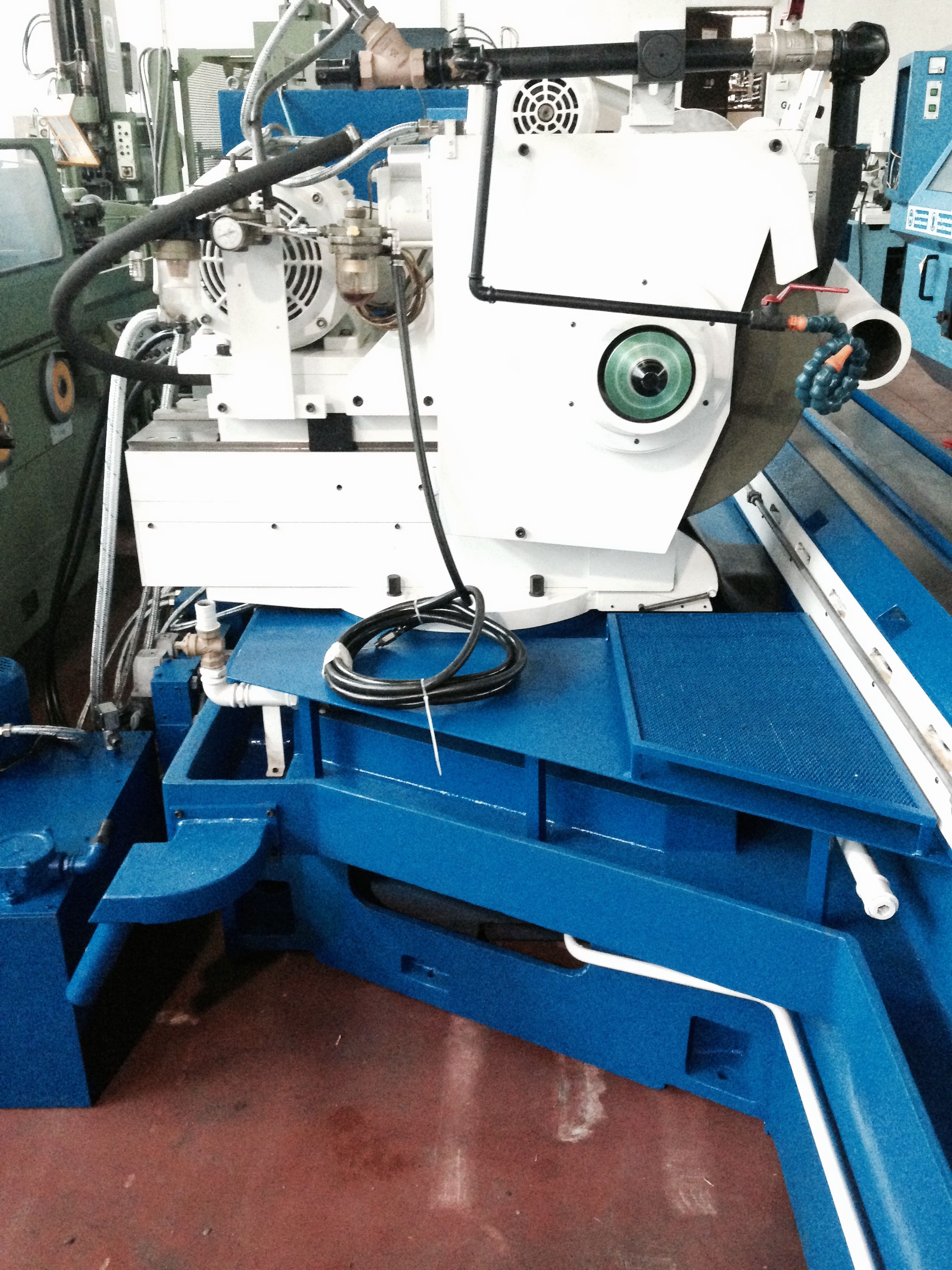

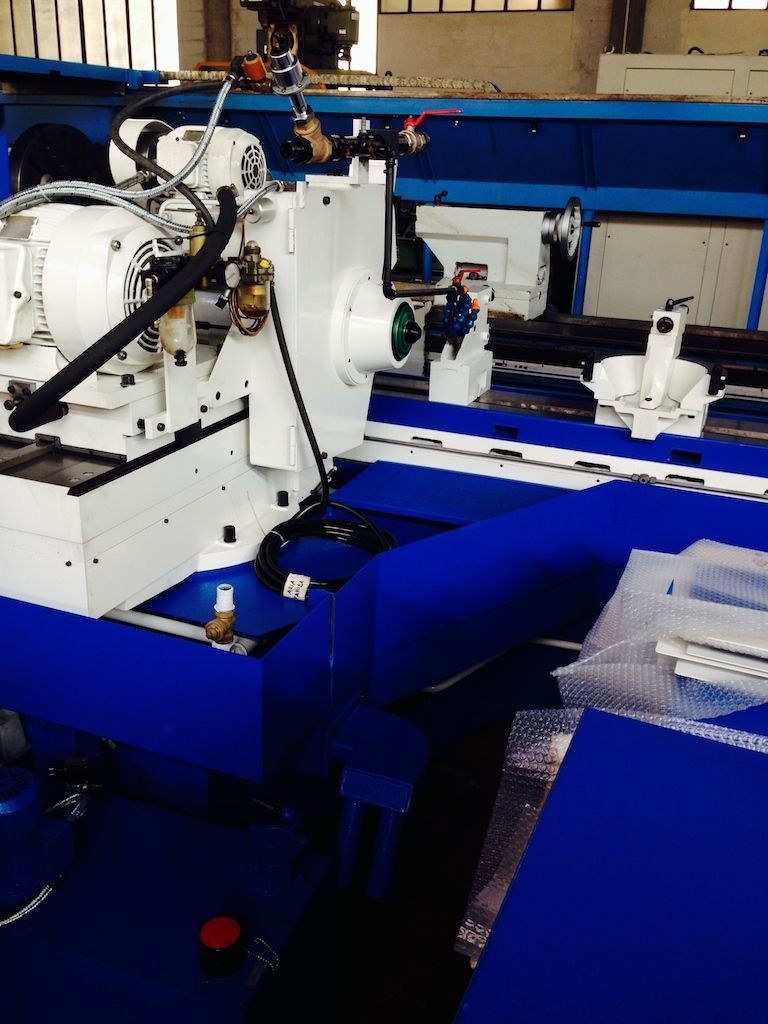

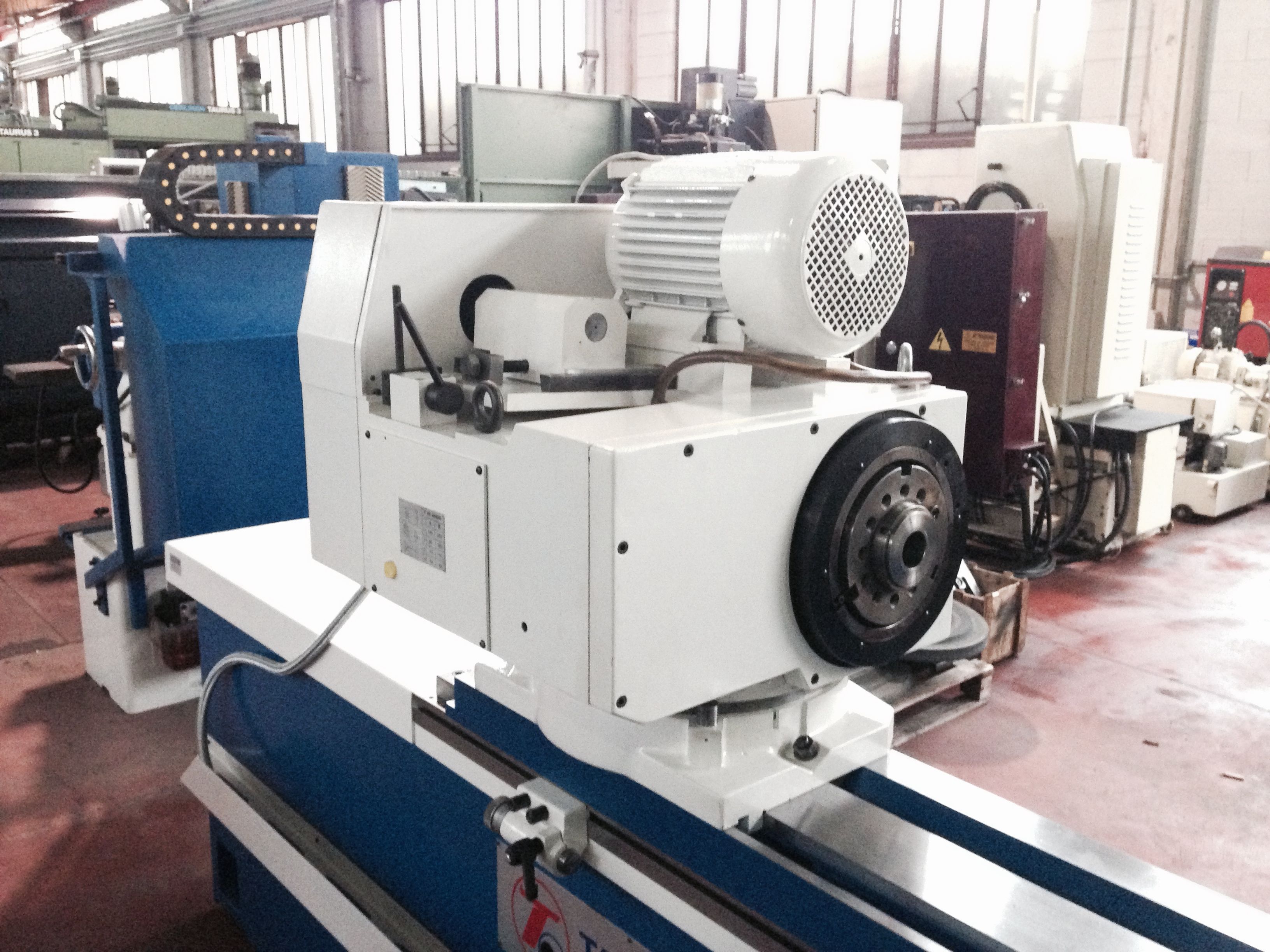

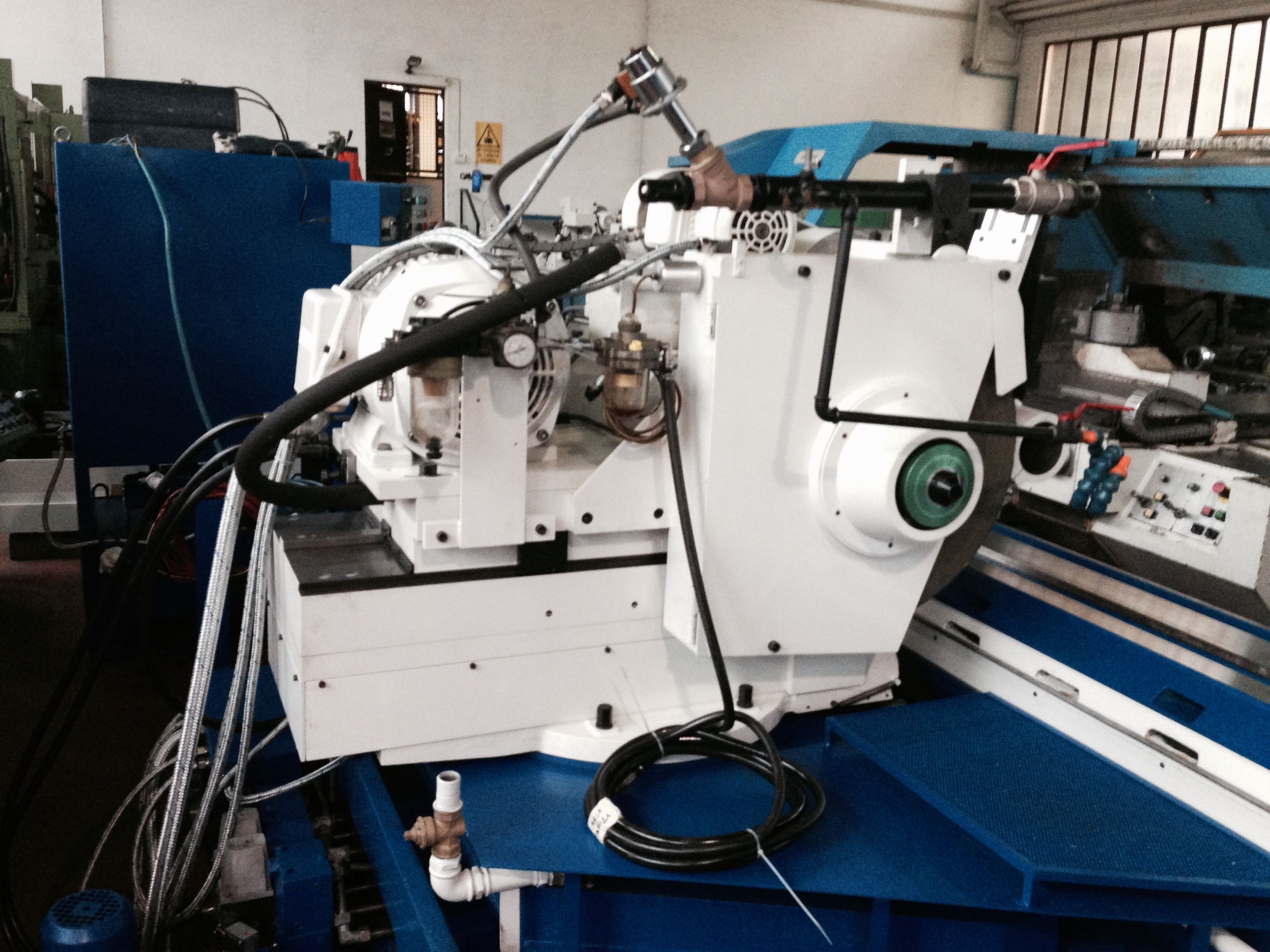

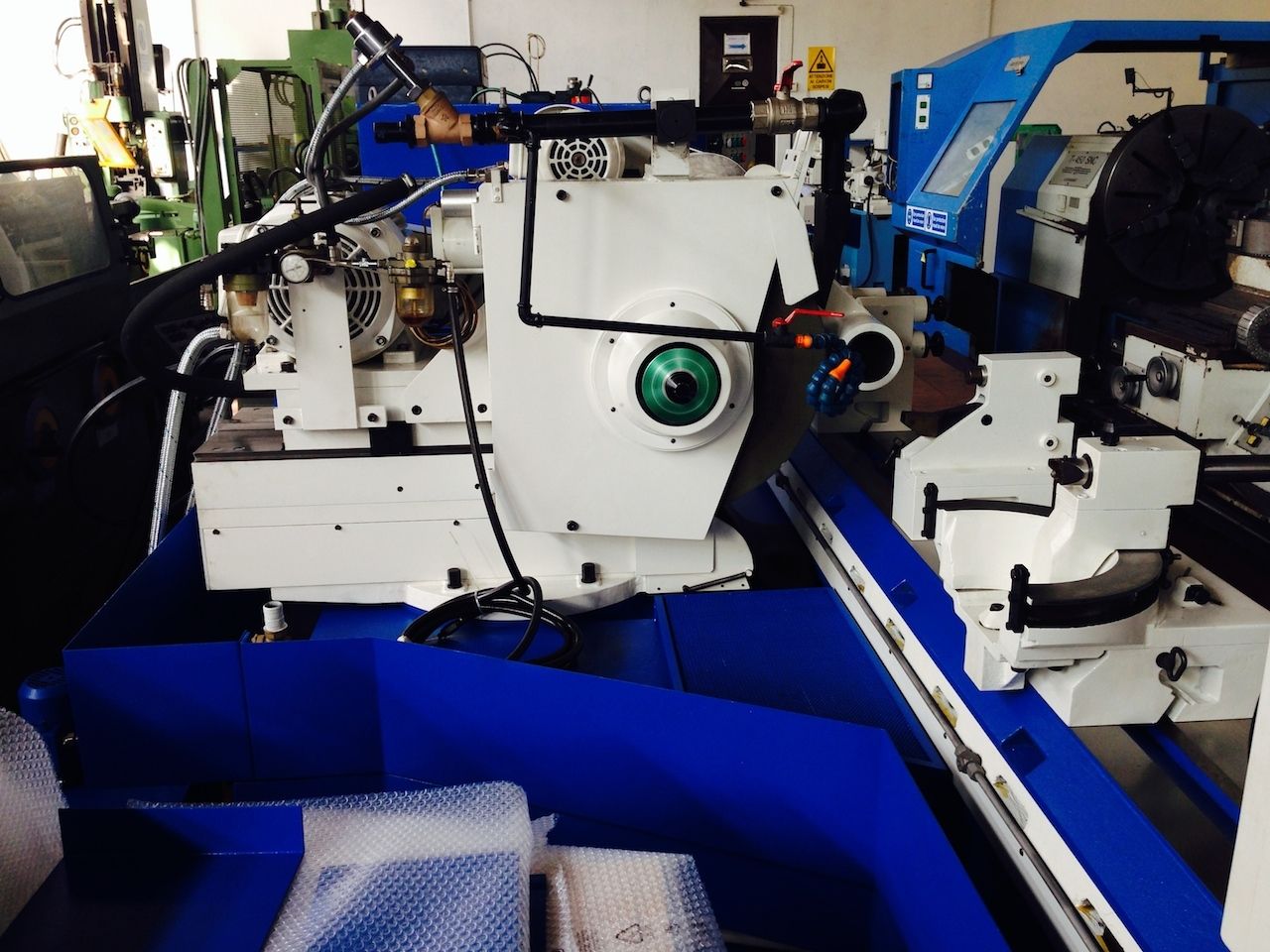

WHEELHEAD
Accuracy (B axis)
+/-90 °
External spindle power
11 Kw
Support
HYDRODINAMICO
External spindle speed
1030-1260 Rpm

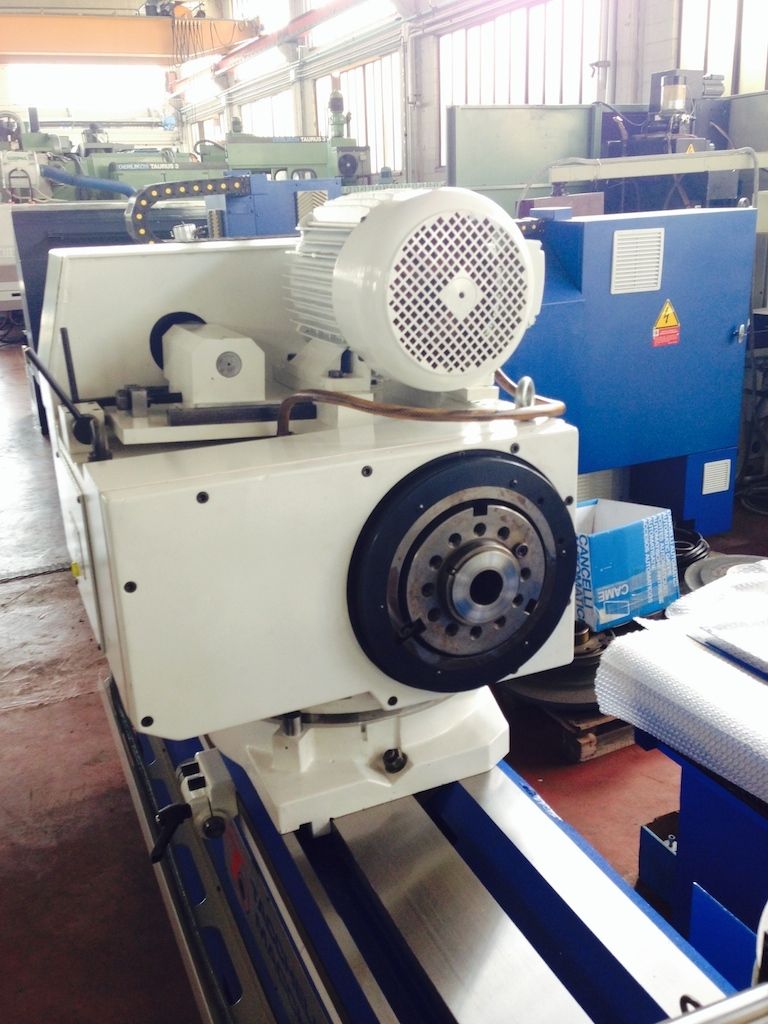

WORKPIECE HEAD
Rotating speed
10-280 Rpm
Tilt
0-90 °
LEFT WHEEL
Max wheel diameter
610X150X203 mm24,02X5,91X7,99 in
FEEDS
Automatic Vertical
SI mm/minSI ipm
EXTRA
Total power supply
22 Kw
Machine total weight
9000 Kg
Floor space
6000X1850X1700 mm236,22X72,83X66,93 in
Open steadies
SI
Closed steadies
SI
Digital read out (DRO)
SI
Manual dresser
Yes

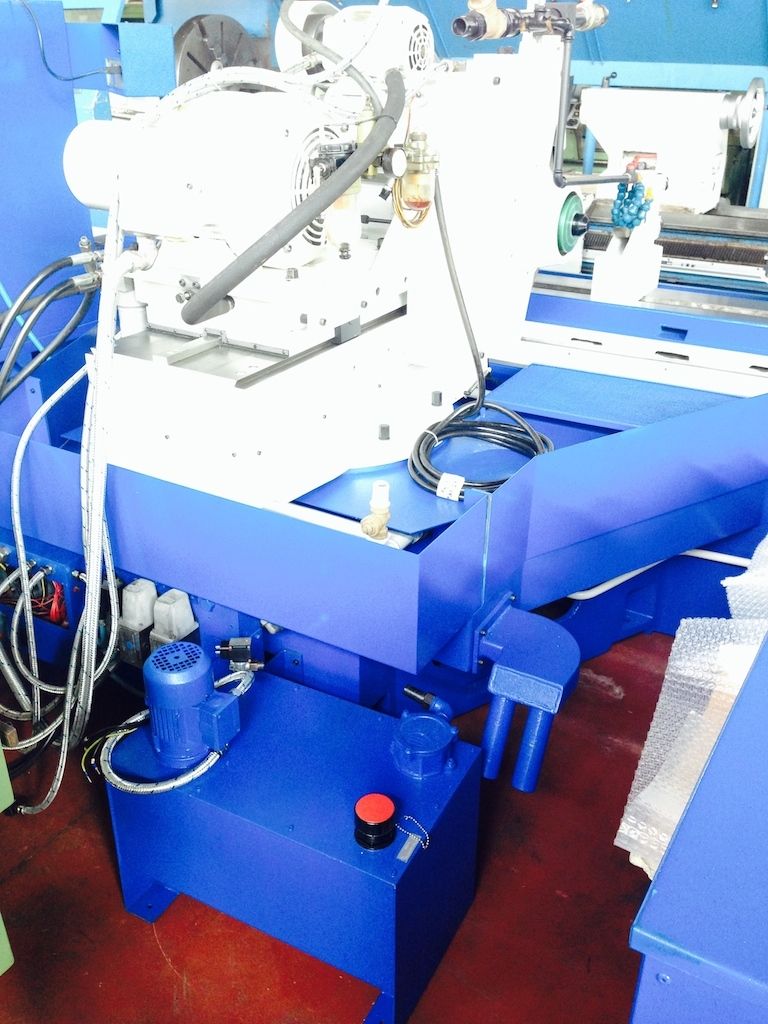

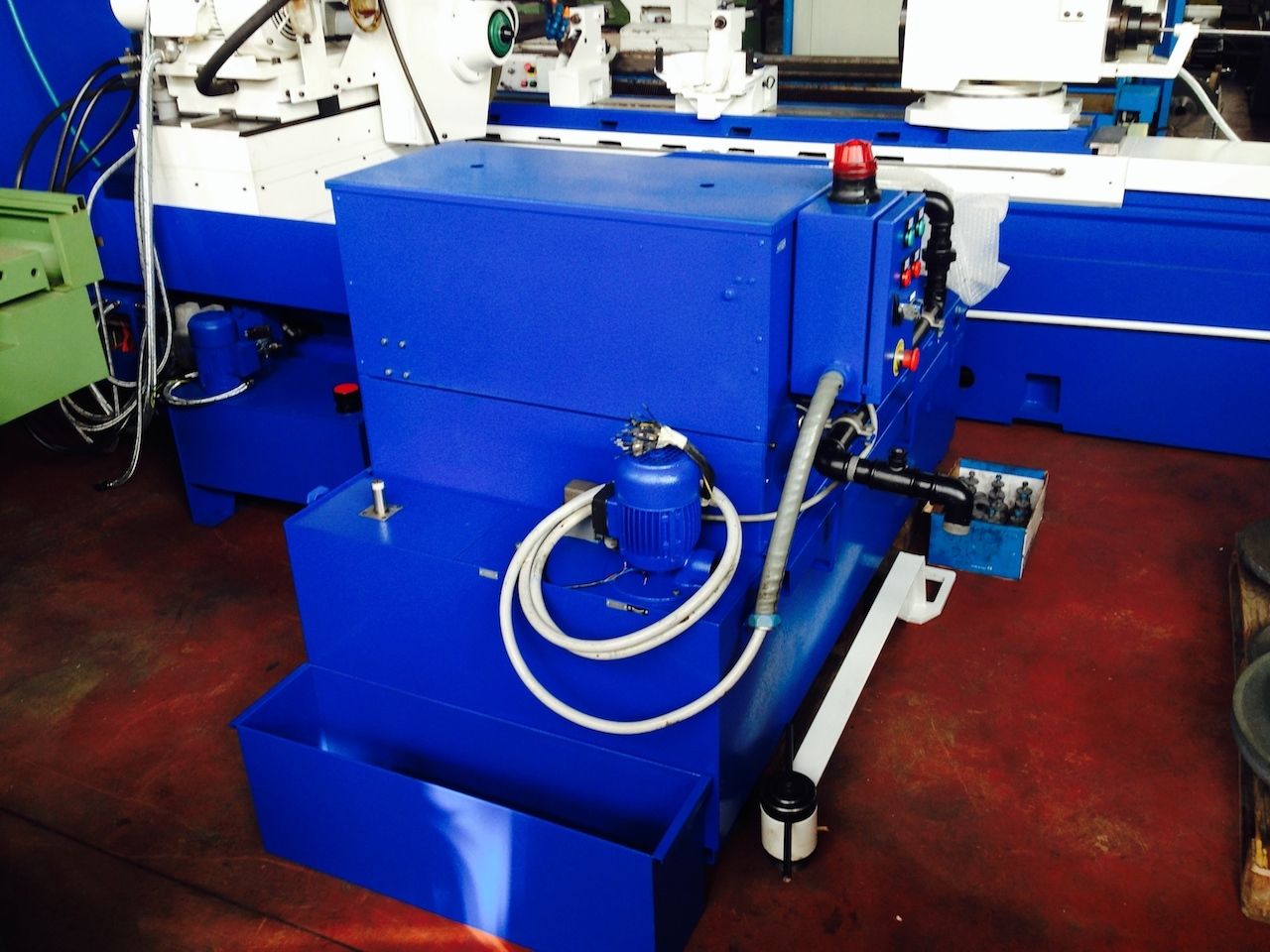

Filtration unit
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
FRONTALE CON MICRO DI EMERGENZA
Availability
PRONTA
Available in stock
SI
Available under power
SI
Relevant updates made on the machine
RICONDIZIONAMENTO 2014
