Category
Grinding Machine
Type
ID/OD
Made
Model
2128 UMP
Capacity
550x2100 mm21,65x82,68 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
2100 mm82,68 in
Centres height
280 mm11,02 in
Longitudinal (Z)
2100 mm82,68 in
Cross (X)
300 mm11,81 in
Max grinding lenght
2100 mm82,68 in
Max grinding diameter
550 mm21,65 in
Max internal depth
900 mm35,43 in

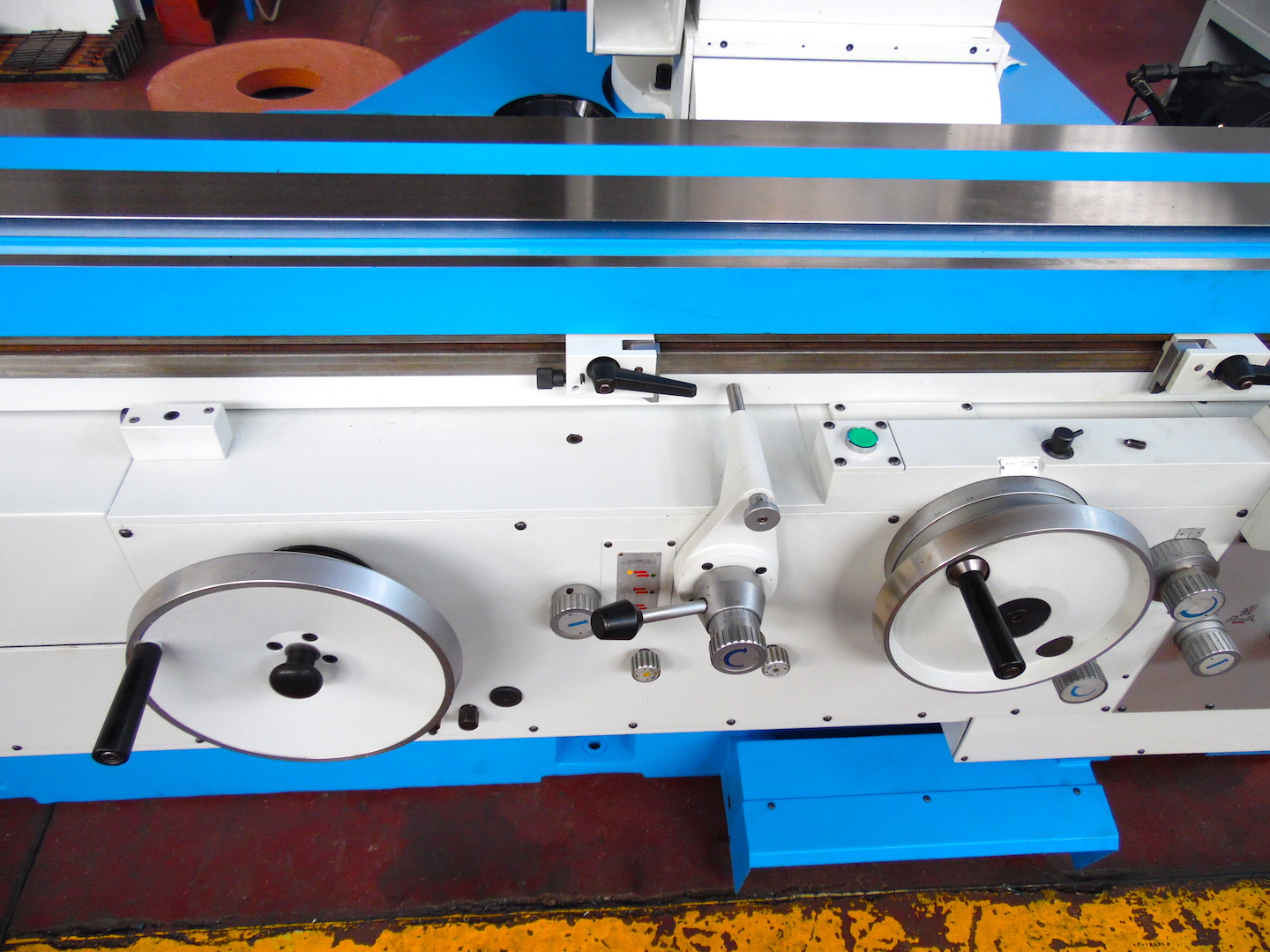

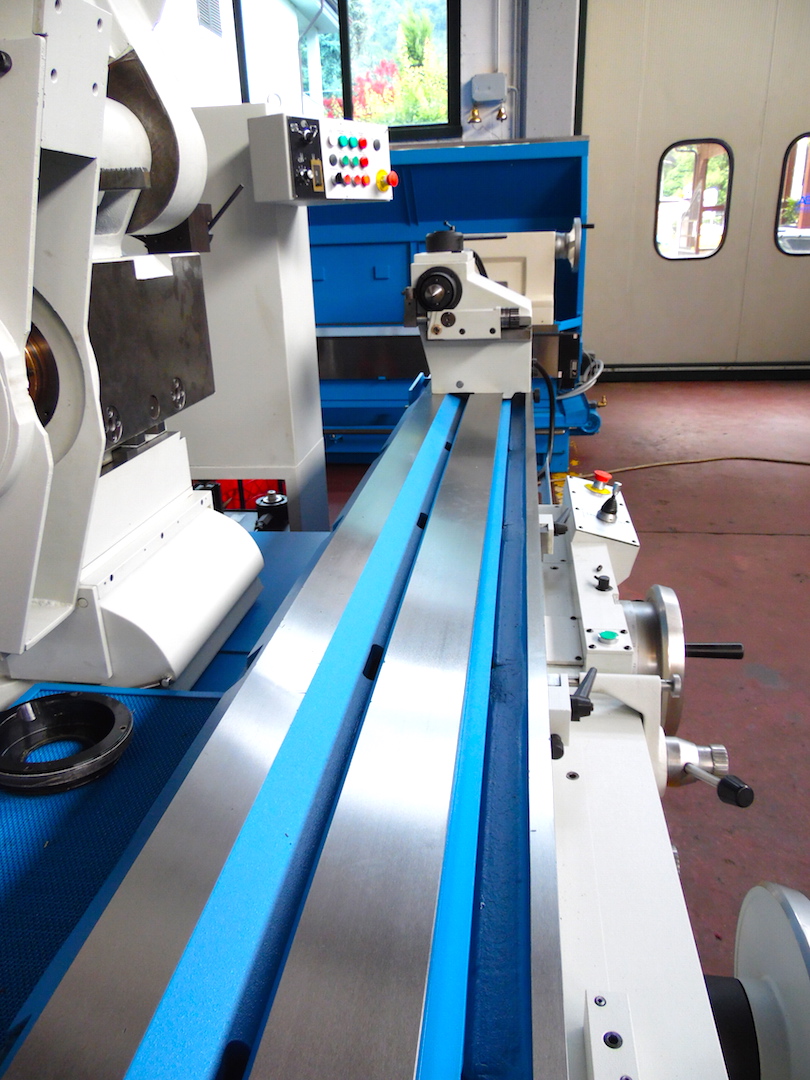

TABLE
Stroke
4-2100 mm0,16-82,68 in
Cross speed
100-4000 mm/min3,9370-157,4800 ipm
Max workpiece weight
900 Kg
Tilt
+6/-2 °

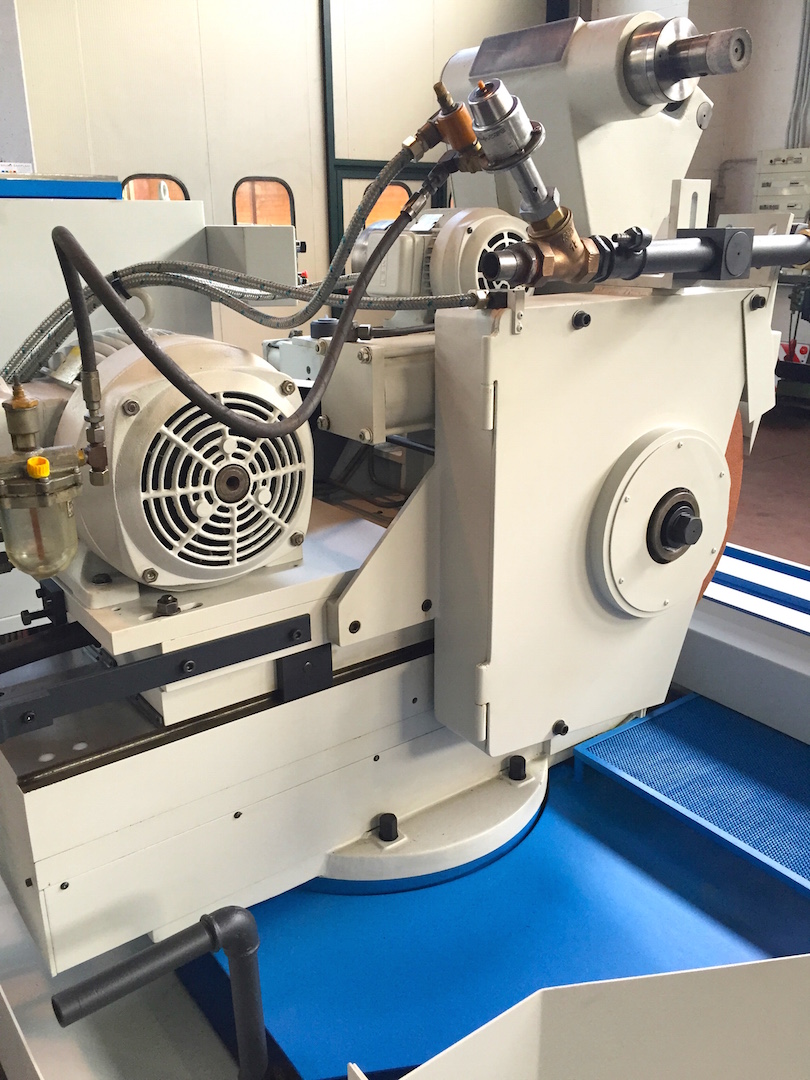

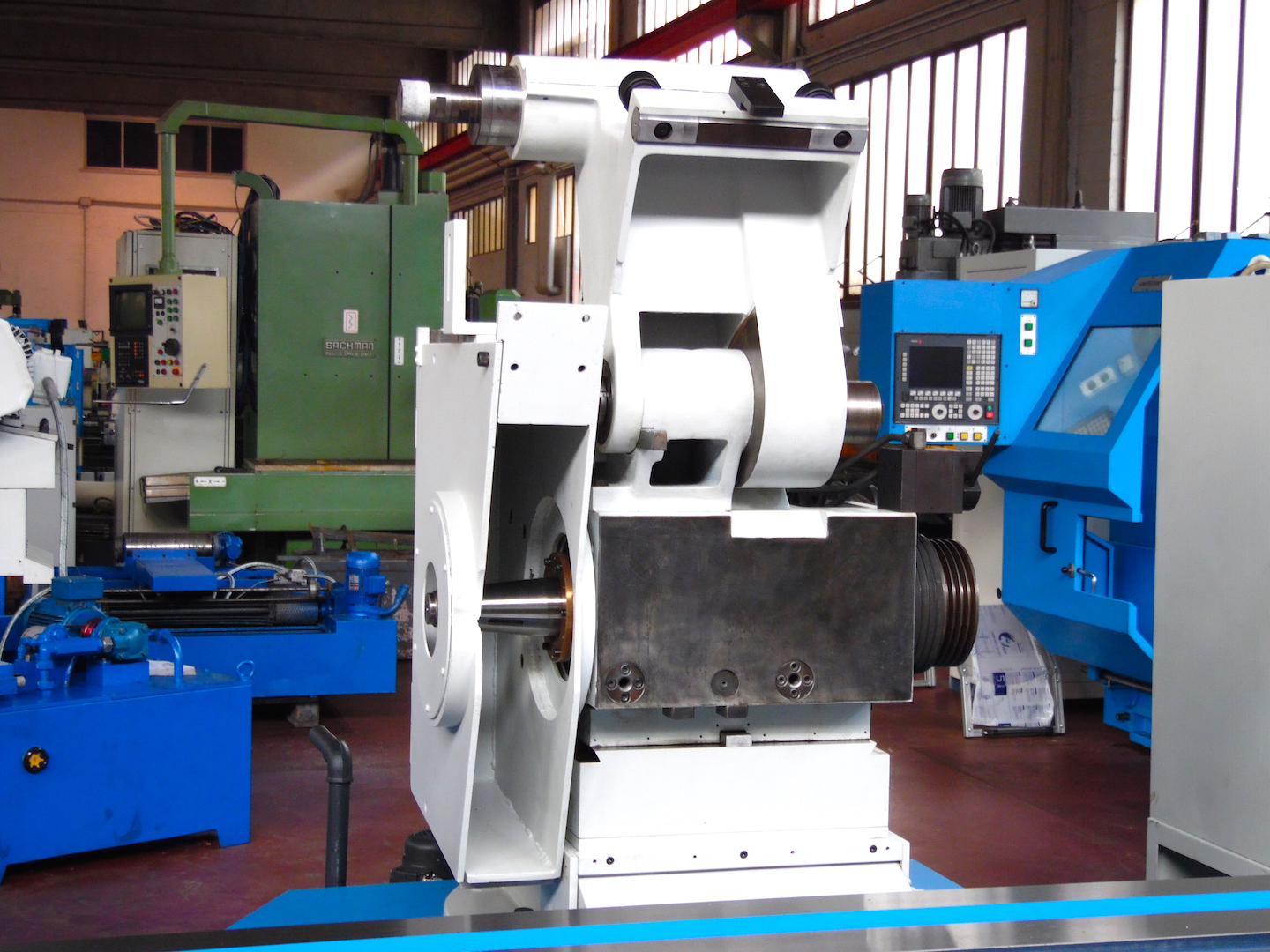

WHEELHEAD
External spindle power
11,03 Kw
External spindle speed
1030-1260 Rpm
Support
idrodinamico
Air cut
si
LEFT WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
610 mm24,02 in
Hole diameter
203,2 mm8,00 in

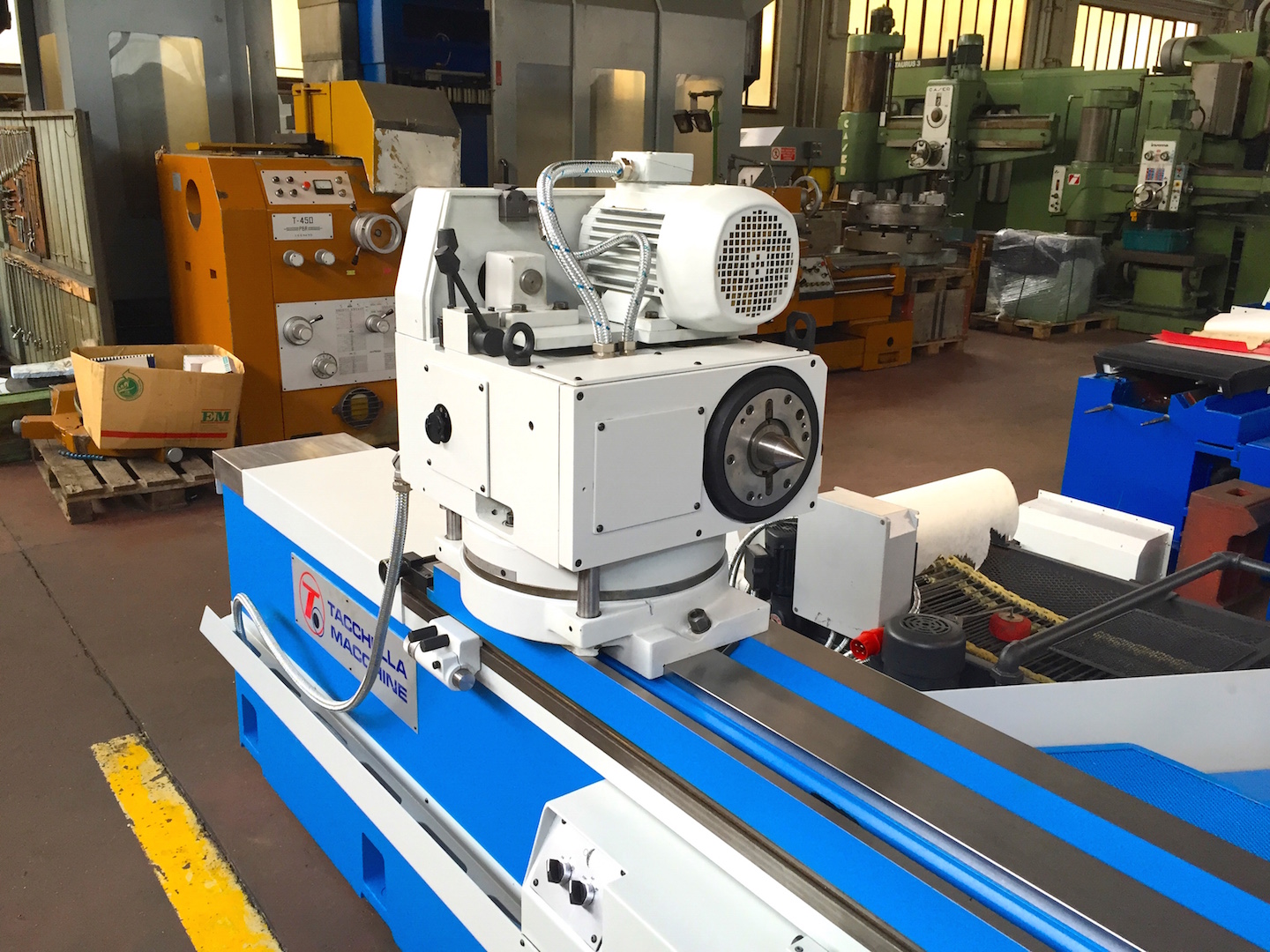

WORKPIECE HEAD
Rotating speed
10-500 Rpm
Tilt
0/90 °
Taper
MK5

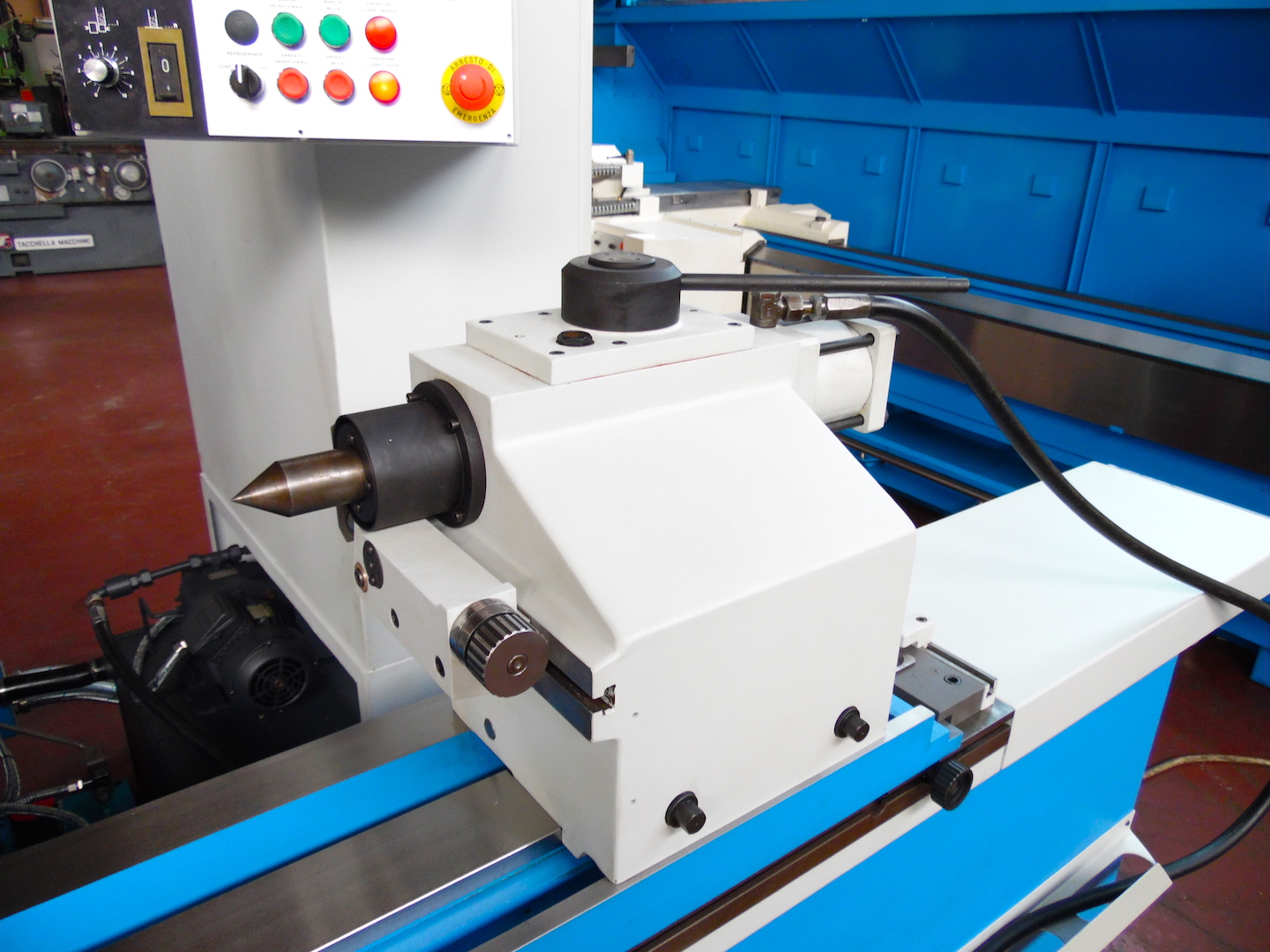

TAILSTOCK
Quill stroke
40 mm1,57 in
Taper
MK5
EXTRA
Total power supply
14,5 Kw
Machine total weight
8100 Kg
Floor space
7540x2300x1850 mm296,85x90,55x72,83 in

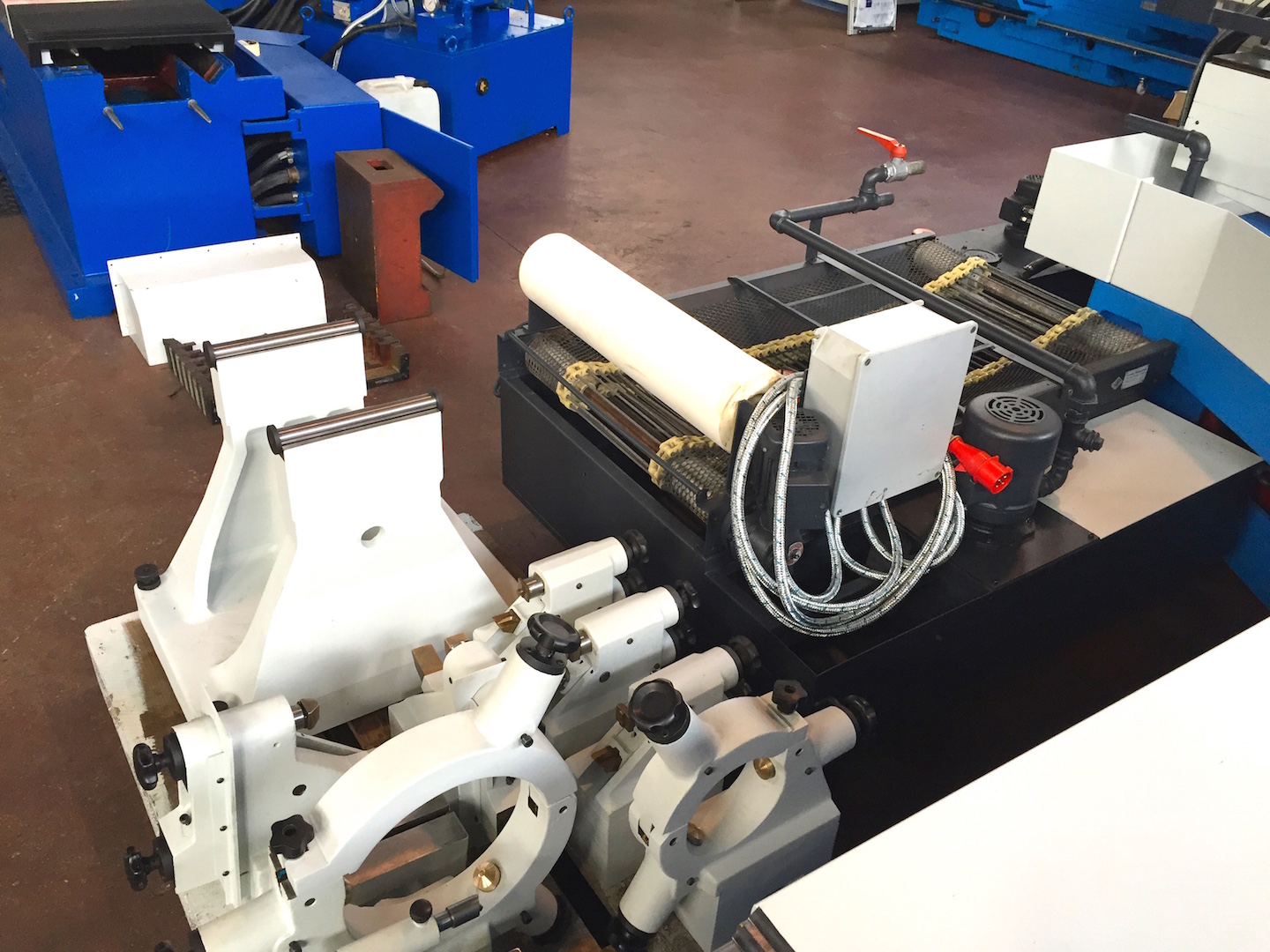

Open steadies
4
Closed steadies
2

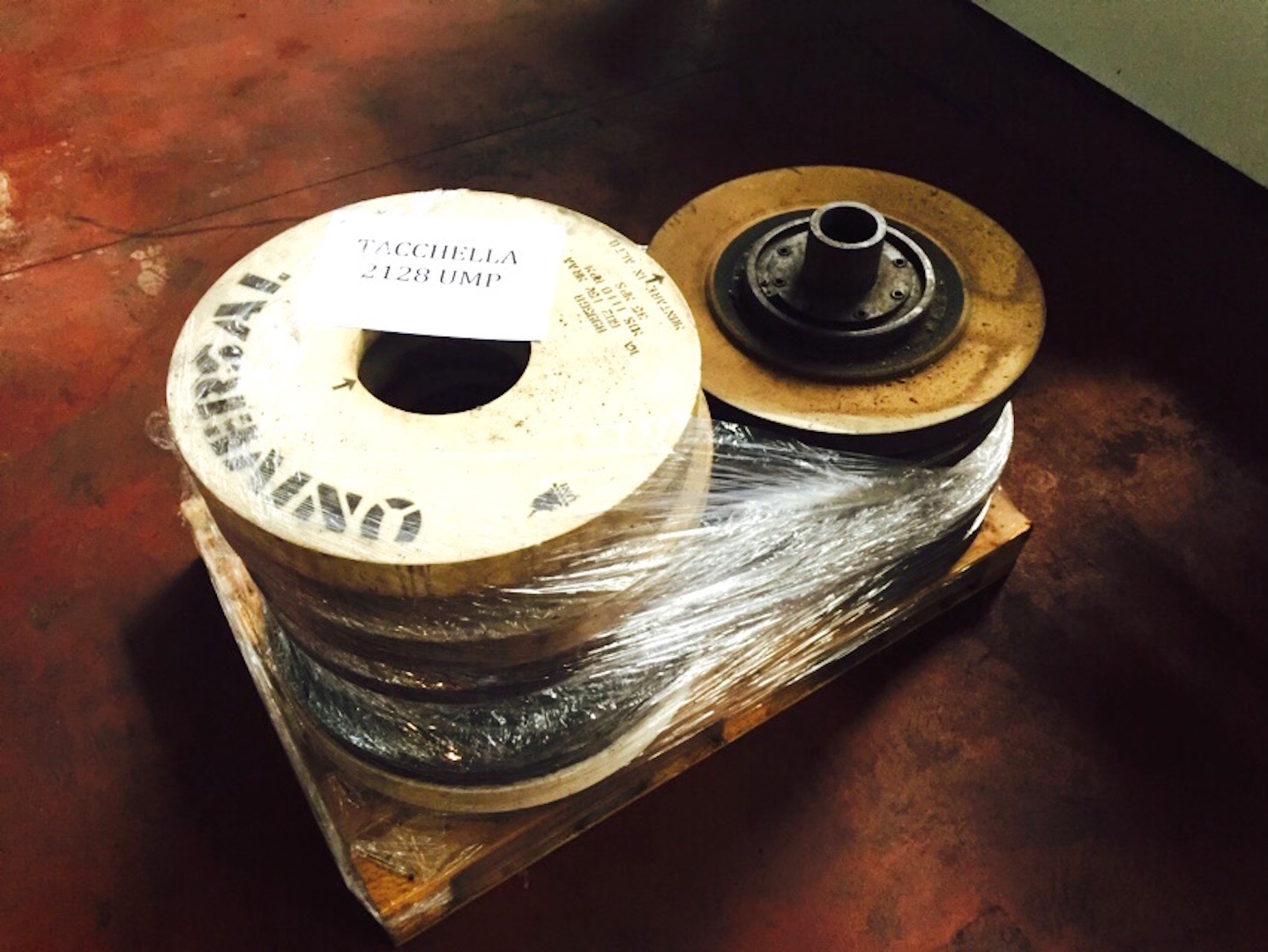

Tooling included
apparecchio per interni, bilanciatore, vasca filtro a carta, varie mole e flange
Wheel balancer
Yes
Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Digital read out (DRO)
disponibile su richiesta
Relevant updates made on the machine
revisione meccanica completa, riverniciatura a spruzzo completa
