Category
Grinding Machine
Type
ID/OD
Made

TACCHELLA

Model
1023 UM
Capacity
460X1000 mm18,11X39,37 in

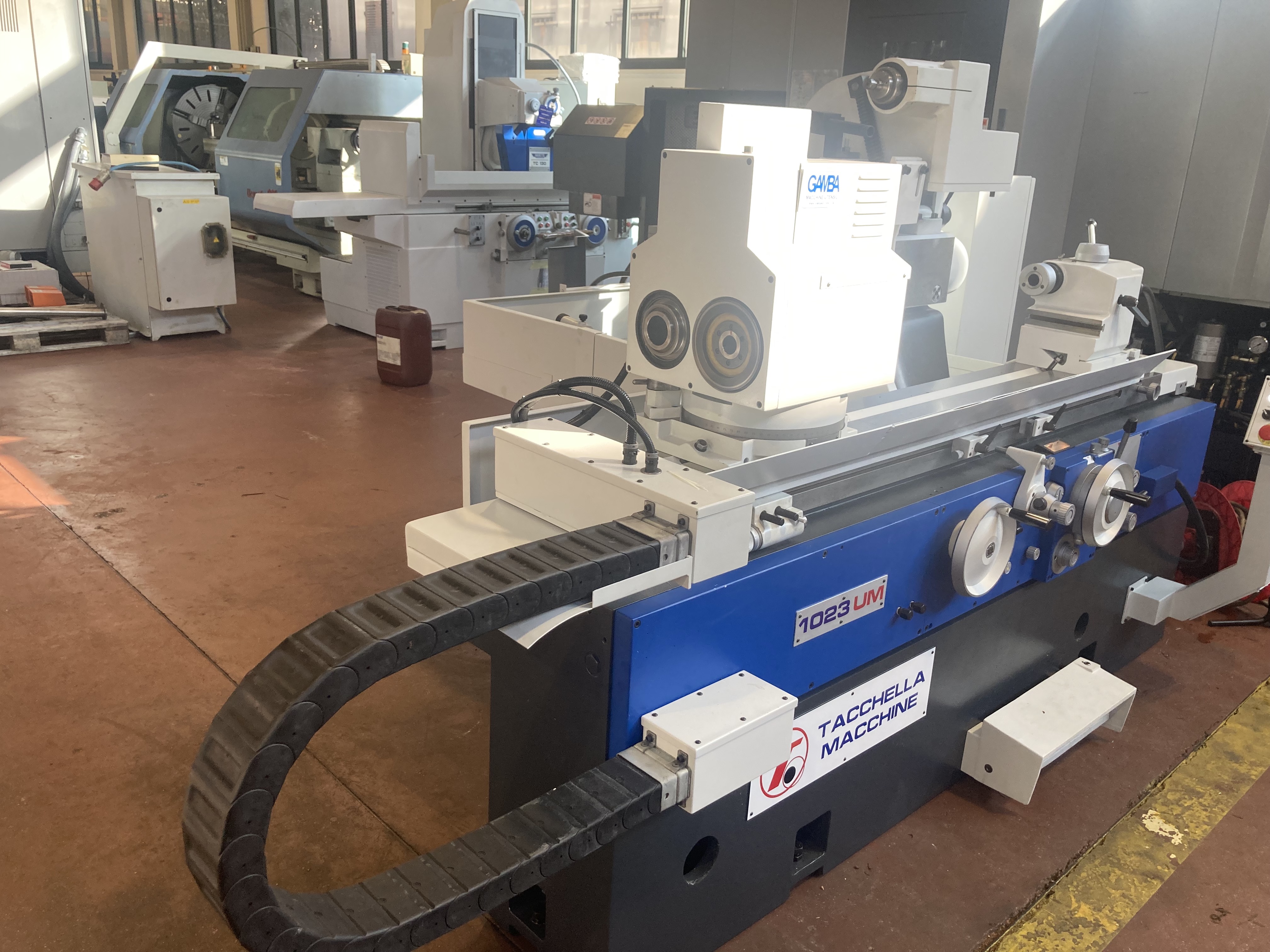

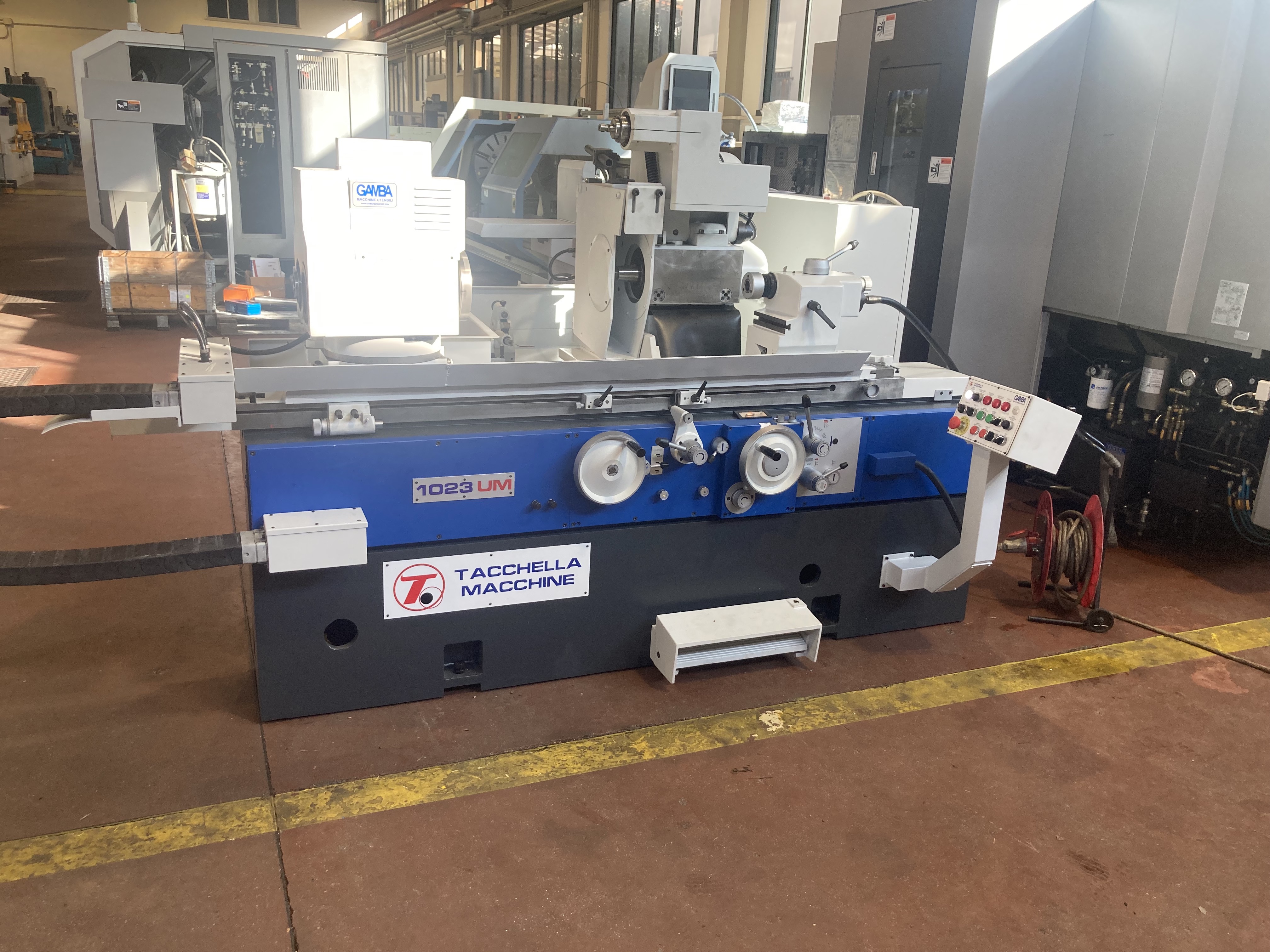

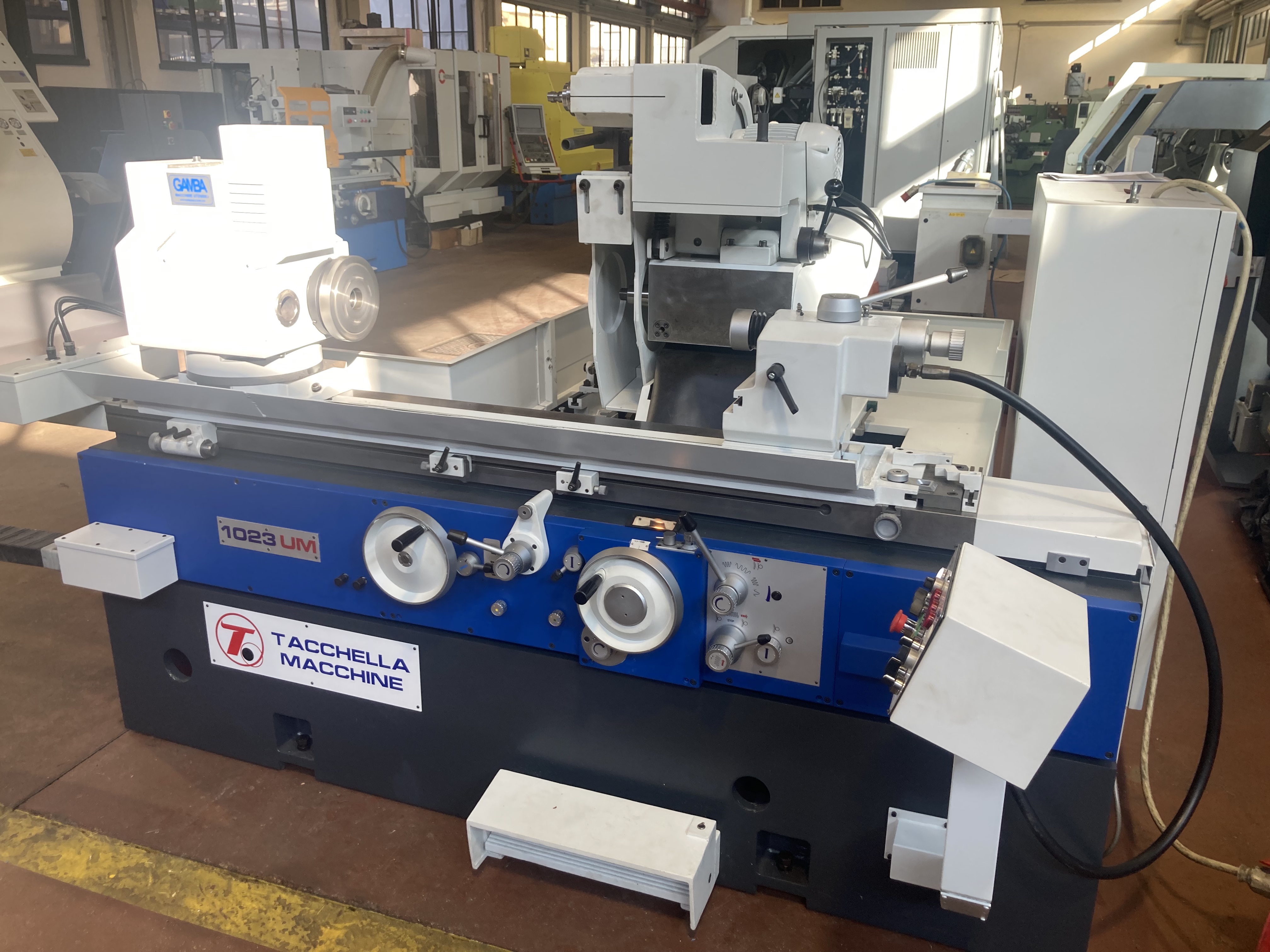

TACCHELLA 1023 UM
All the machines are available subject to prior sale
Data sheet
Enable notifications

Technical specifications

Metric Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
230 mm9,06 in
Max grinding diameter
460 mm18,11 in
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in

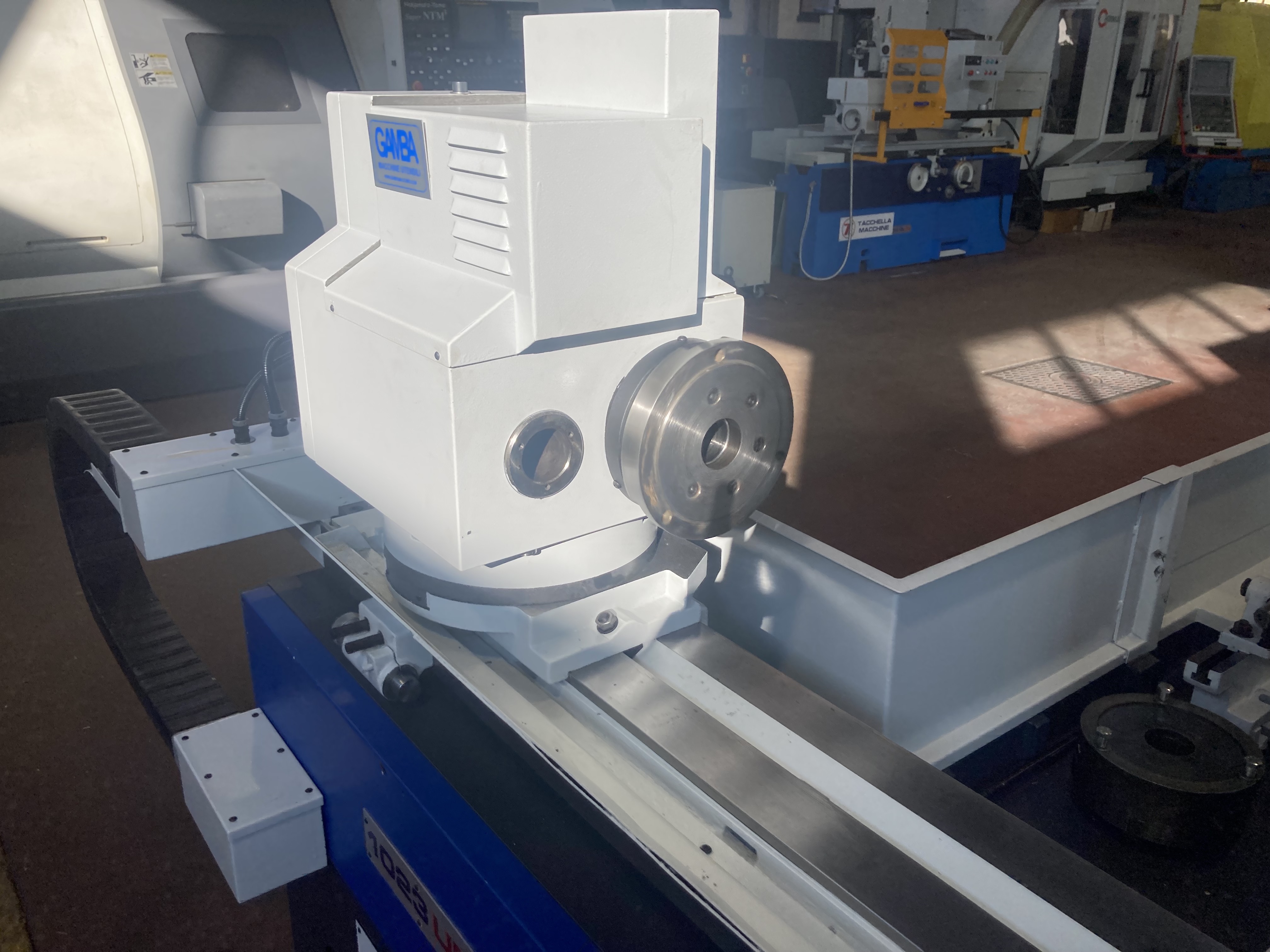

WORKPIECE HEAD
Notes
DOPPIO MANDRINO GIREVOLE
Spindle power
1,1 Kw
Rotating speed
16/500 Rpm
Speed regulation
CONTINUA
Tilt
0/90 °
Taper
MK4

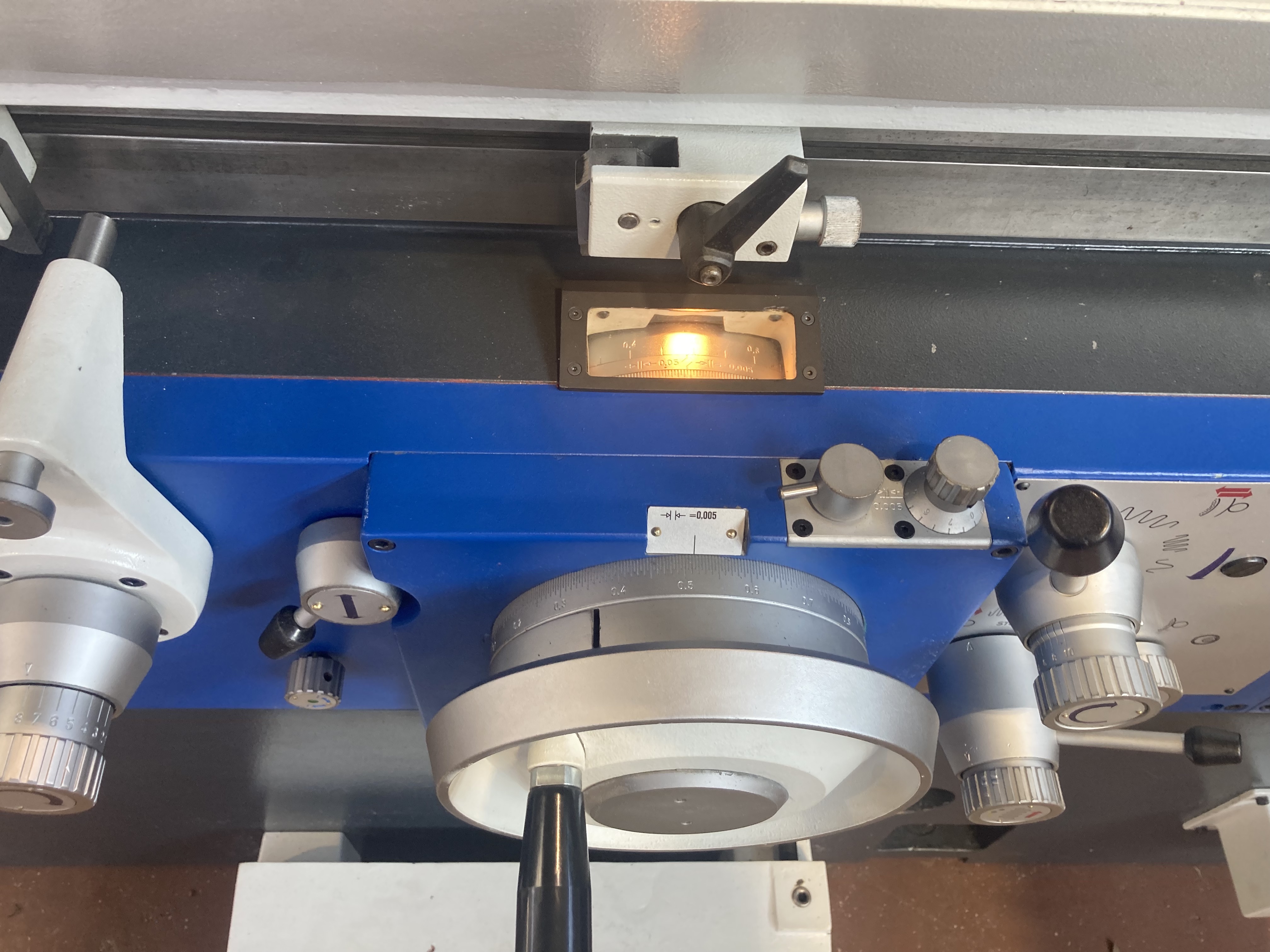

TABLE
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
+/-9 °

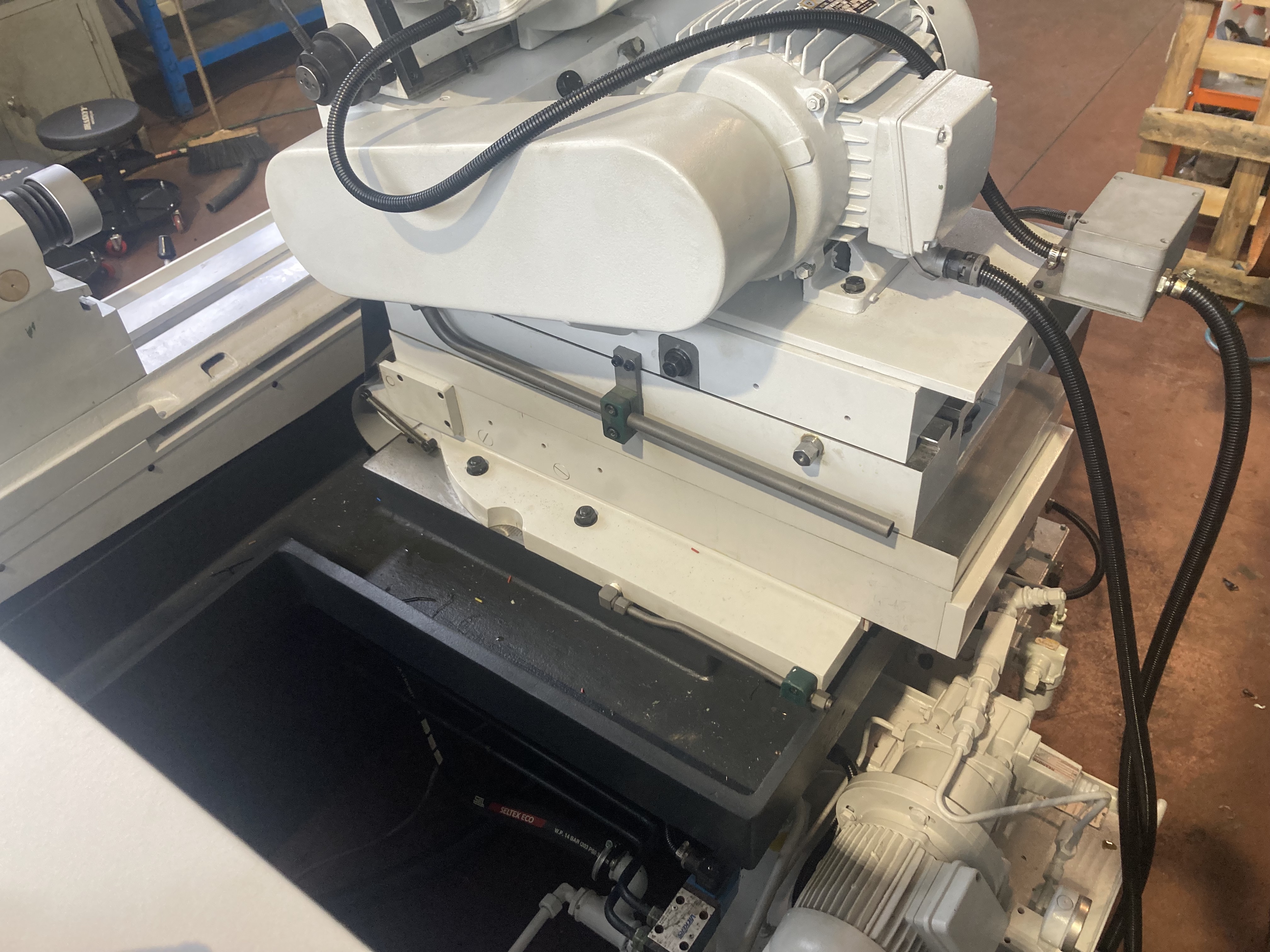

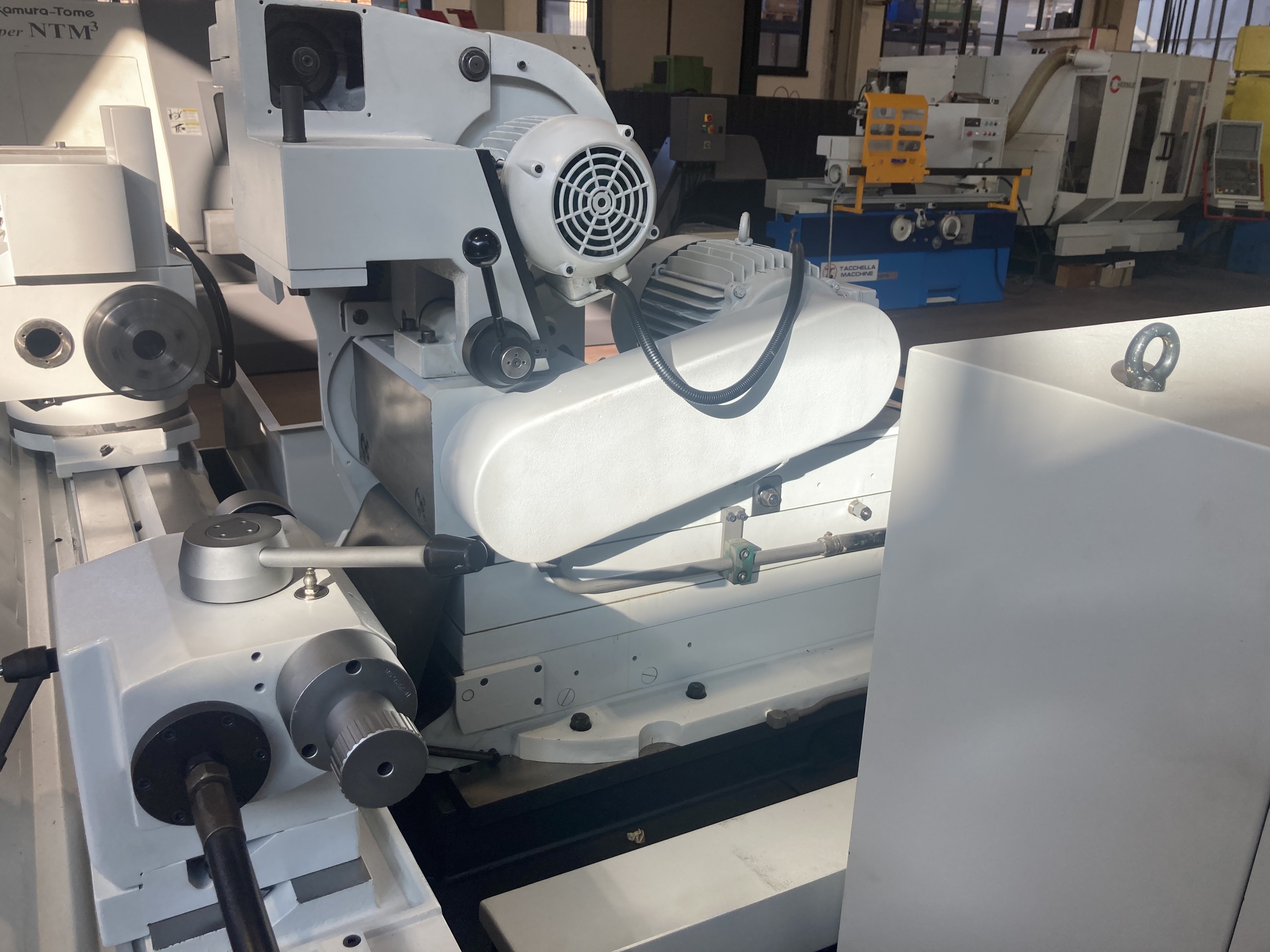

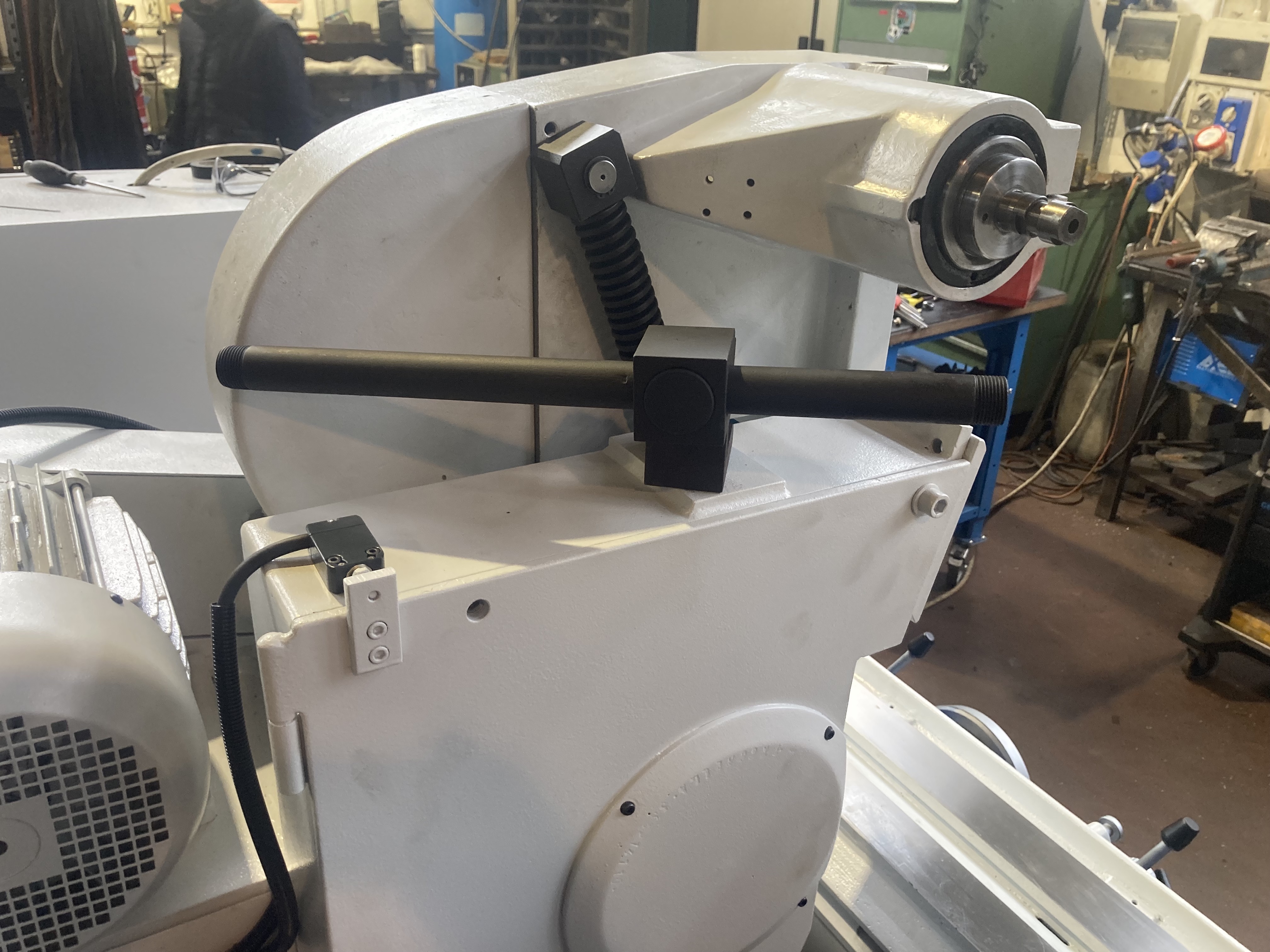

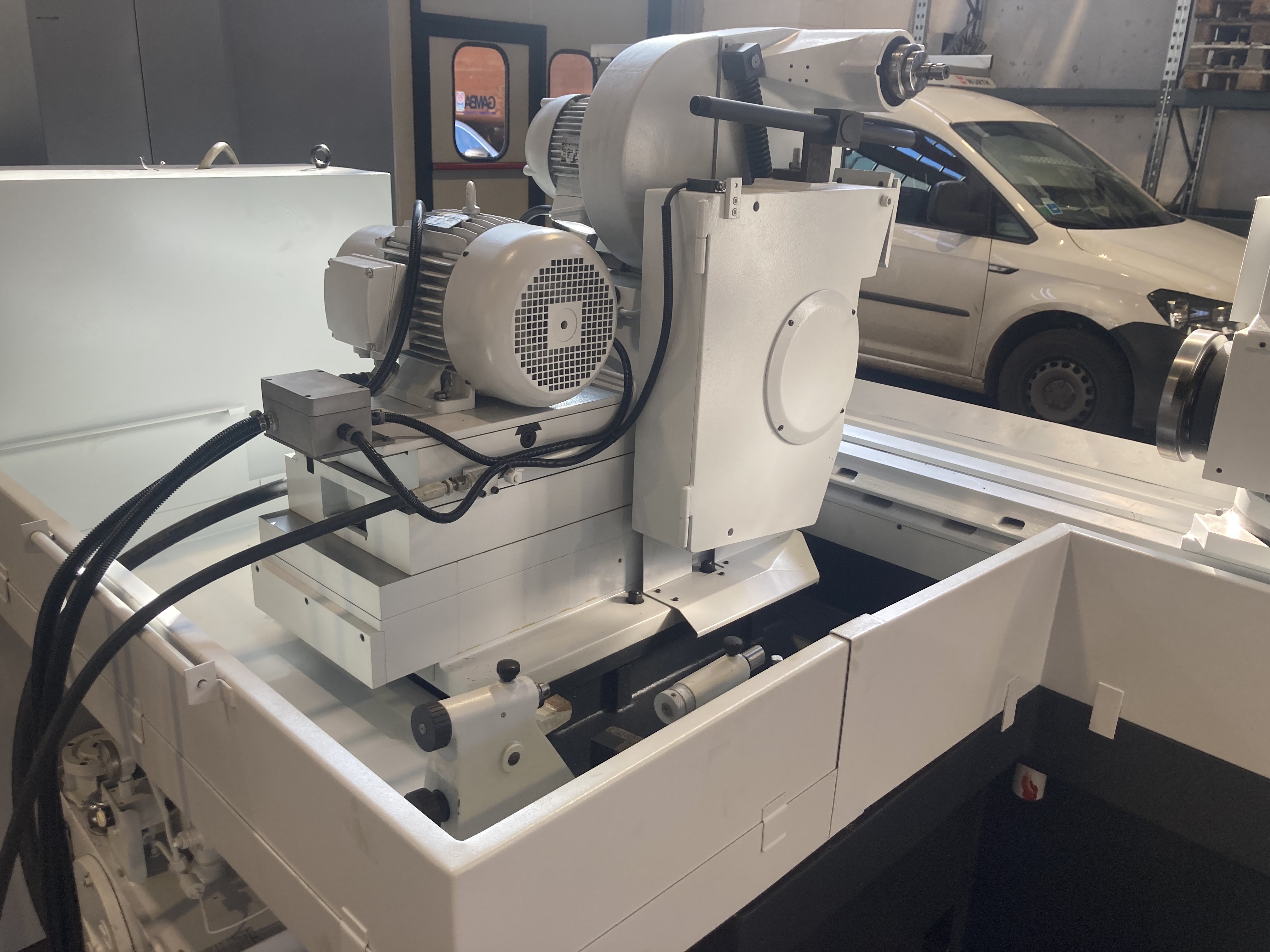

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm
Internal spindle power
1,5 Kw

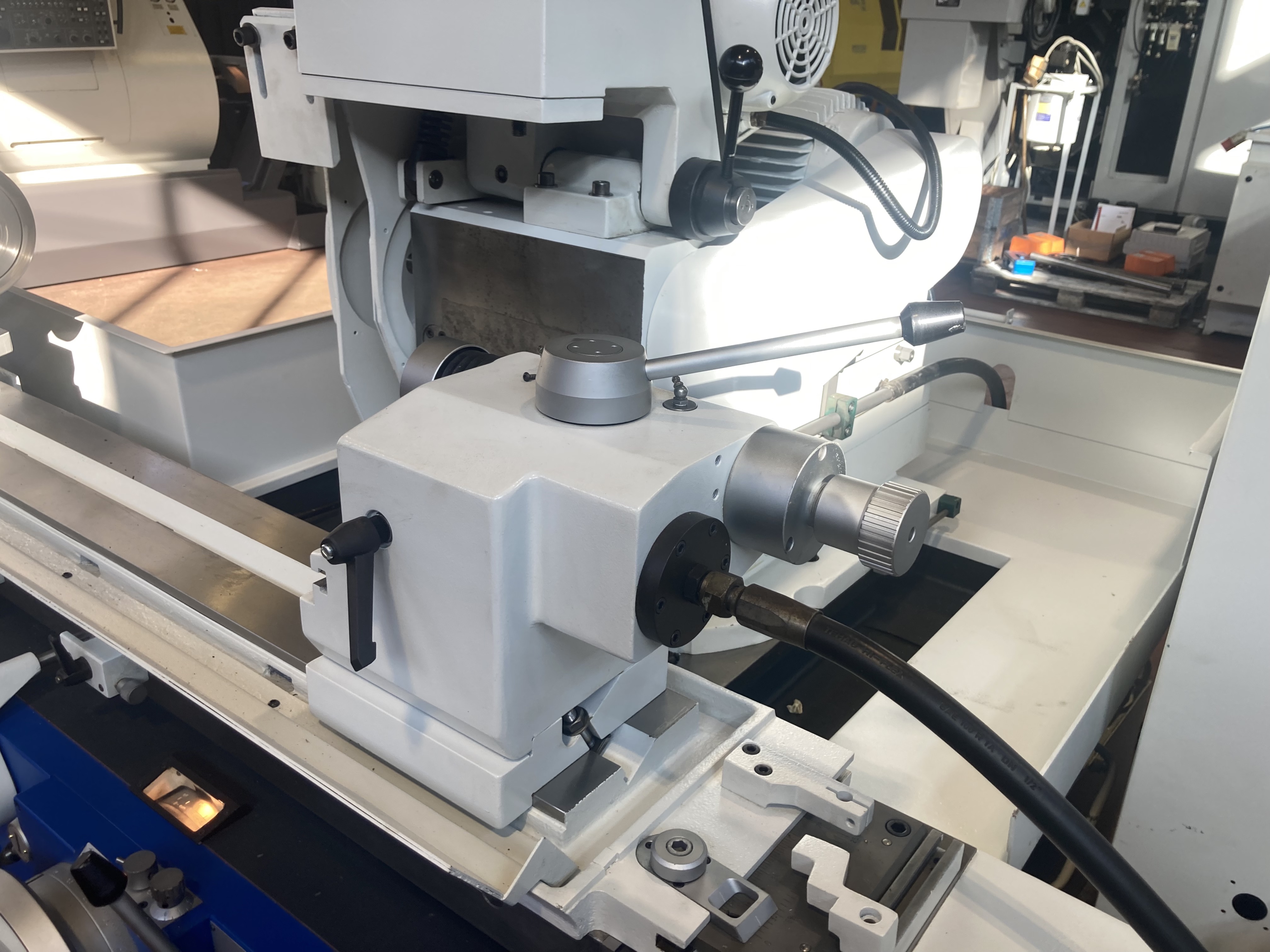

TAILSTOCK
Quill diameter
35 mm1,38 in
Taper
MK4
EXTRA
Total power supply
9,75 Kw
Machine total weight
4100 Kg

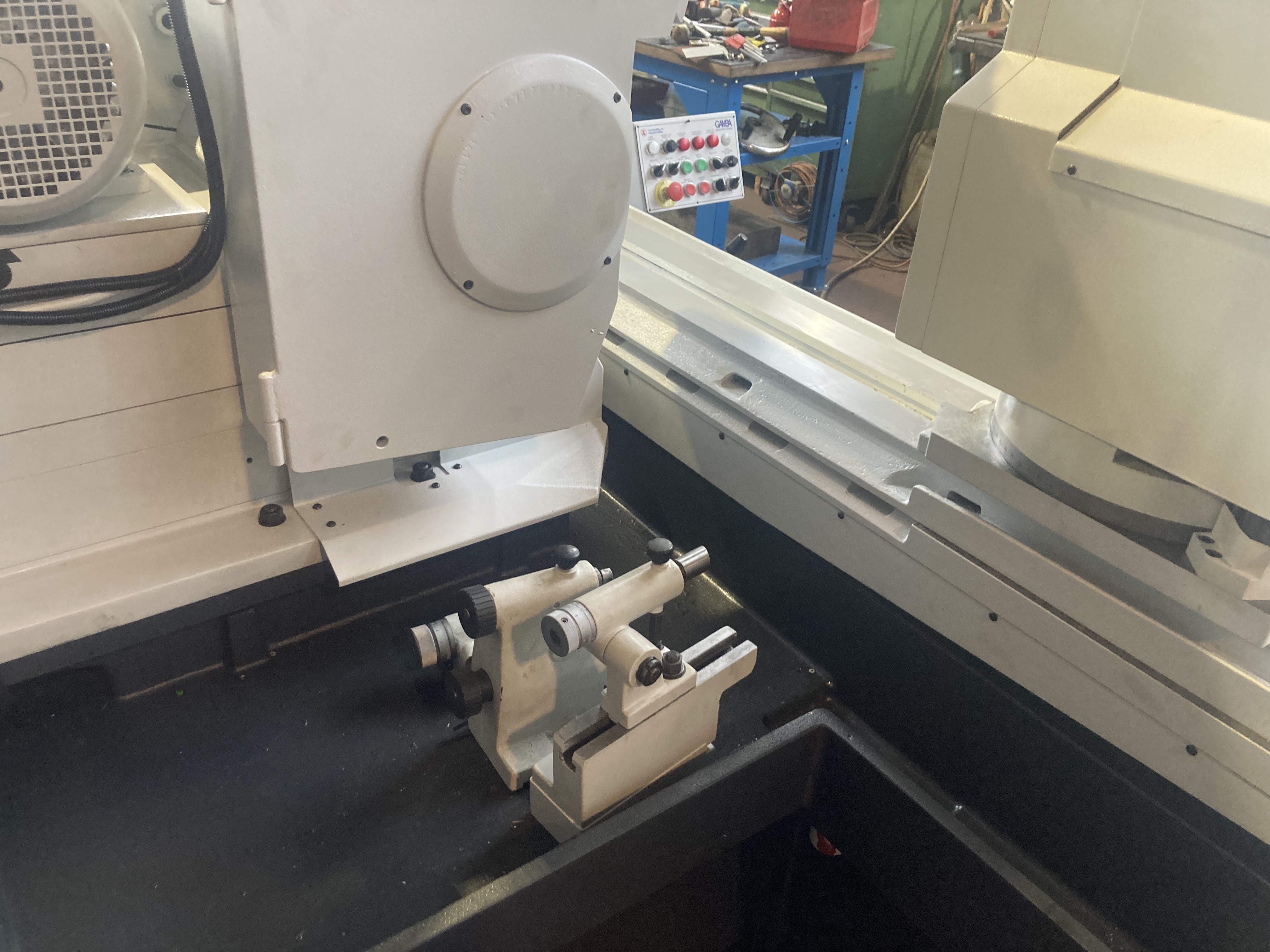

Open steadies
SI
Maintenance & Use books
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
