Category
Grinding Machine
Type
ID/OD
Made
Model
1018 UM
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Cross (X)
310 mm12,20 in
Max grinding diameter
355 mm13,98 in
Max internal diameter
270 mm10,63 in
Max grinding lenght
1000 mm39,37 in
Longitudinal (Z)
1000 mm39,37 in
Max internal depth
870 mm34,25 in
TABLE
Stroke
4-1000 mm0,16-39,37 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
+/-9° °
FEEDS
Cross
0,1-4 mm/min0,0039-0,1575 ipm

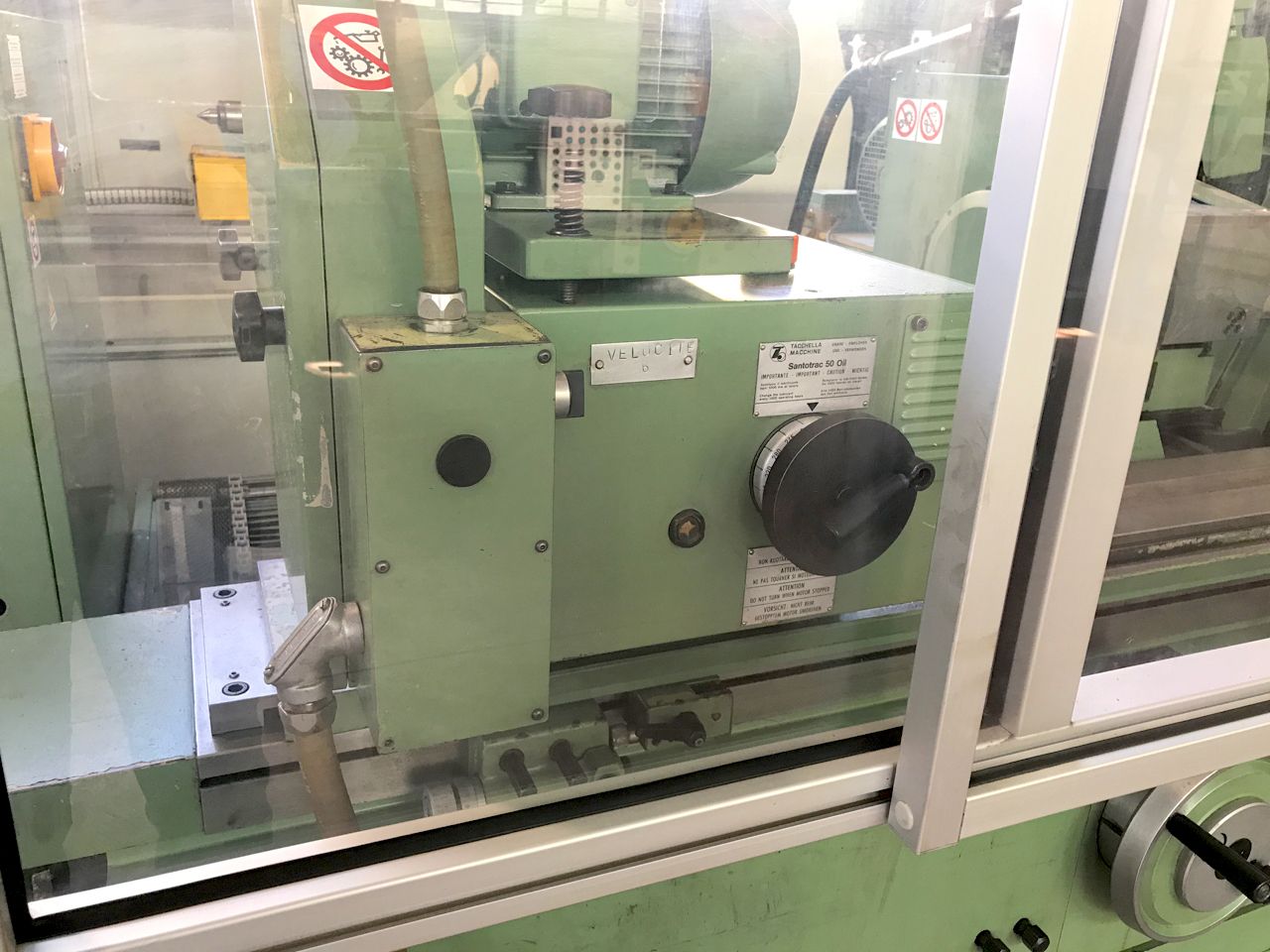

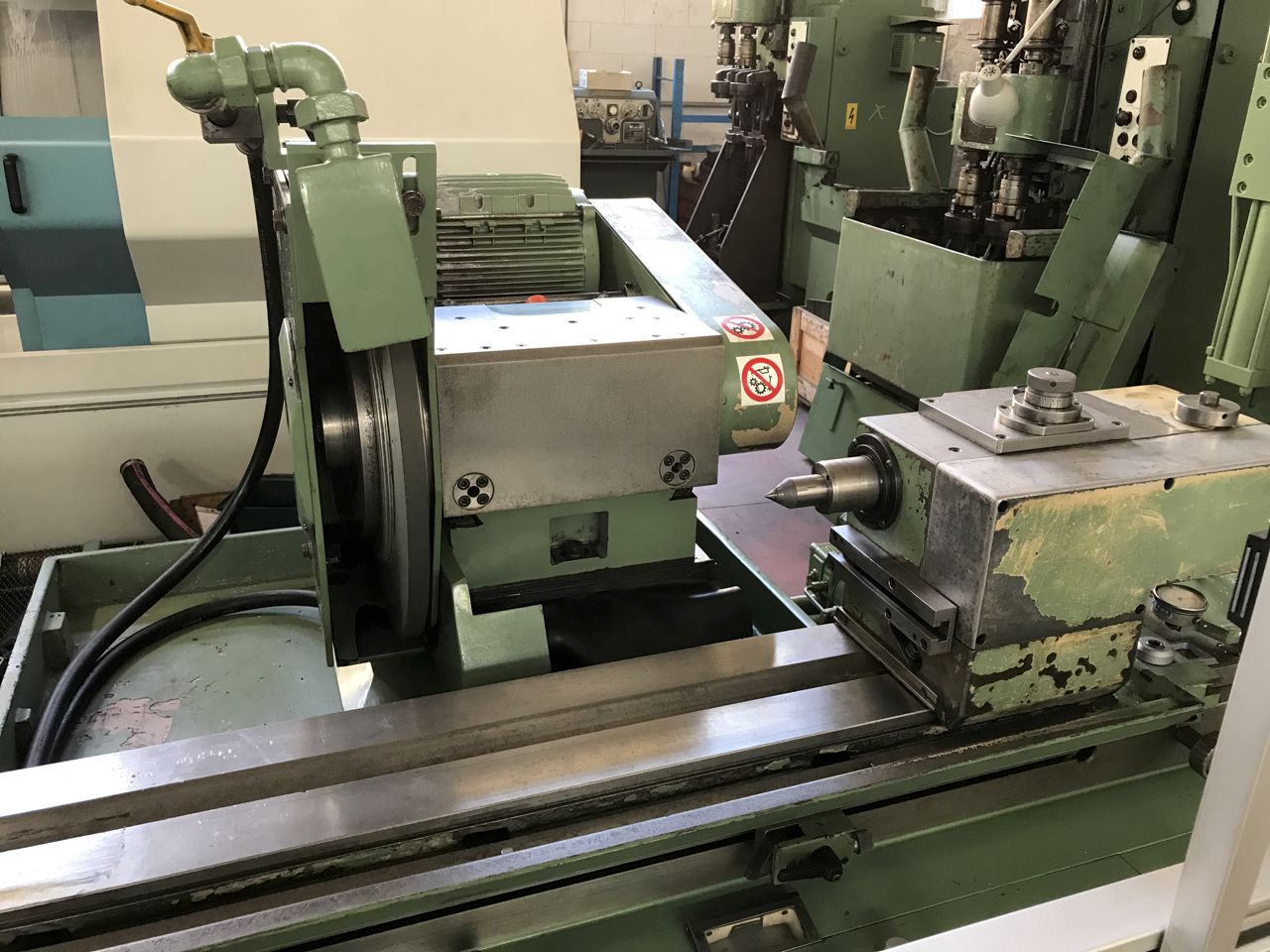

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm
Internal spindle power
1,5 Kw
Notes
inclinabile +/- 45°
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Spindle power
1,1 Kw
Rotating speed
16-500 Rpm
Speed regulation
variazuine progressiva
Tilt
+/- 90 °
Taper
mk4
TAILSTOCK
Quill diameter
35 mm1,38 in
Taper
mk4
Drive
idraulico e manuale
EXTRA
Closed steadies
si
Open steadies
si
Manual dresser
Yes

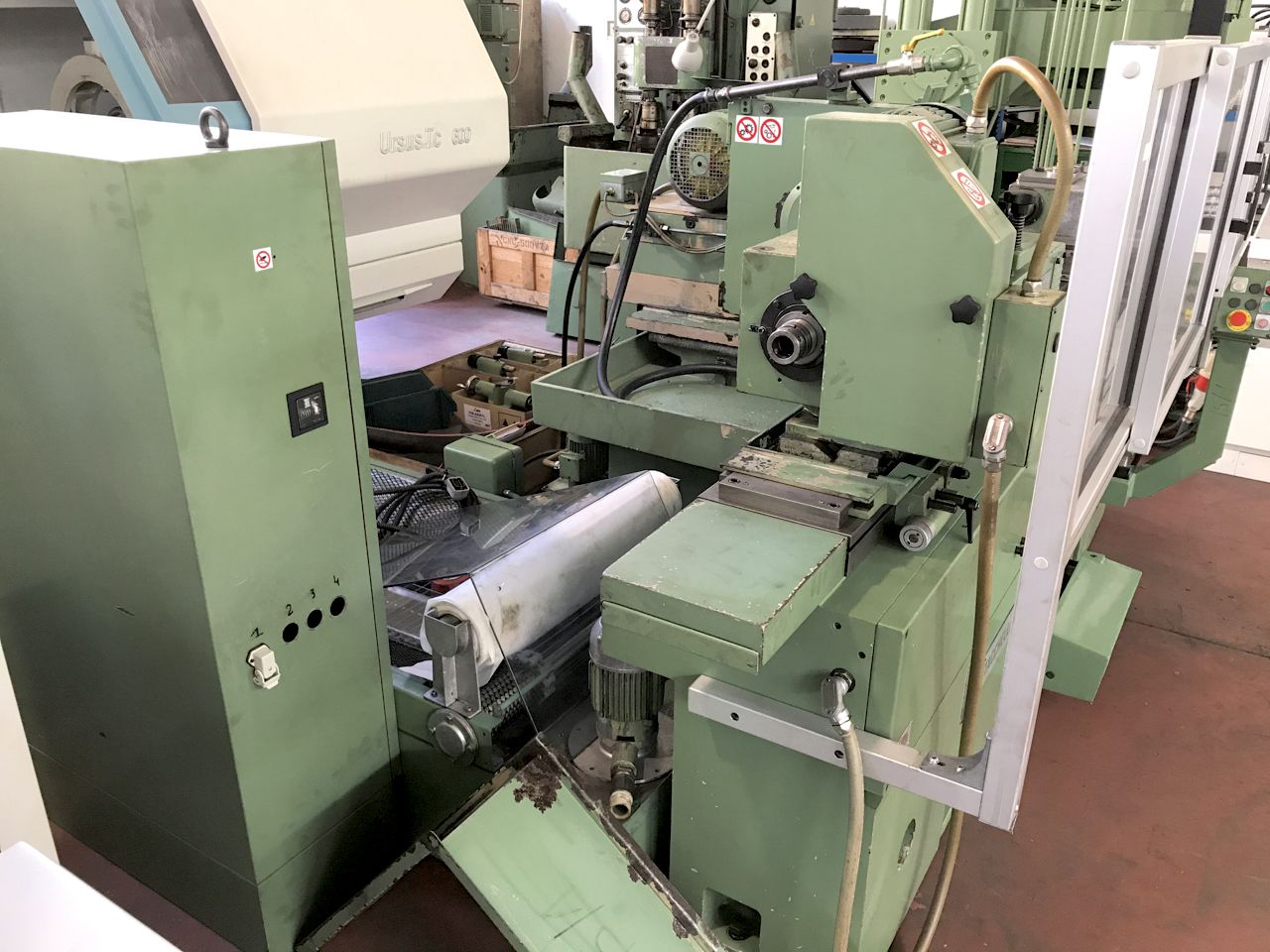

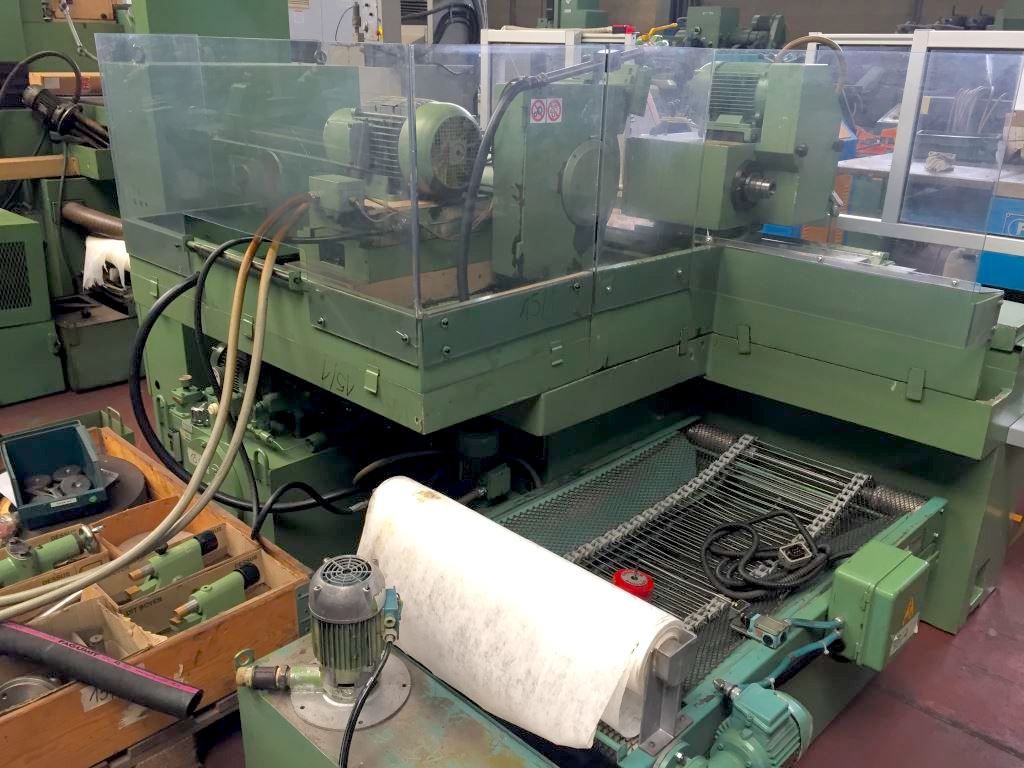

Filtration unit
si
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
si
Availability
pronta
Available under power
si
Machine total weight
4100 Kg
Floor space
3750x2150x1600 mm147,64x84,65x62,99 in

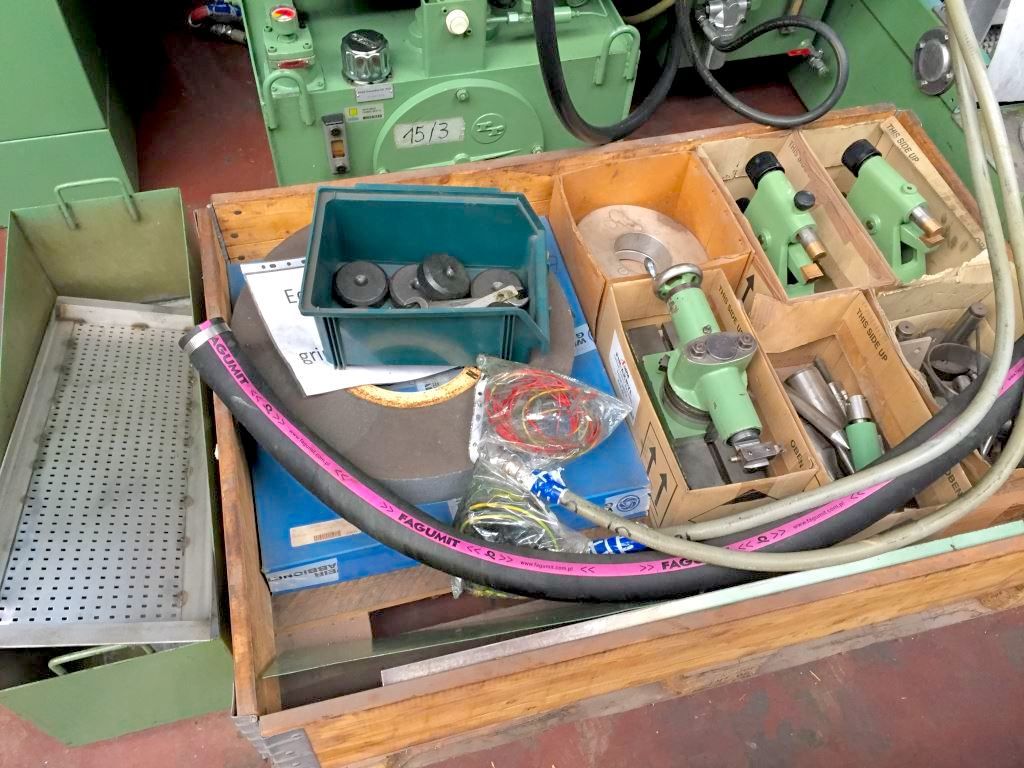

Tooling included
varie lunette, diamanti flange
Available in stock
si
