Category
Grinding Machine
Type
ID/OD
Made
Model
1018 UM
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Longitudinal (Z)
1000 mm39,37 in
Cross (X)
310 mm12,20 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
355 mm13,98 in
Max internal depth
870 mm34,25 in
Max internal diameter
10-270 mm0,39-10,63 in

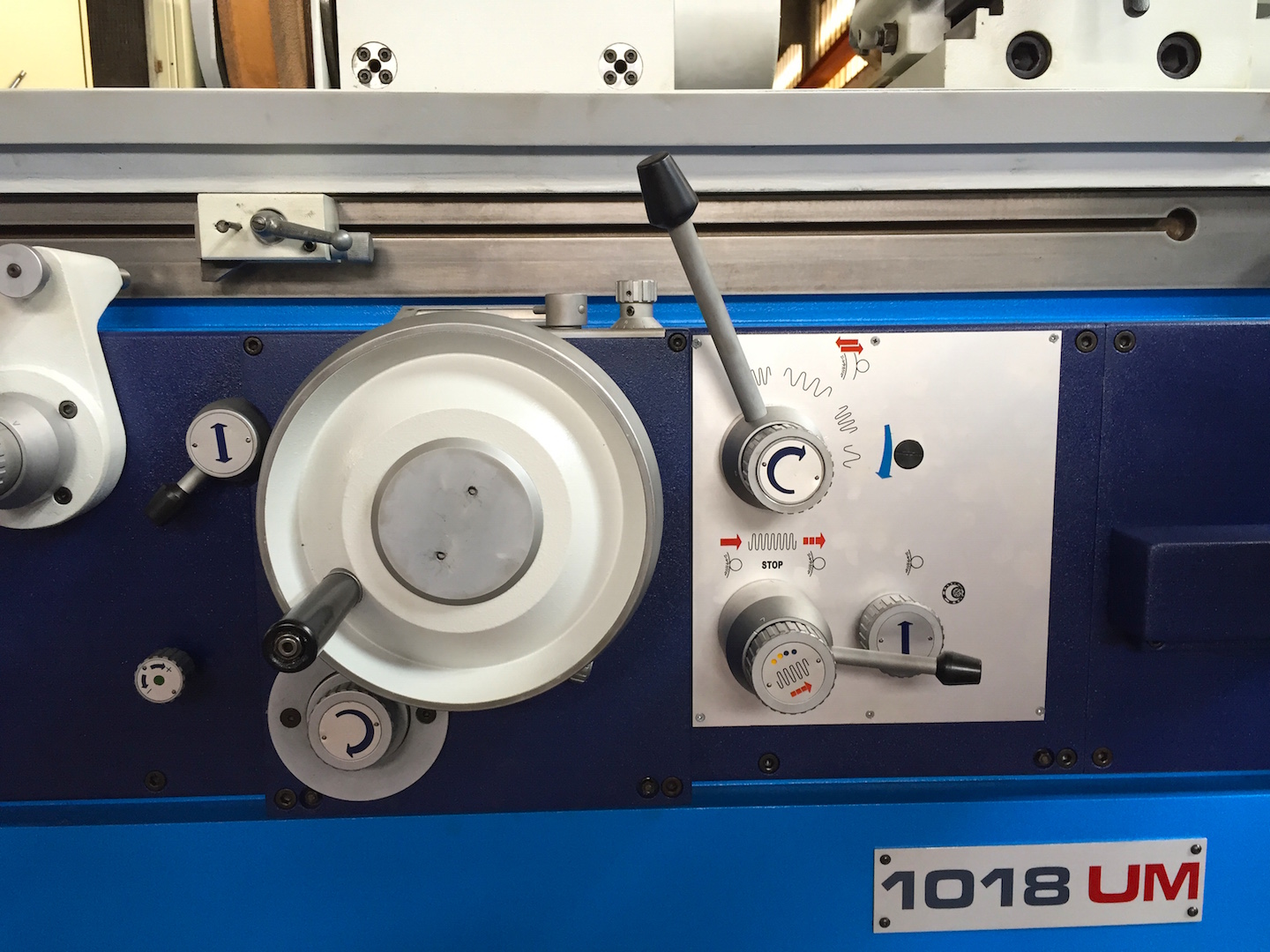

TABLE
Stroke
4-1000 mm0,16-39,37 in
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Tilt
+/- 90 °
Max workpiece weight
250 Kg

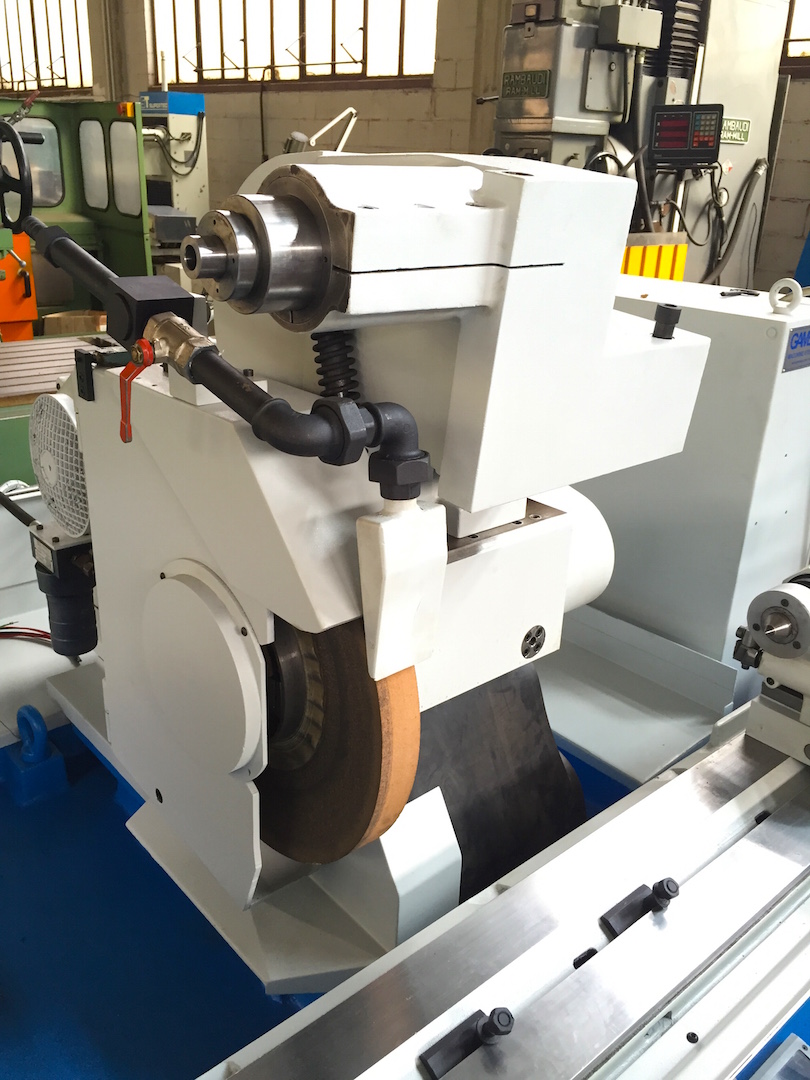

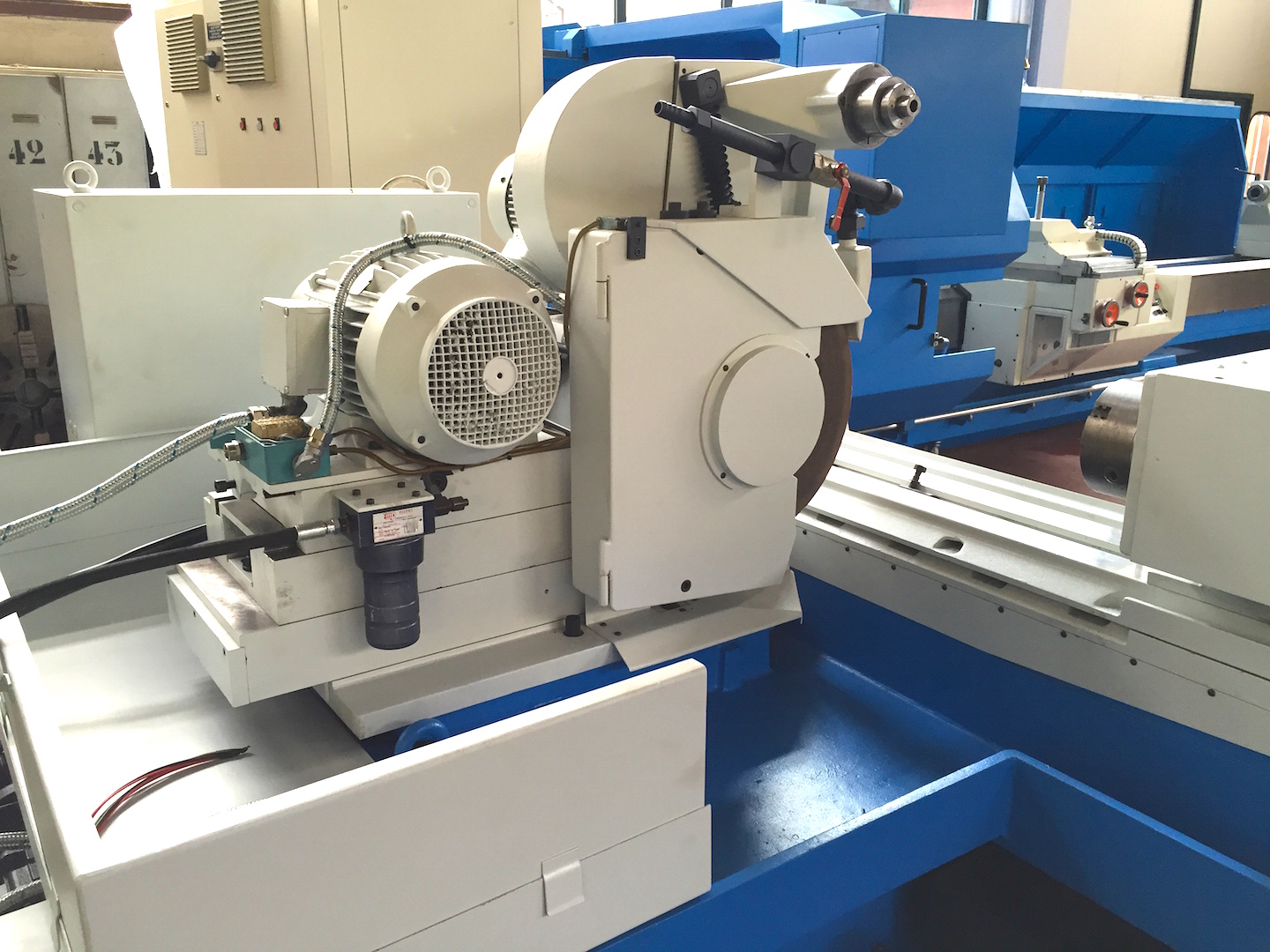

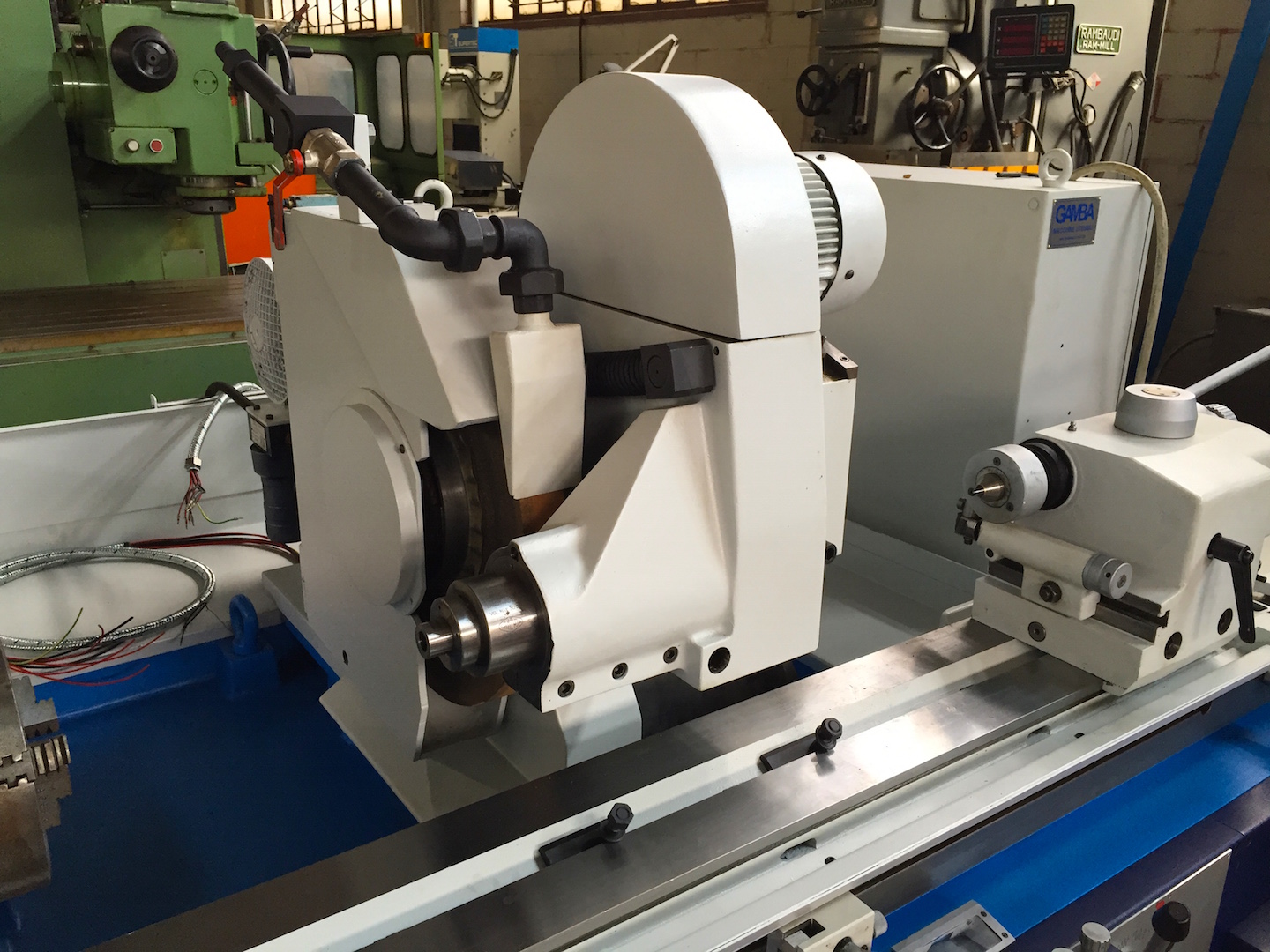

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1235/1450 Rpm
Transmission
chinghia
Internal spindle power
1,5 Kw
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
500 mm19,69 in
Hole diameter
127 mm5,00 in

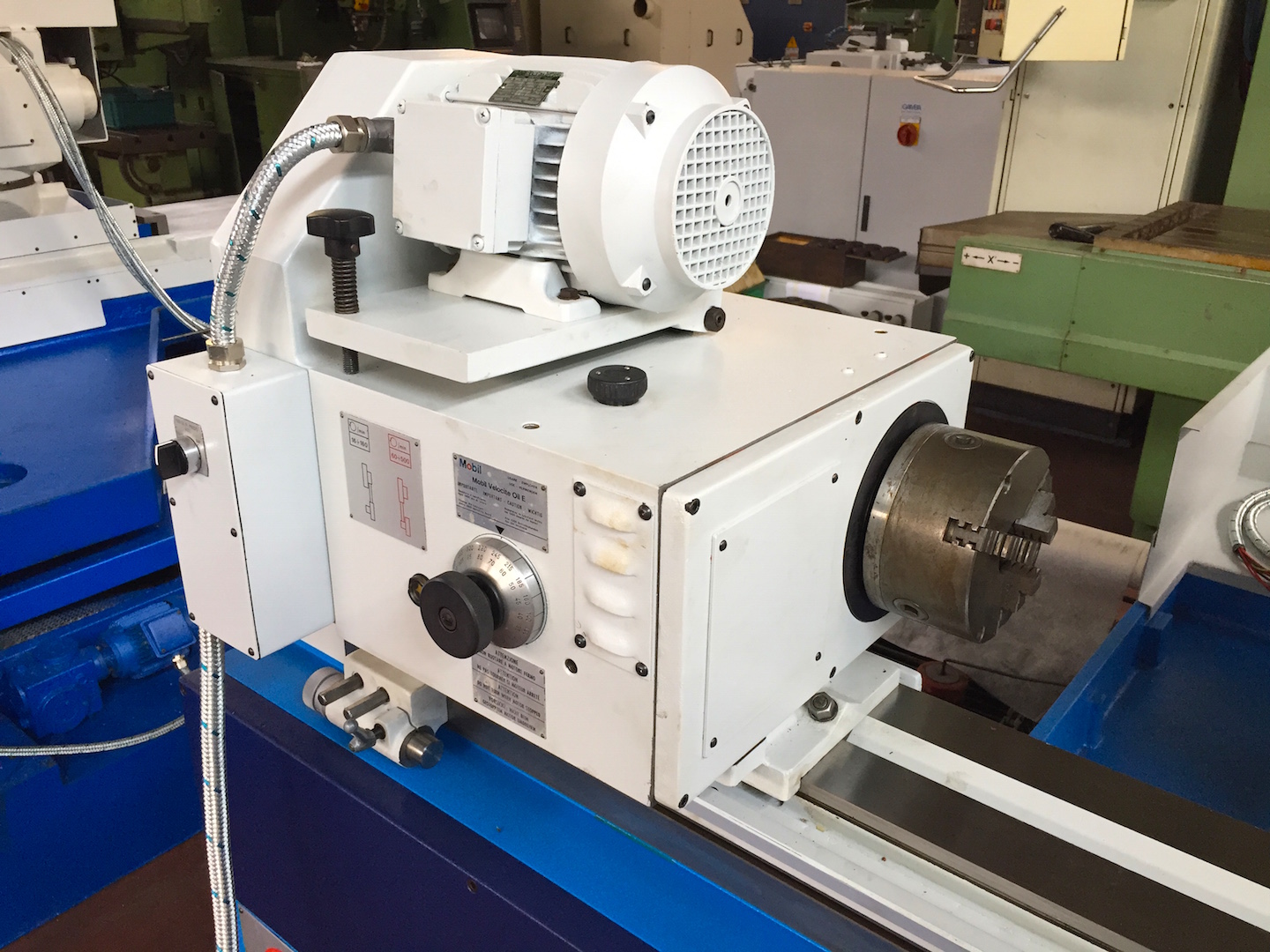

WORKPIECE HEAD
Tilt
+90 °
Rotating speed
16-500 Rpm
Speed regulation
a variazione progressiva
Taper
MK4
Spindle power
1,10 Kw

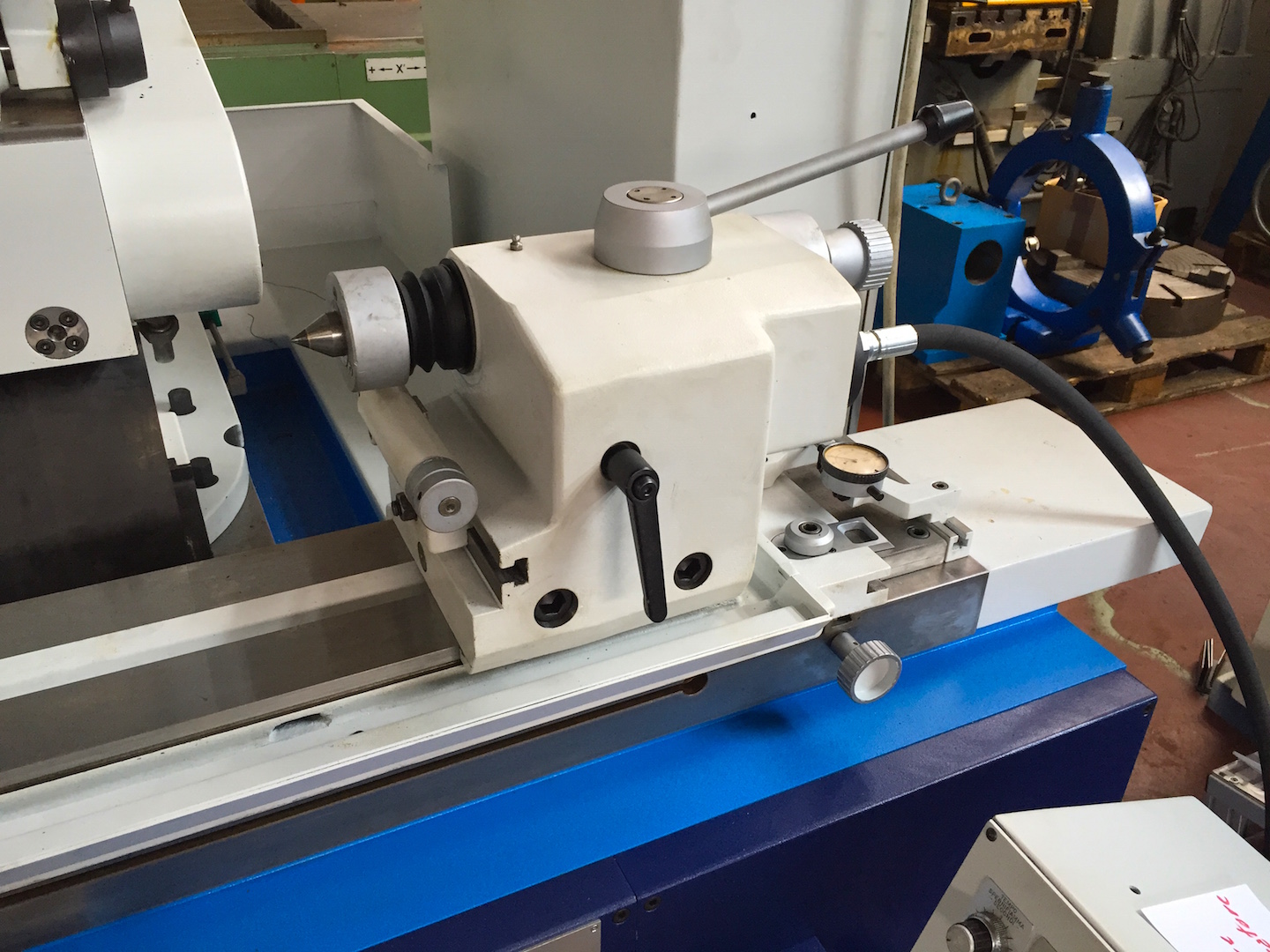

TAILSTOCK
Taper
MK4
Quill diameter
35 mm1,38 in
EXTRA
Diametral probe
Yes
Manual dresser
Yes
Electrical drawings
Yes
Machine total weight
4100 Kg
Floor space
3750x2150x1600 mm147,64x84,65x62,99 in
Maintenance & Use books
Yes
Availability
pronta consegna
Available in stock
si
Available under power
si, previo appuntamento
Total power supply
9,75 Kw

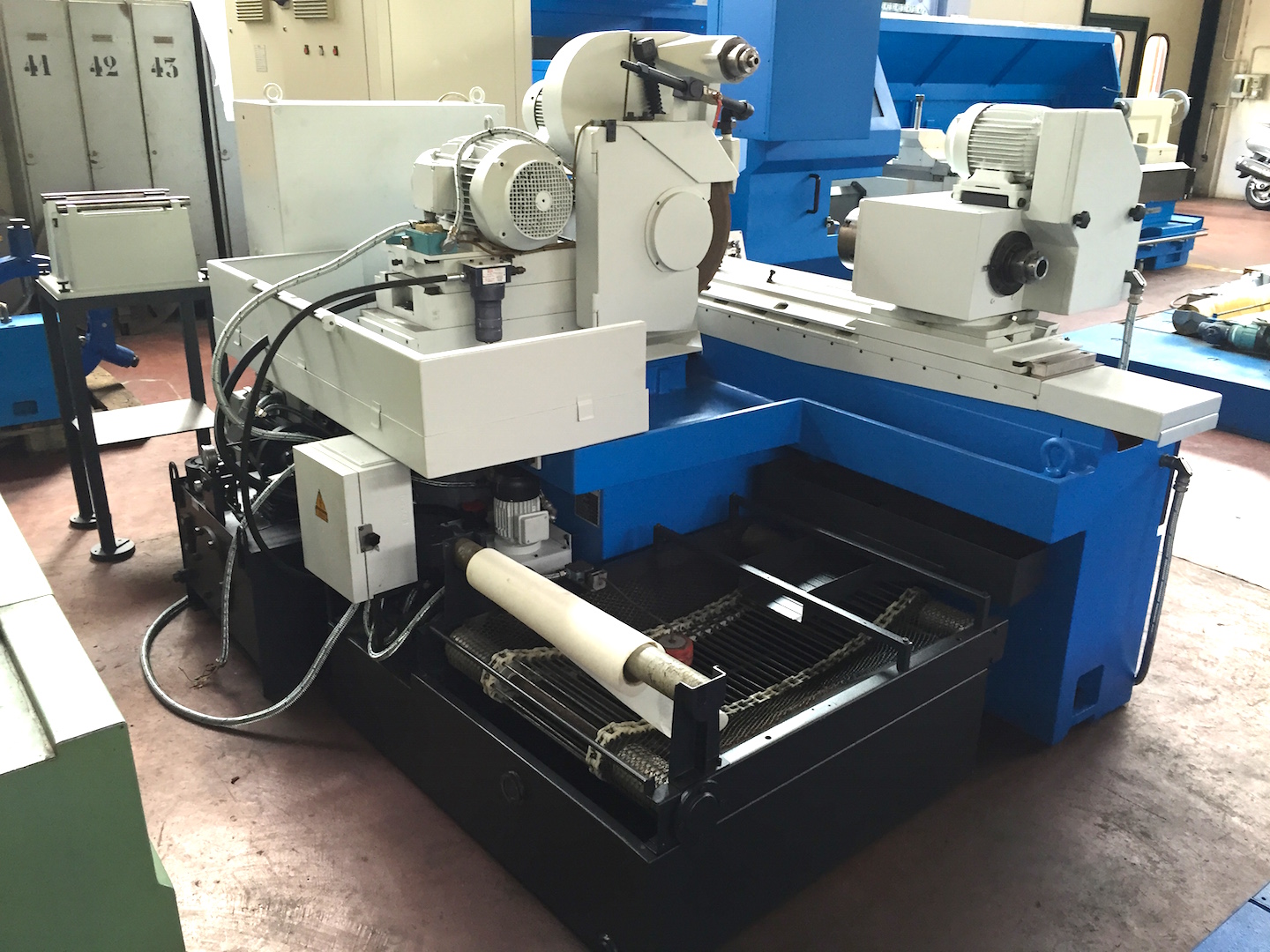

Filtration unit
vasca con filtro a carta
Housing
carter antinfortunistica frontali
Closed steadies
1
Open steadies
2
Tooling included
mandrino per interni, flange, mole
Relevant updates made on the machine
revisione completa
