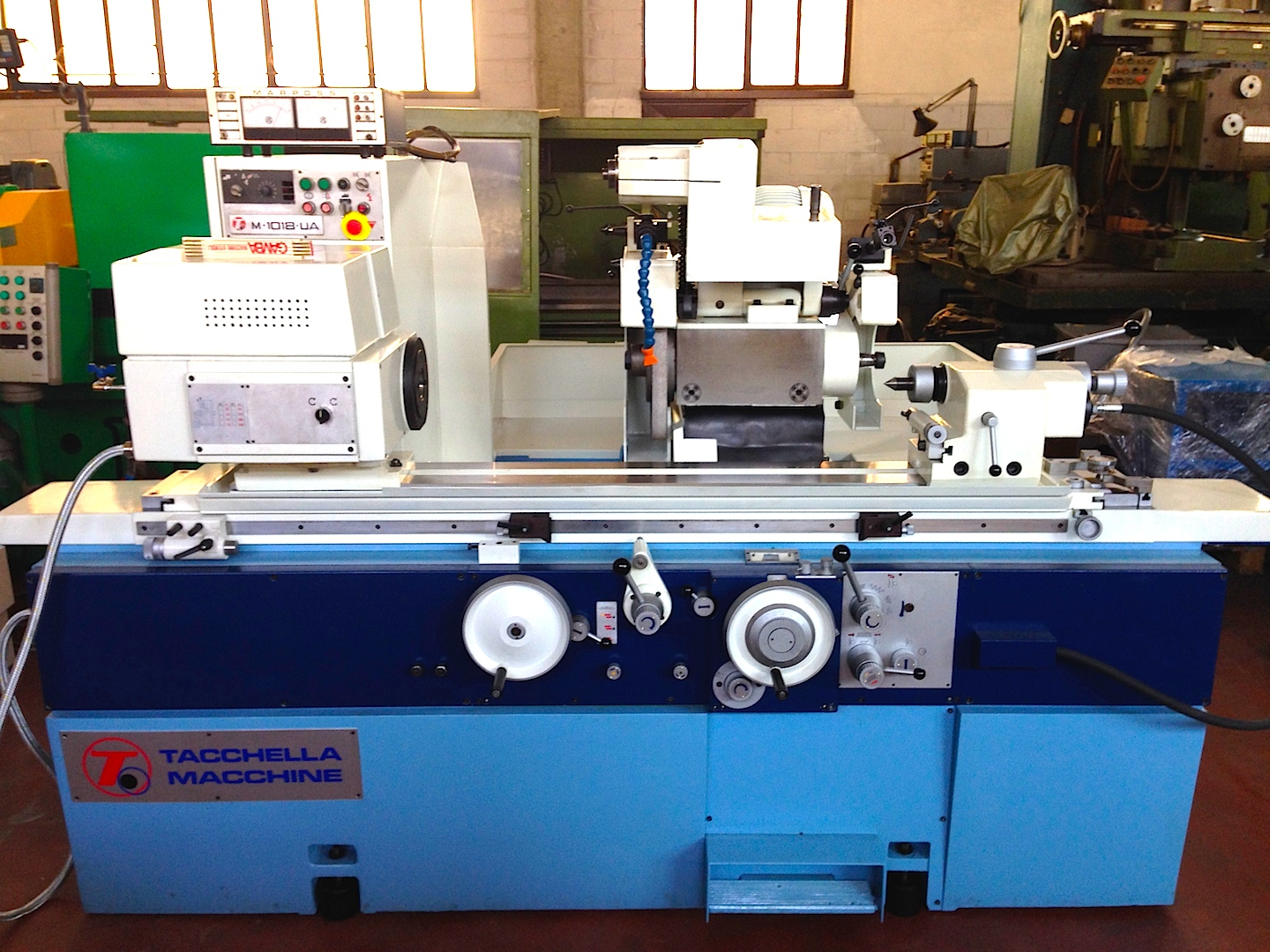

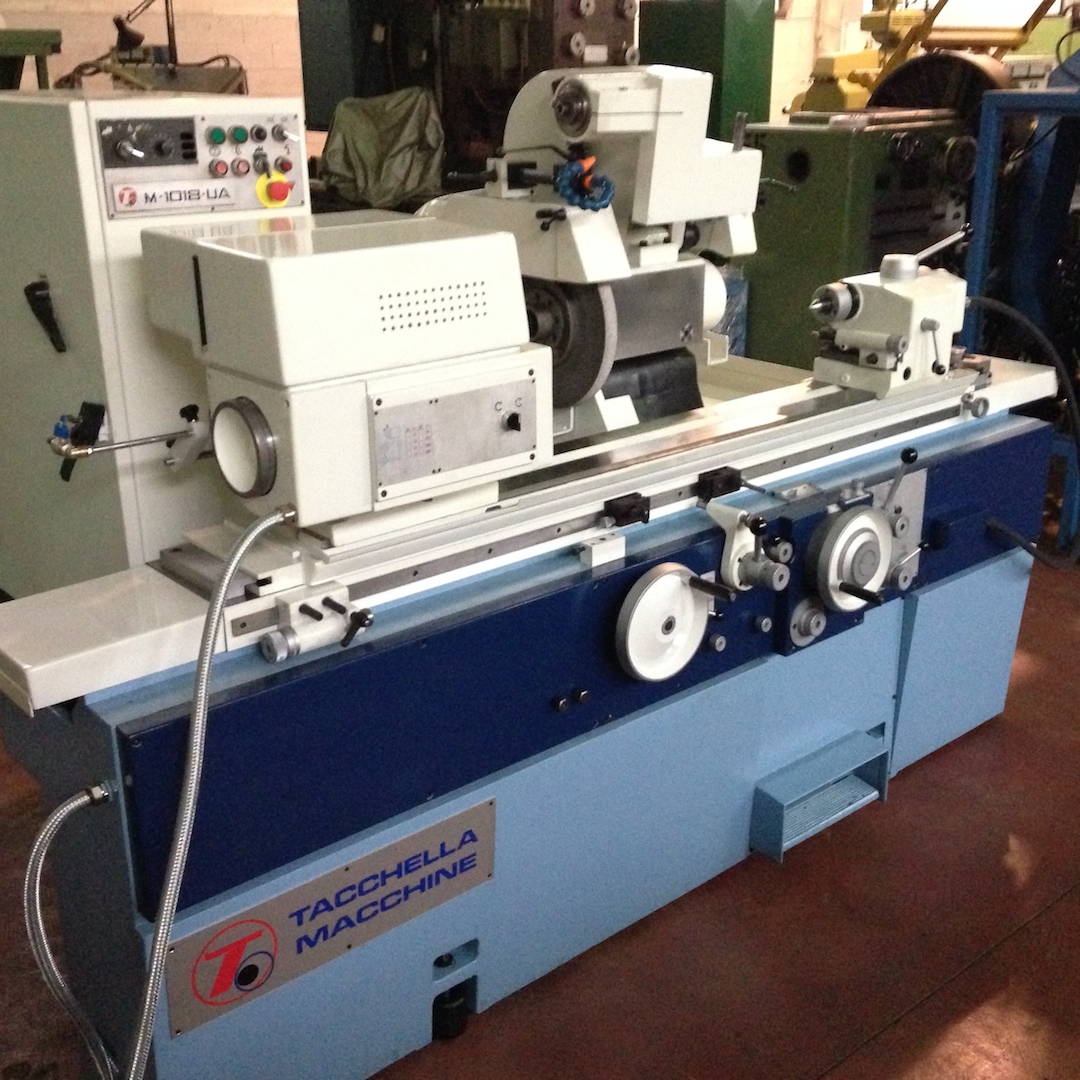

Category
Grinding Machine
Type
ID/OD
Made
Model
1018 UA
Capacity
355x1000 mm13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Longitudinal (Z)
1000 mm39,37 in
Cross (X)
340 mm13,39 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
300 mm11,81 in
Max internal diameter
10-270 mm0,39-10,63 in
Max internal depth
870 mm34,25 in
TABLE
Stroke
4/1000 mm0,16/39,37 in
Cross speed
100-5000 mm/min3,9370-196,8500 ipm
Max workpiece weight
250 Kg
Tilt
9 °

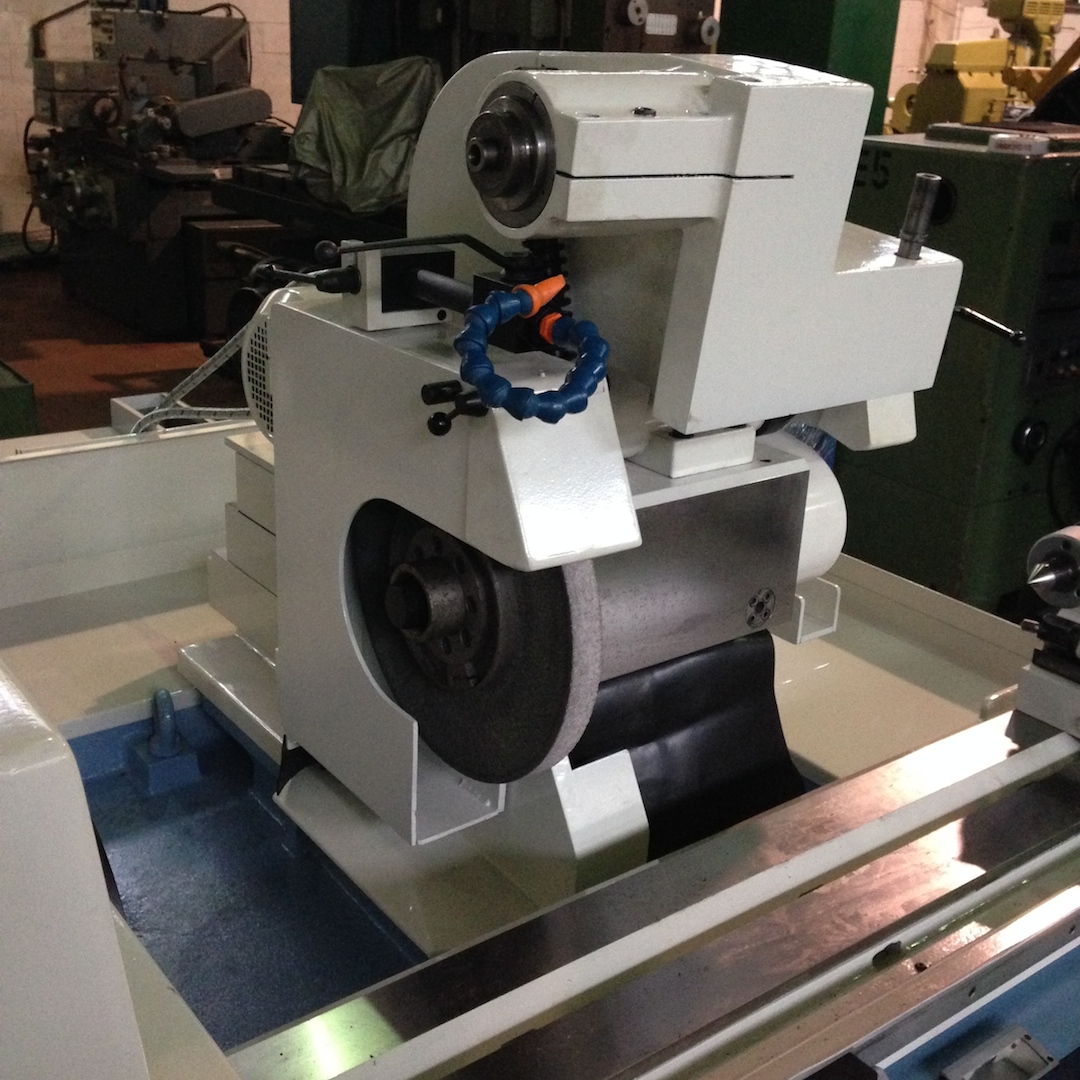

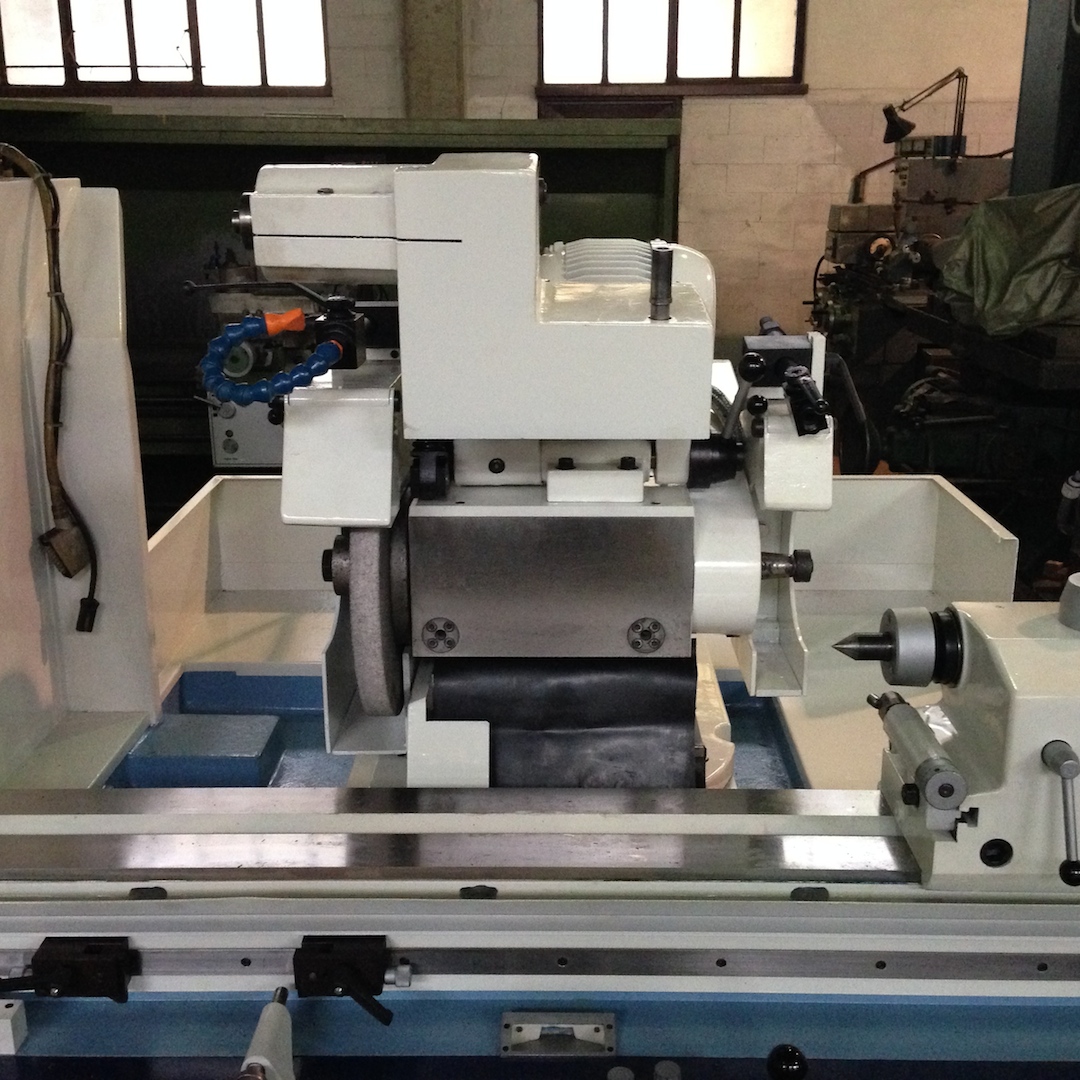

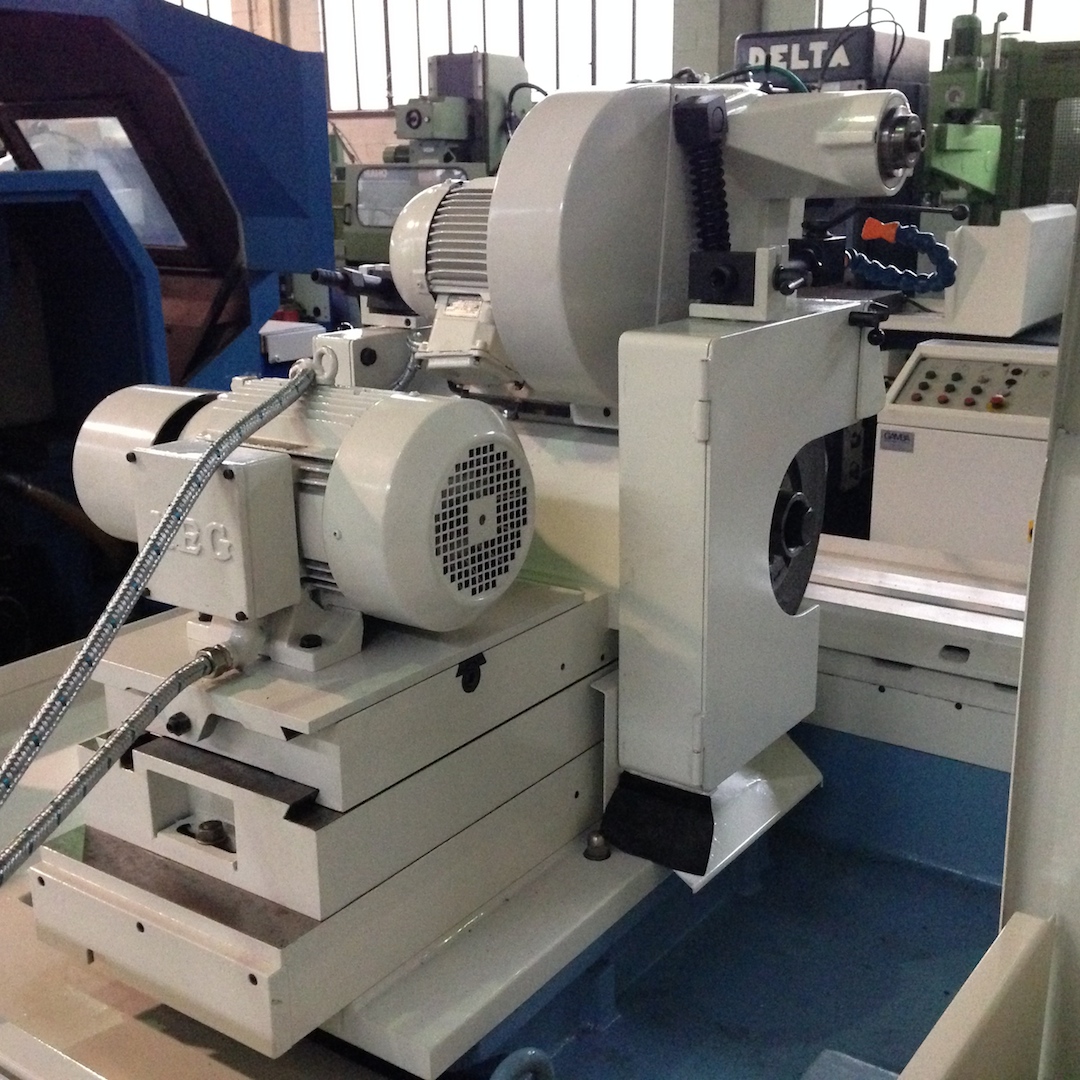

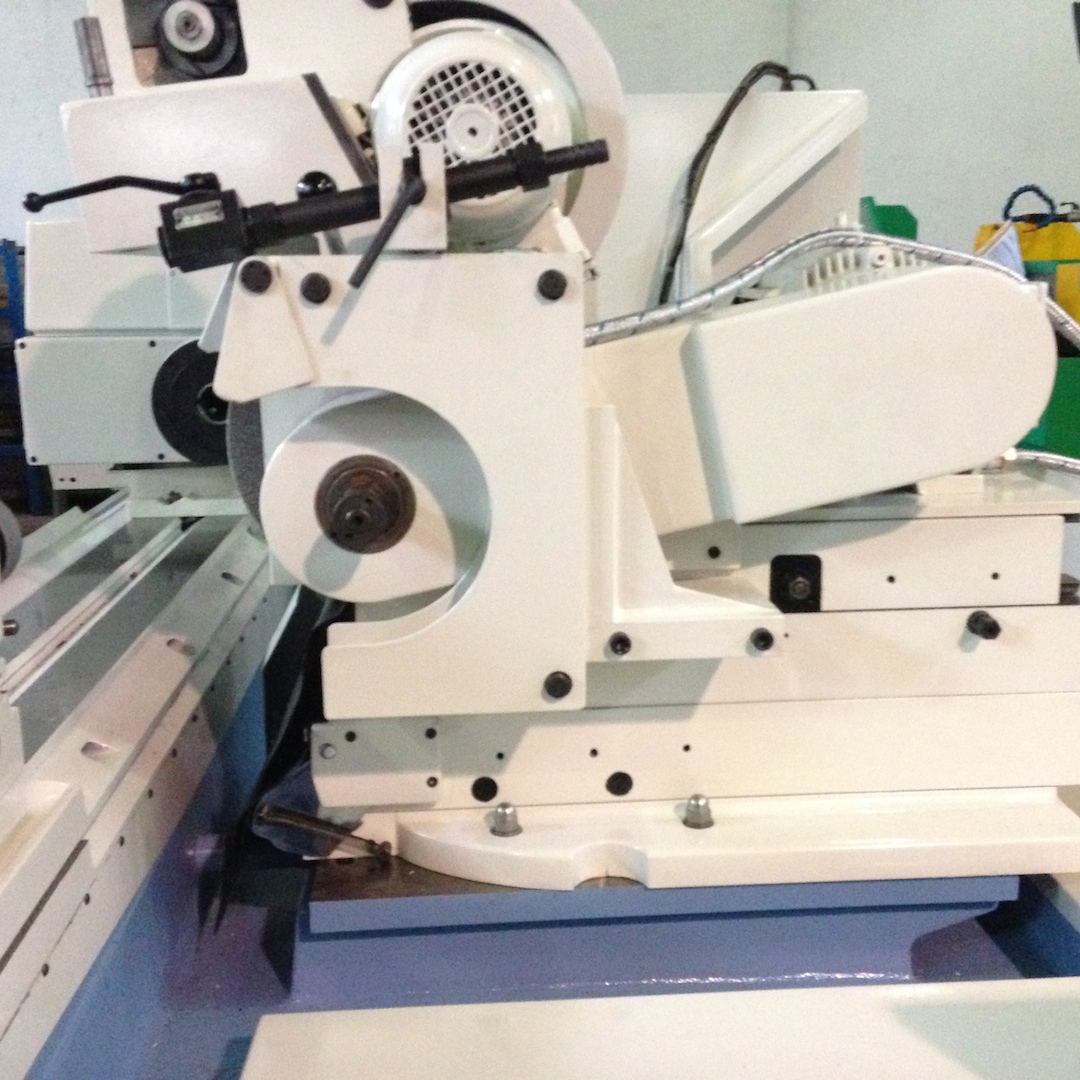

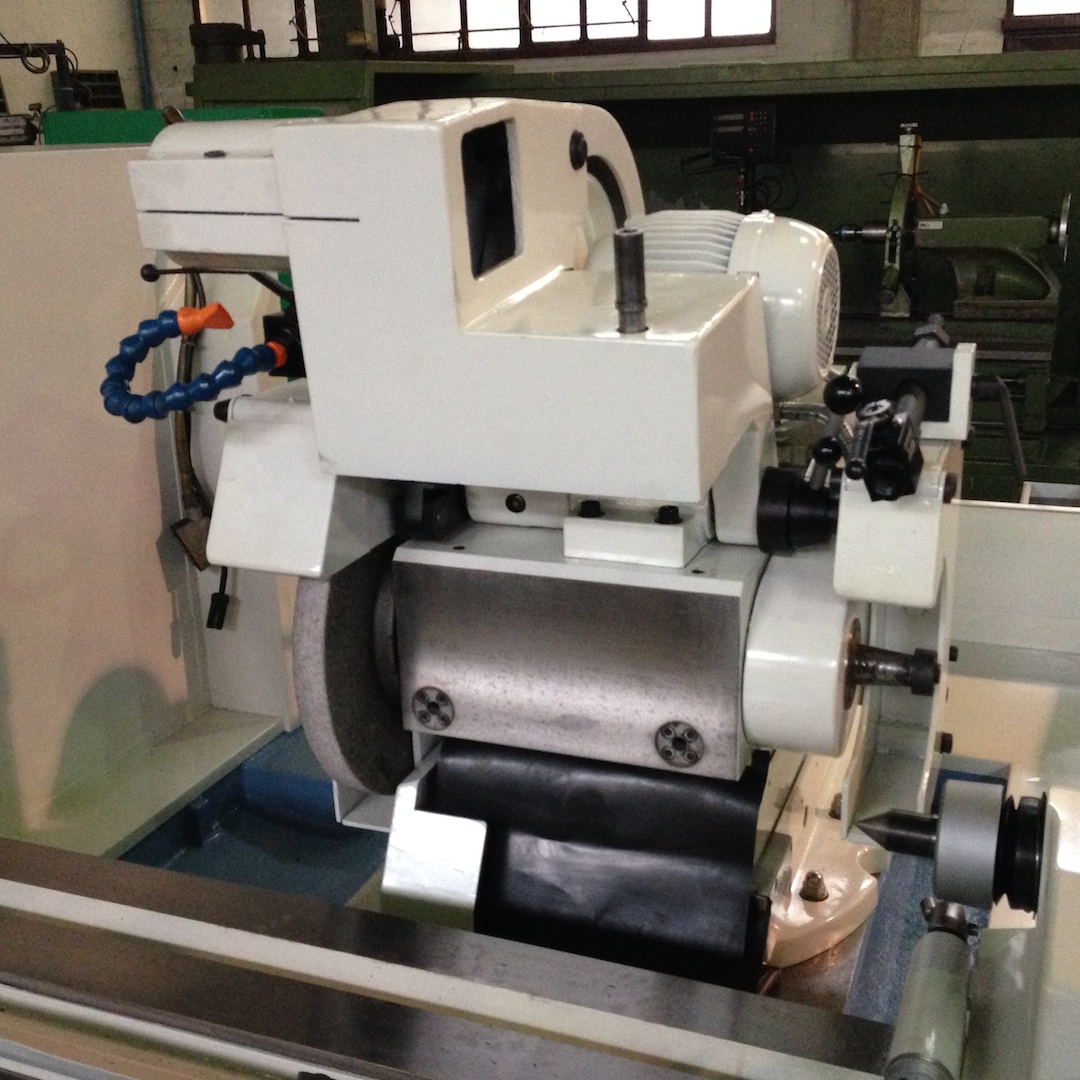

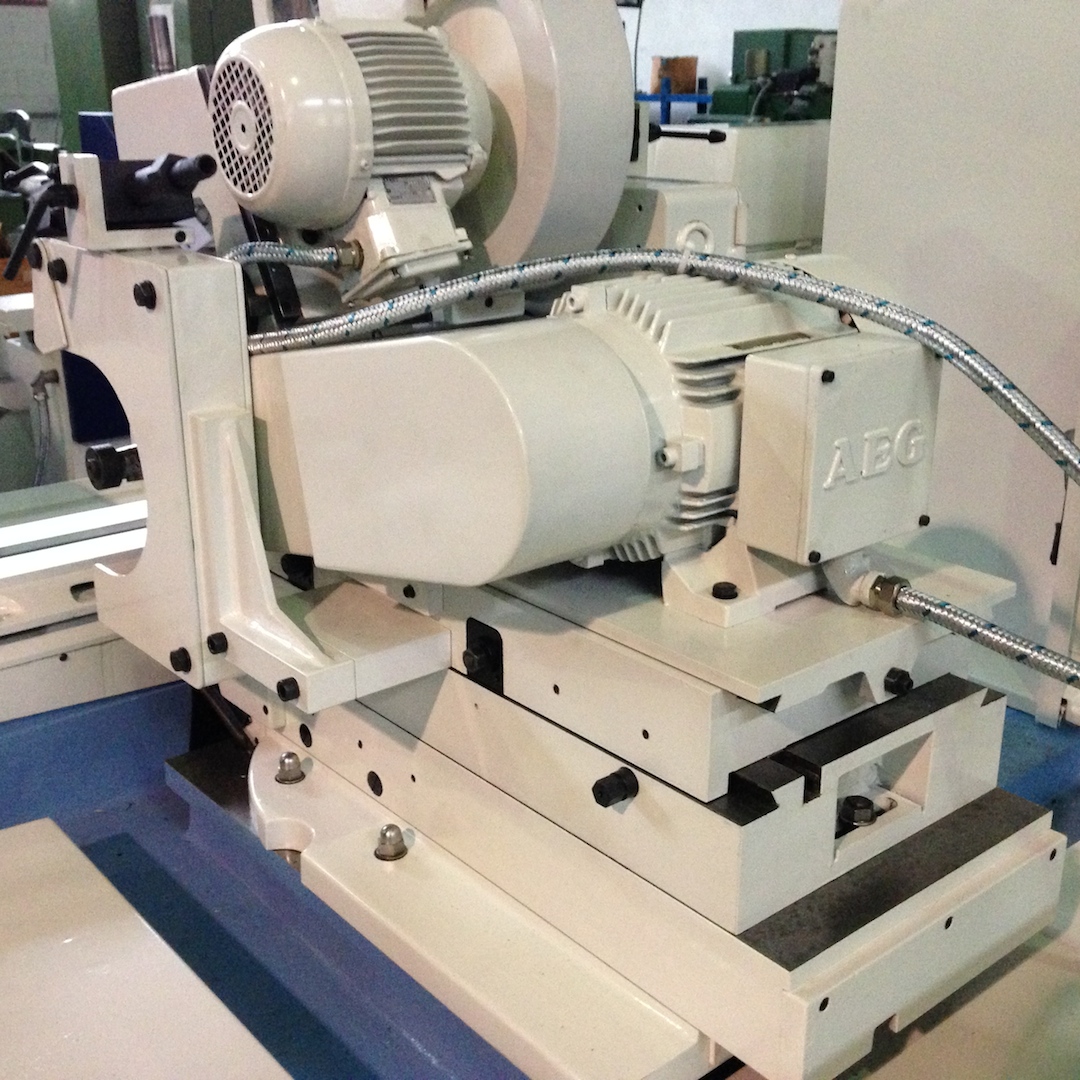

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm
Internal spindle power
1,5 Kw
RIGHT WHEEL
Wheel band thickness
350 mm13,78 in
Max wheel diameter
70 mm2,76 in
Hole diameter
127 mm5,00 in
LEFT WHEEL
Wheel band thickness
80 mm3,15 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in

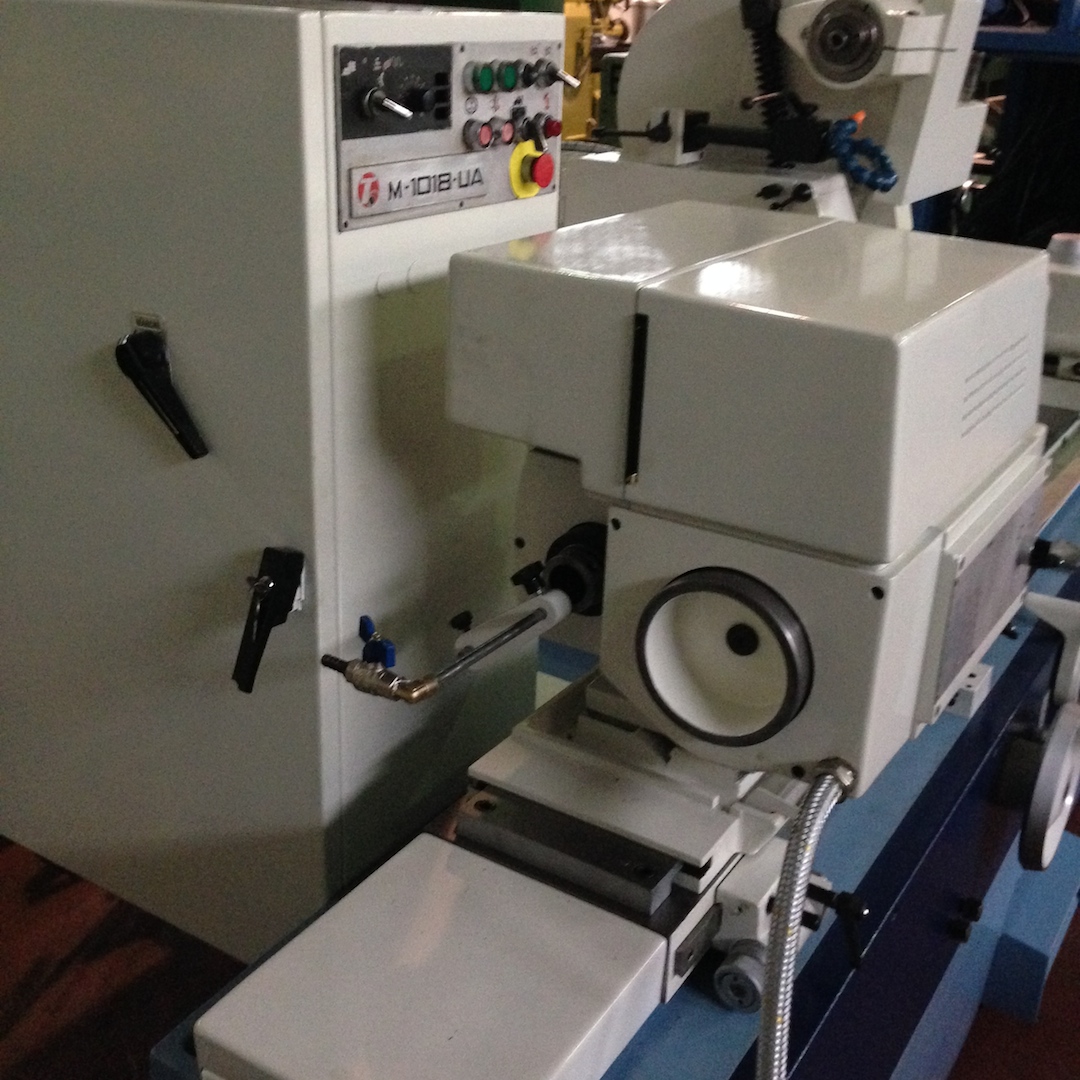

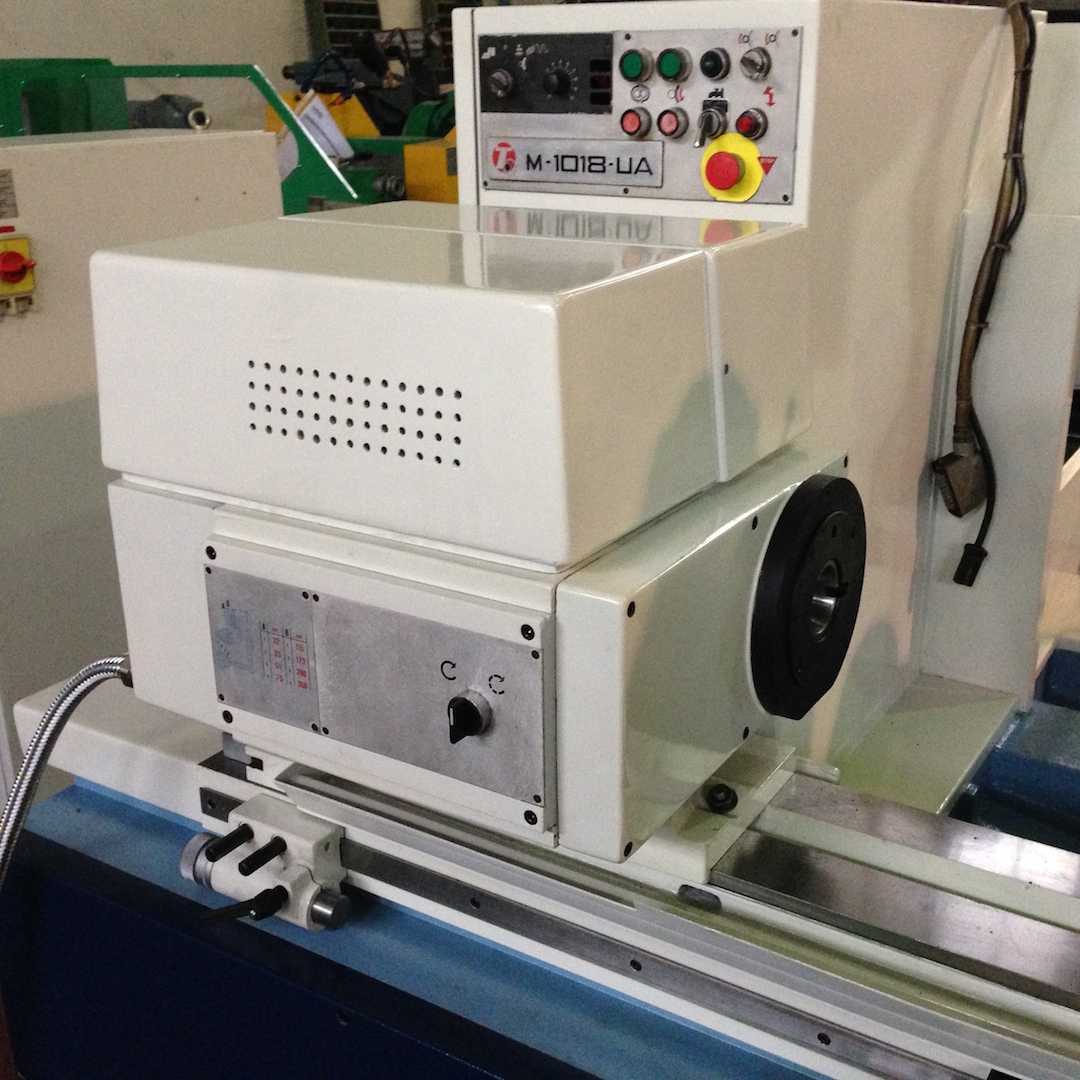

WORKPIECE HEAD
Spindle power
0,75 Kw
Rotating speed
22-580 Rpm
Speed regulation
spostamento cinghia
Tilt
+90 °
Taper
MK4

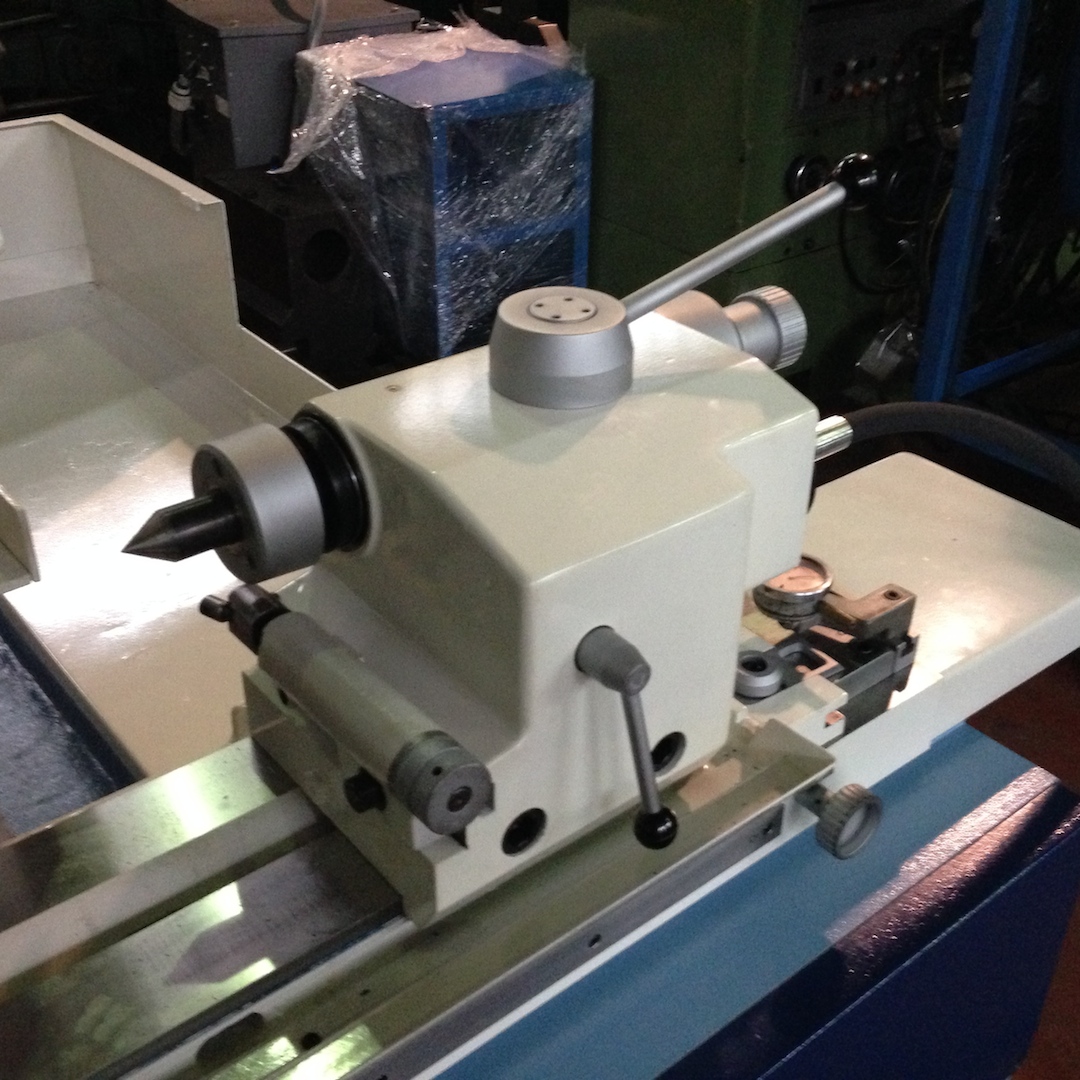

TAILSTOCK
Quill stroke
30 mm1,18 in
Taper
MK4
Drive
manuale
EXTRA
Total power supply
10 Kw
Machine total weight
4000 Kg
Floor space
3780x1850x1750 mm148,82x72,83x68,90 in
Tooling included
set mola destra, lunette, apparecchio per interni
Diametral probe
Yes
Manual dresser
Yes

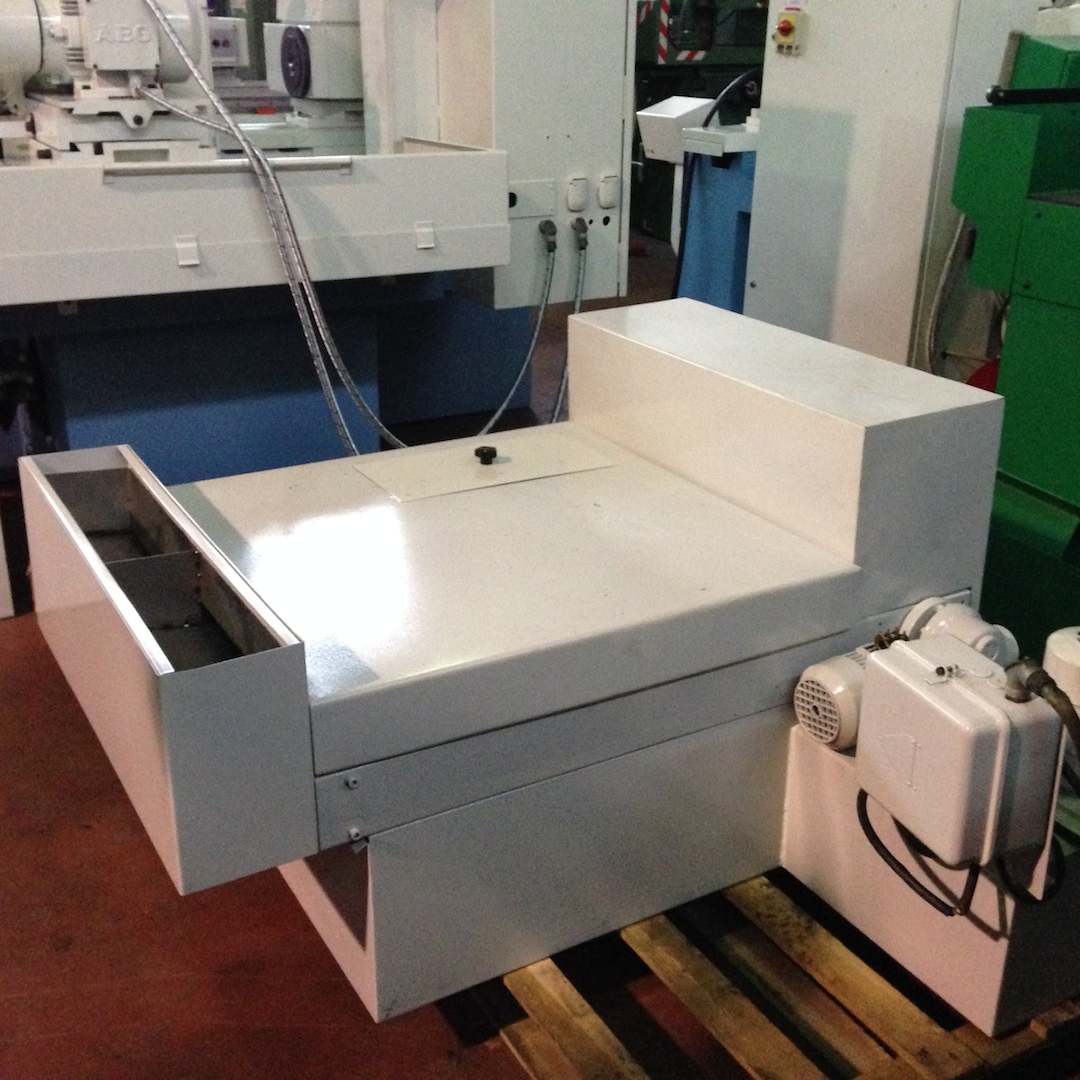

Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
previo appuntamento
