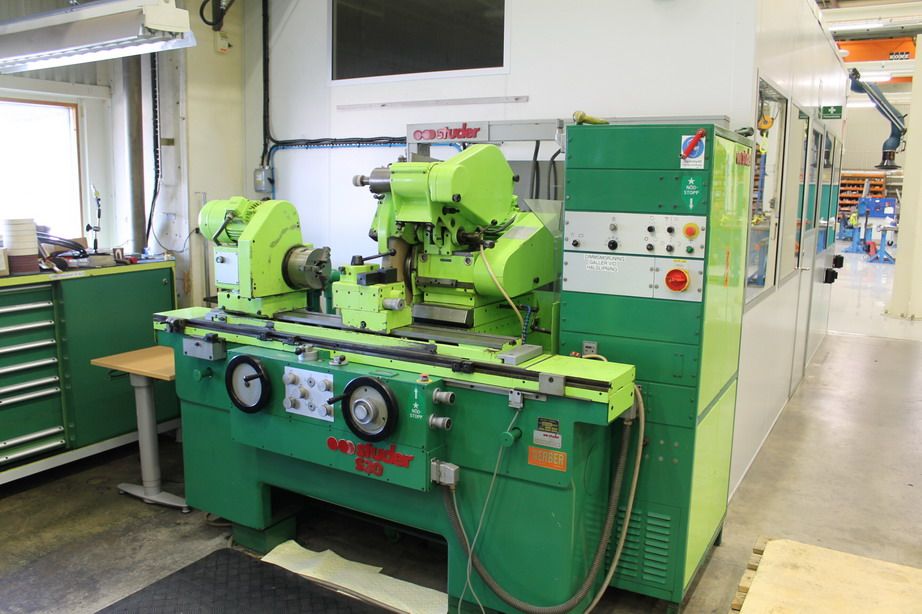

Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
650 mm25,59 in
Centres height
175 mm6,89 in
Cross (X)
255 mm10,04 in
Max grinding diameter
250 mm9,84 in
TABLE
Cross speed
0,012-6 mm/min0,0005-0,2362 ipm
FEEDS
Cross
0,001-0,05 mm/min0,0000-0,0020 ipm
WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
2110 Rpm

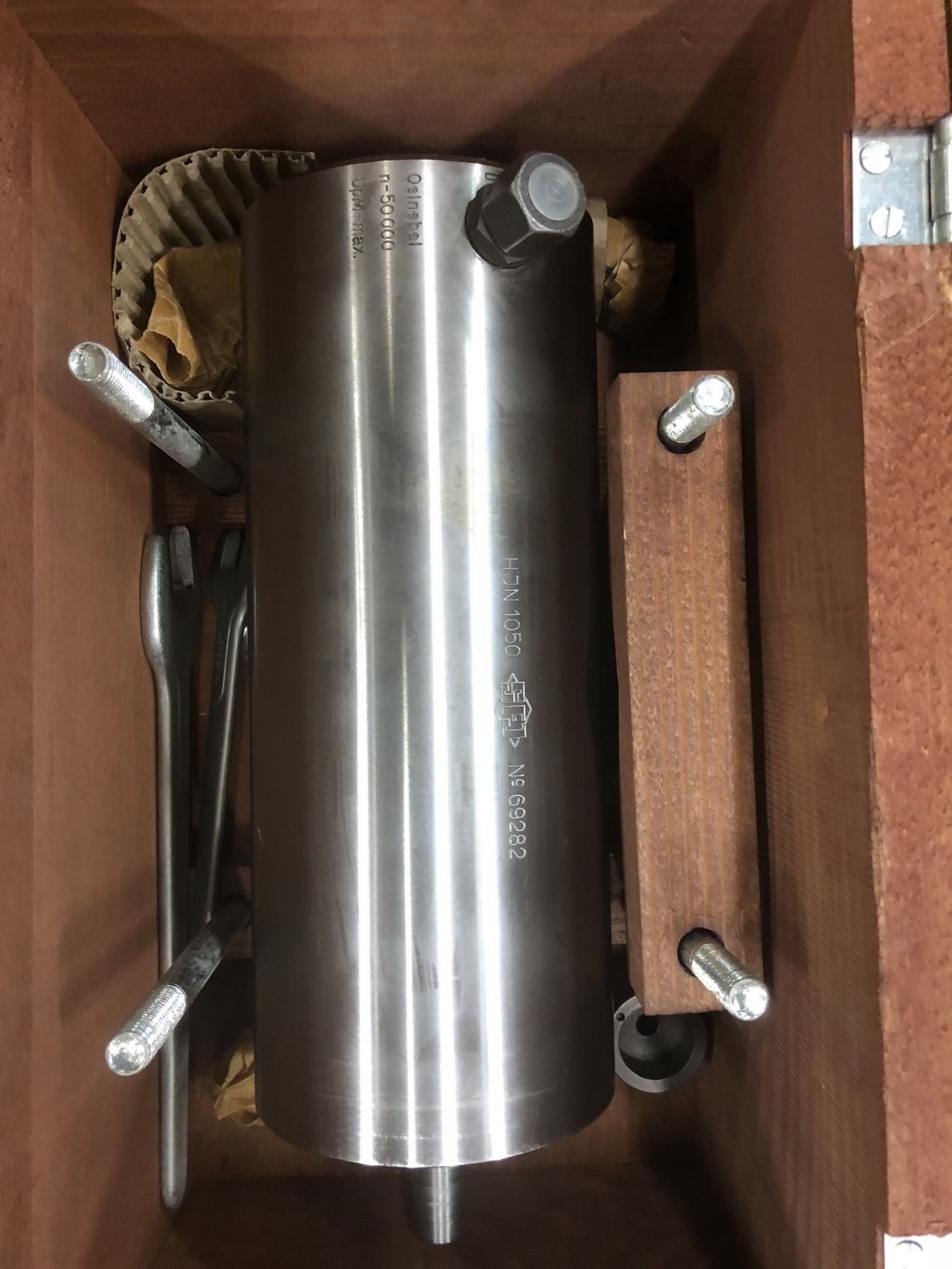

Internal spindle speed
50000 Rpm
LEFT WHEEL
Wheel band thickness
63 mm2,48 in
Max wheel diameter
400 mm15,75 in
WORKPIECE HEAD
Spindle power
0,55 Kw
Rotating speed
30-1000 Rpm
Taper
morse 5
TAILSTOCK
Quill diameter
50 mm1,97 in
Taper
morse 3
EXTRA
Open steadies
sì
Closed steadies
sì

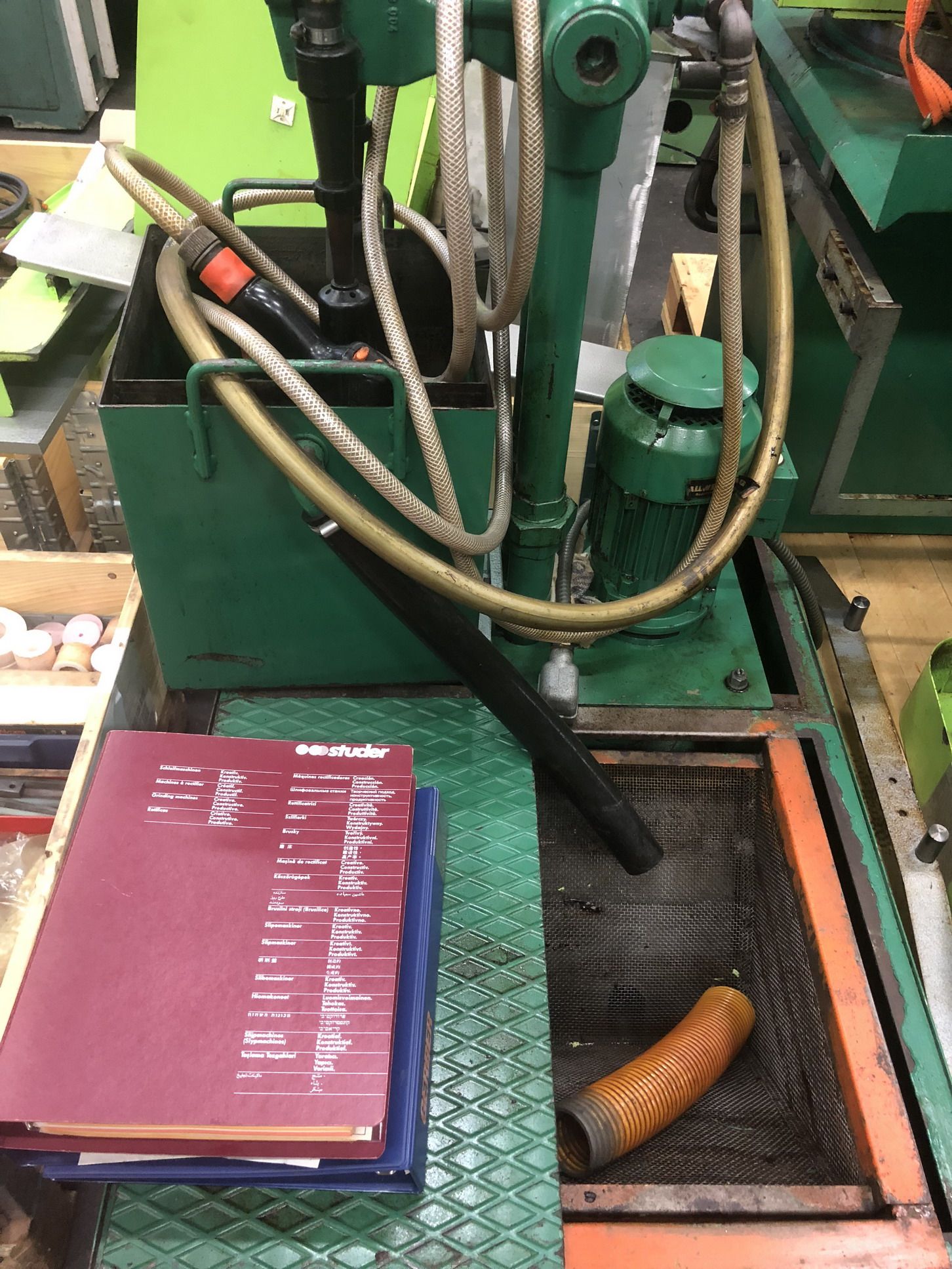

Maintenance & Use books
Yes
Available in stock
sì
