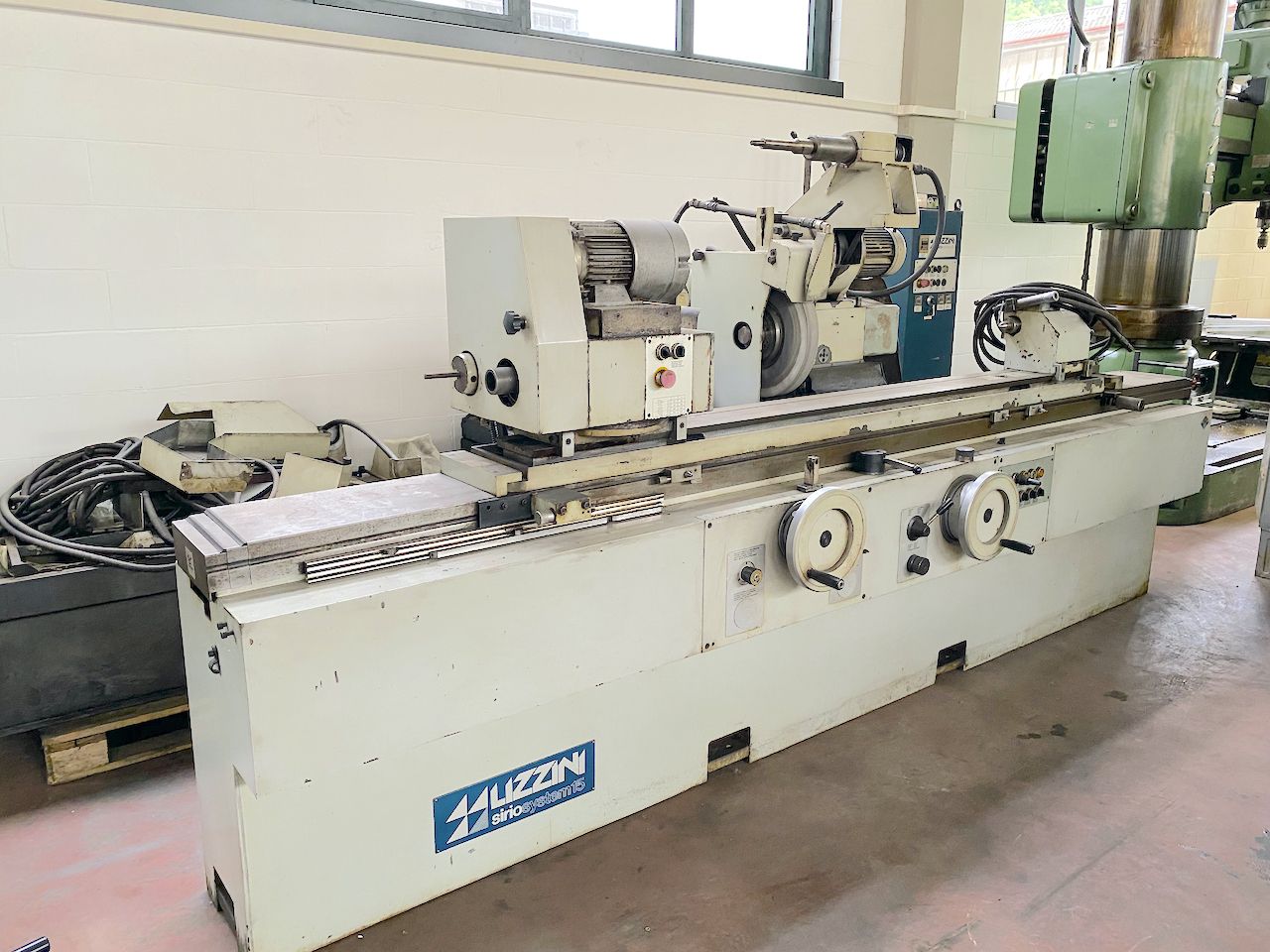

Category
Grinding Machine
Type
ID/OD
Made
Model
SIRIO SYSTEM 15
Capacity
300x1525 mm11,81x60,04 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1500 mm59,06 in
Centres height
150 mm5,91 in
Longitudinal (Z)
1570 mm61,81 in
Max grinding lenght
1525 mm60,04 in
Max grinding diameter
300 mm11,81 in
Max internal diameter
150 mm5,91 in
TABLE
Stroke
1570 mm61,81 in
Cross speed
0,1 - 6 mm/min0,0039 - 0,2362 ipm
Tilt
6 °

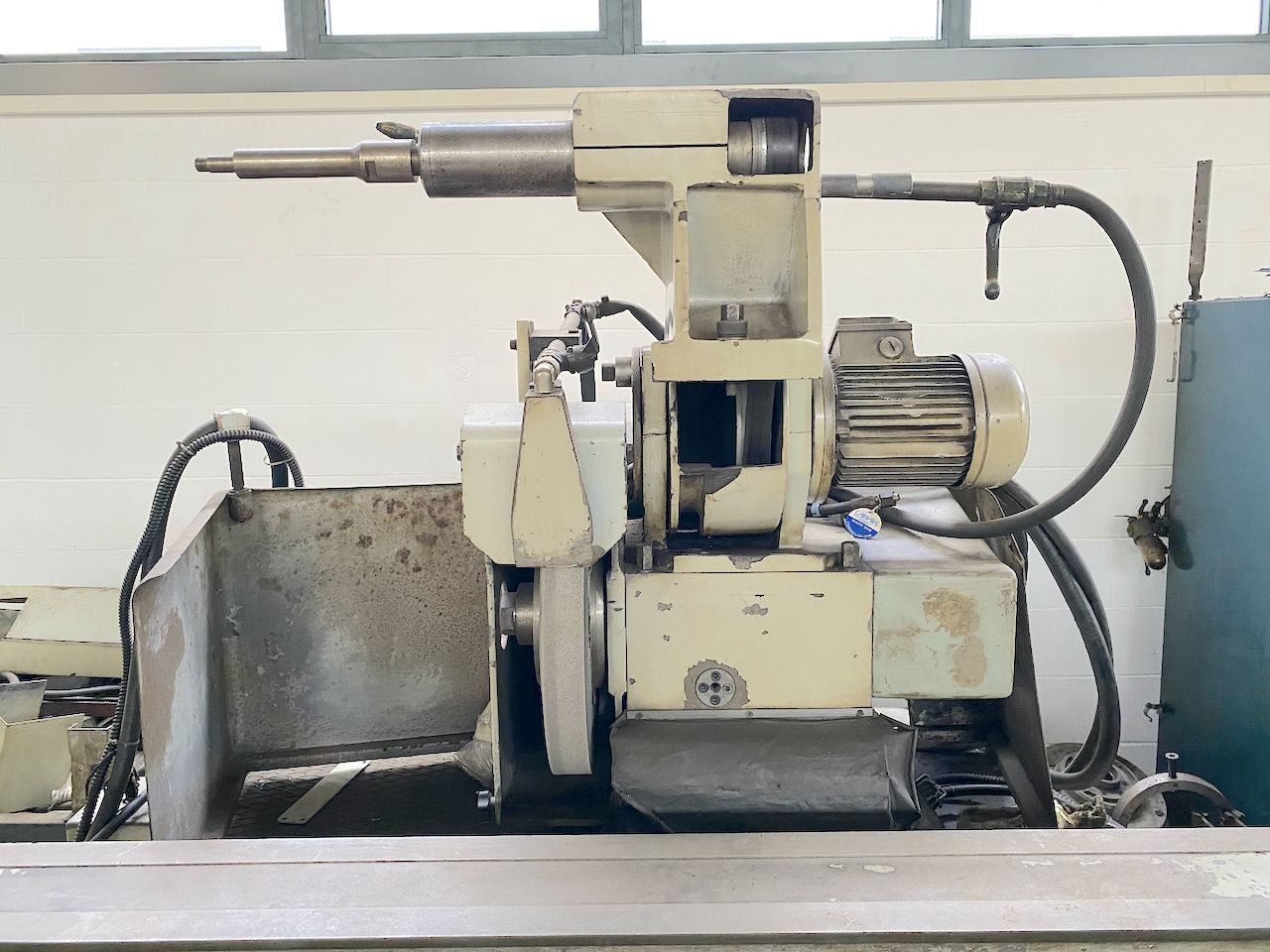

WHEELHEAD
External spindle power
11 Kw
Notes
orientabile 45°
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in

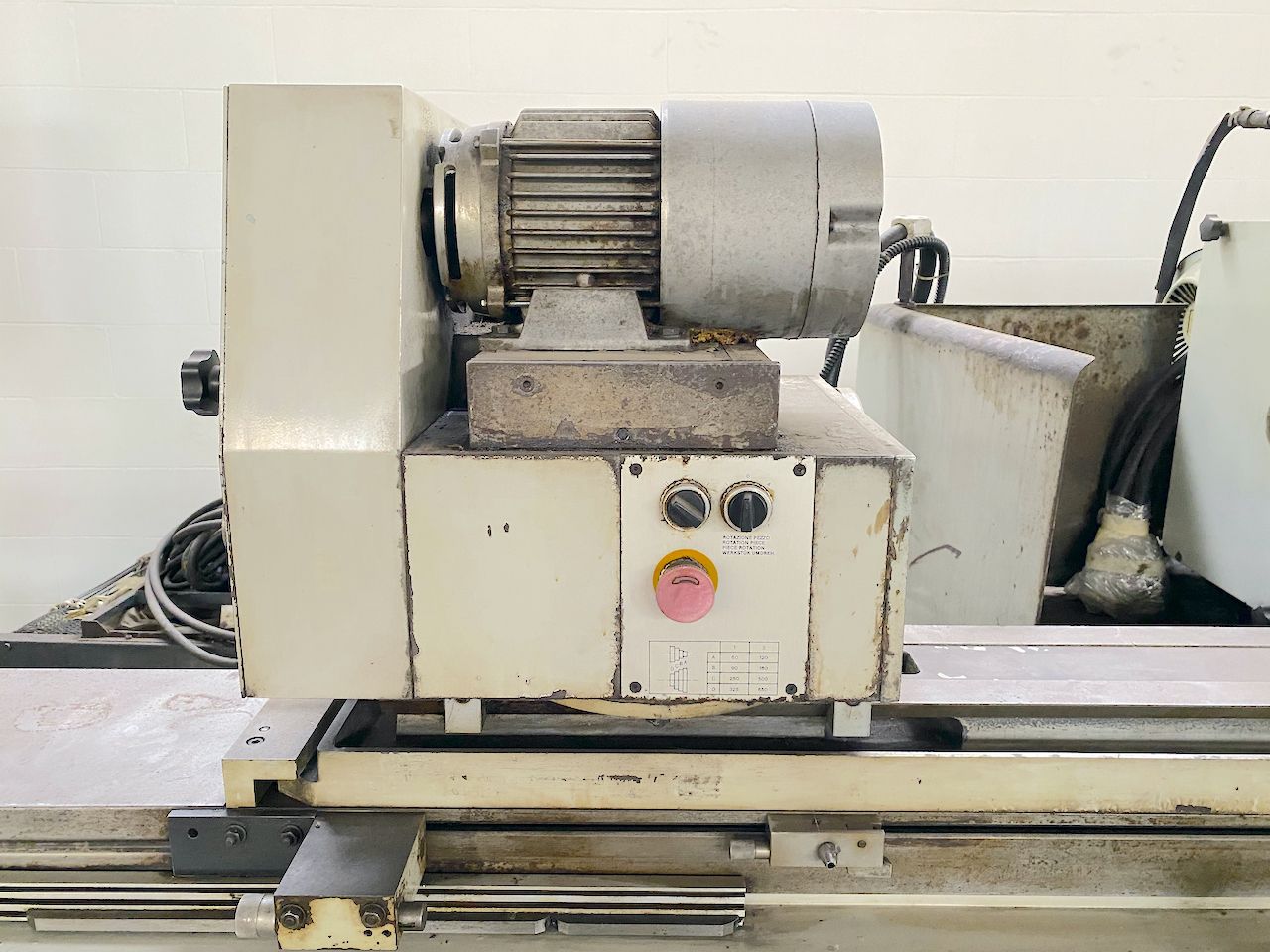

WORKPIECE HEAD
Rotating speed
650 Rpm
Tilt
90 °
EXTRA
Total power supply
15 Kw
Machine total weight
5400 Kg

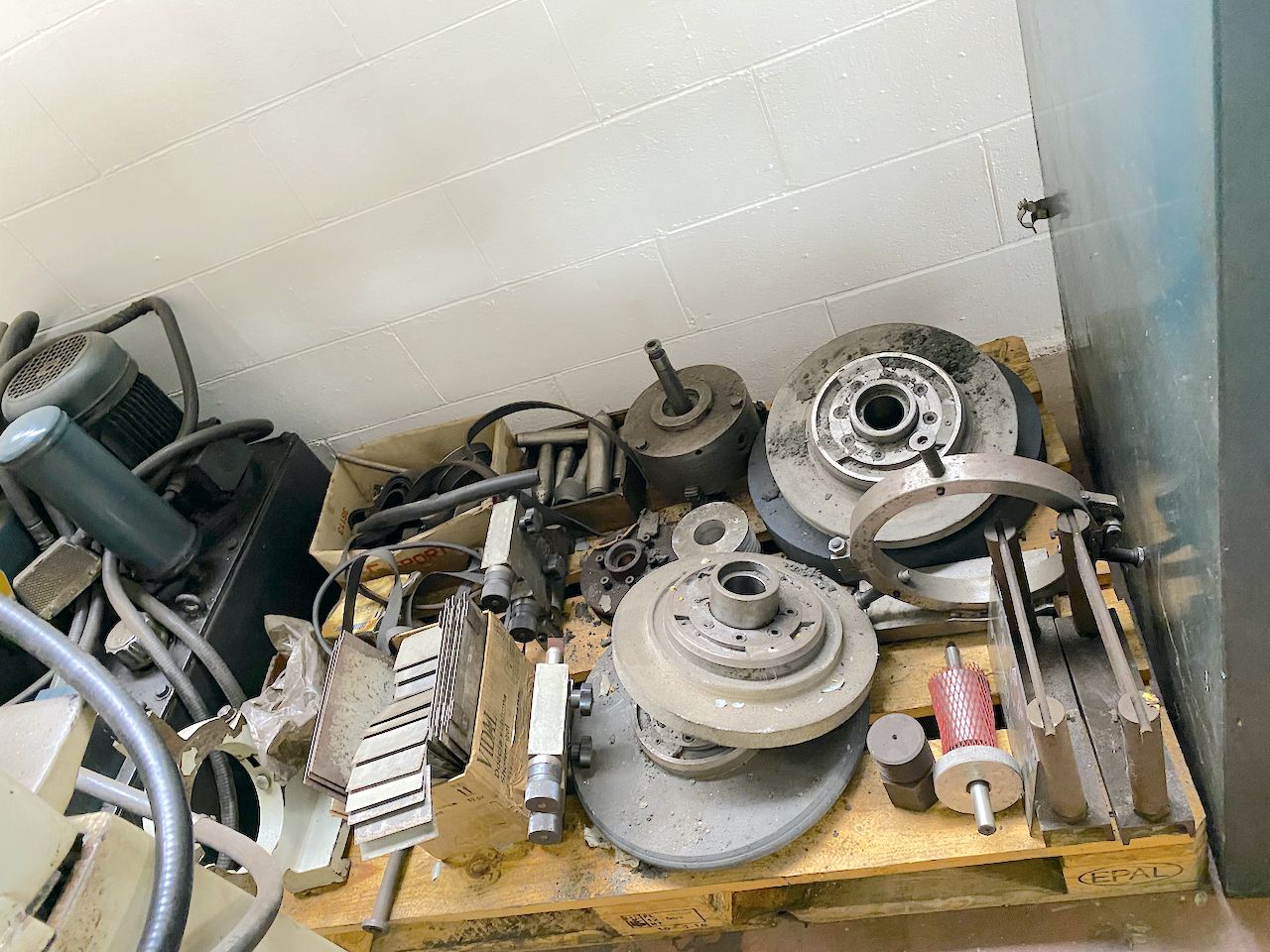

Tooling included
lunette, flange, vasca filtro a carta, apparecchio epr interni
Open steadies
2
Closed steadies
1

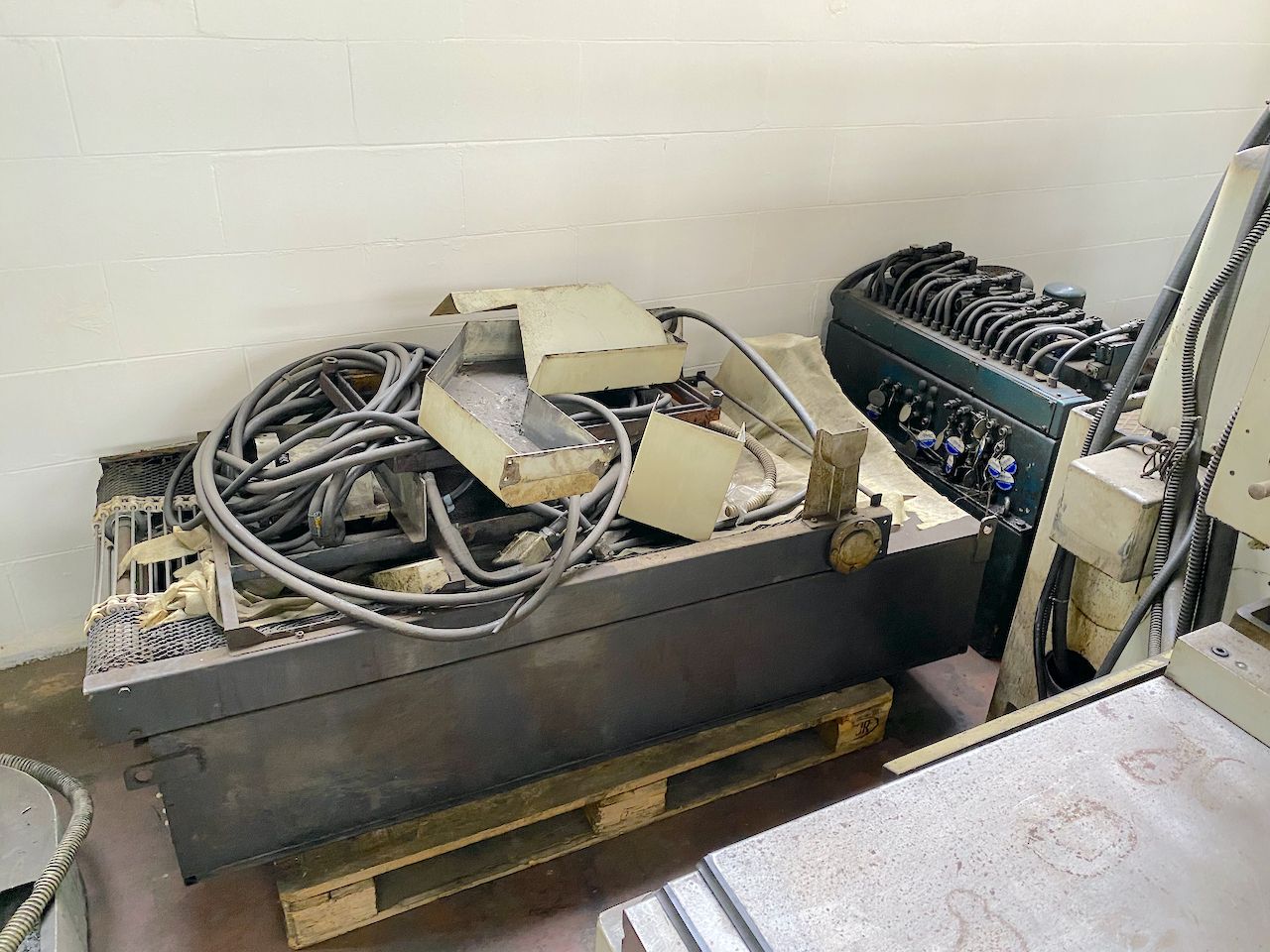

Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Floor space
4660x1950 mm183,46x76,77 in
