Category

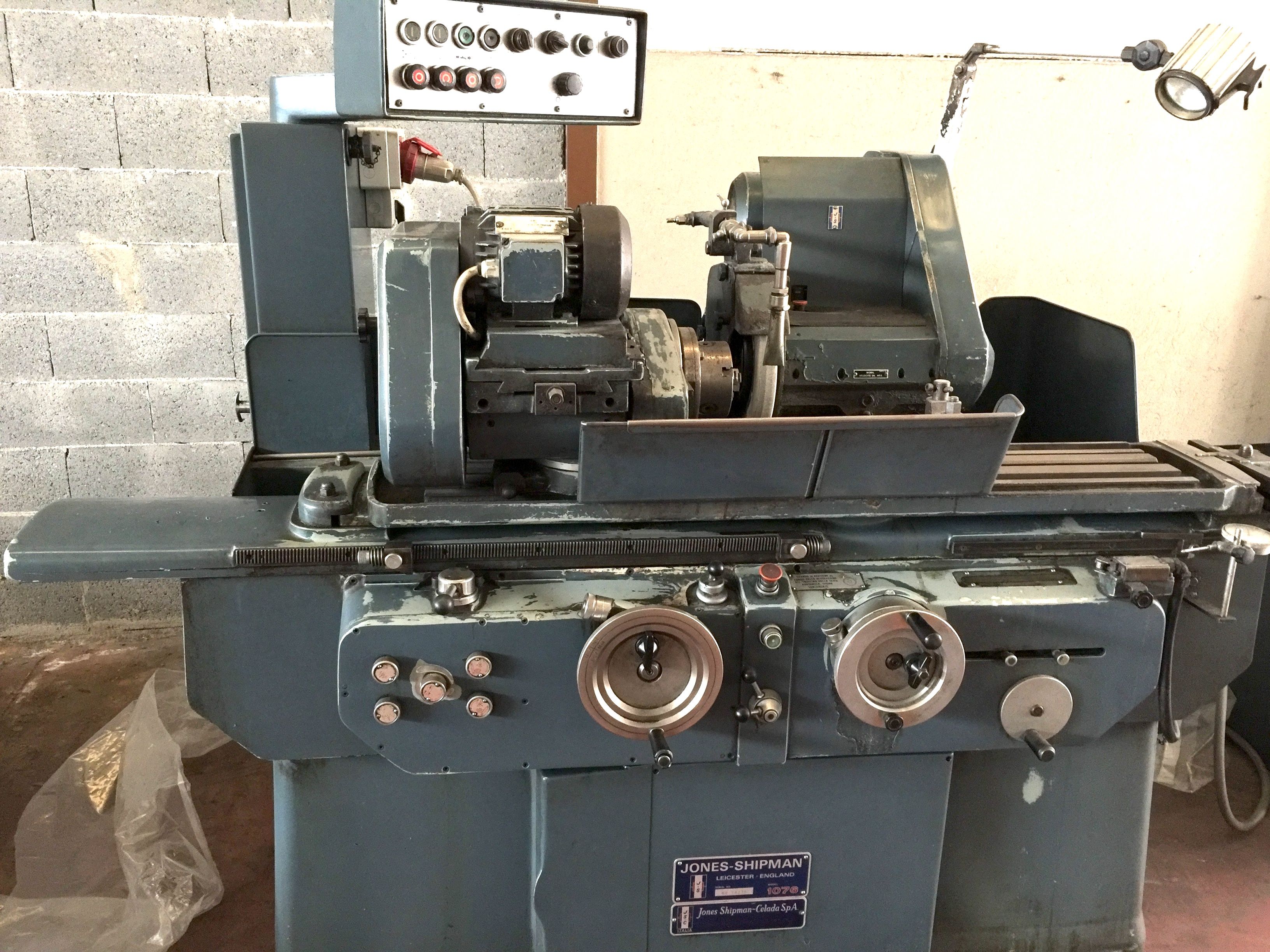

Grinding Machine
Type
ID/OD
Made

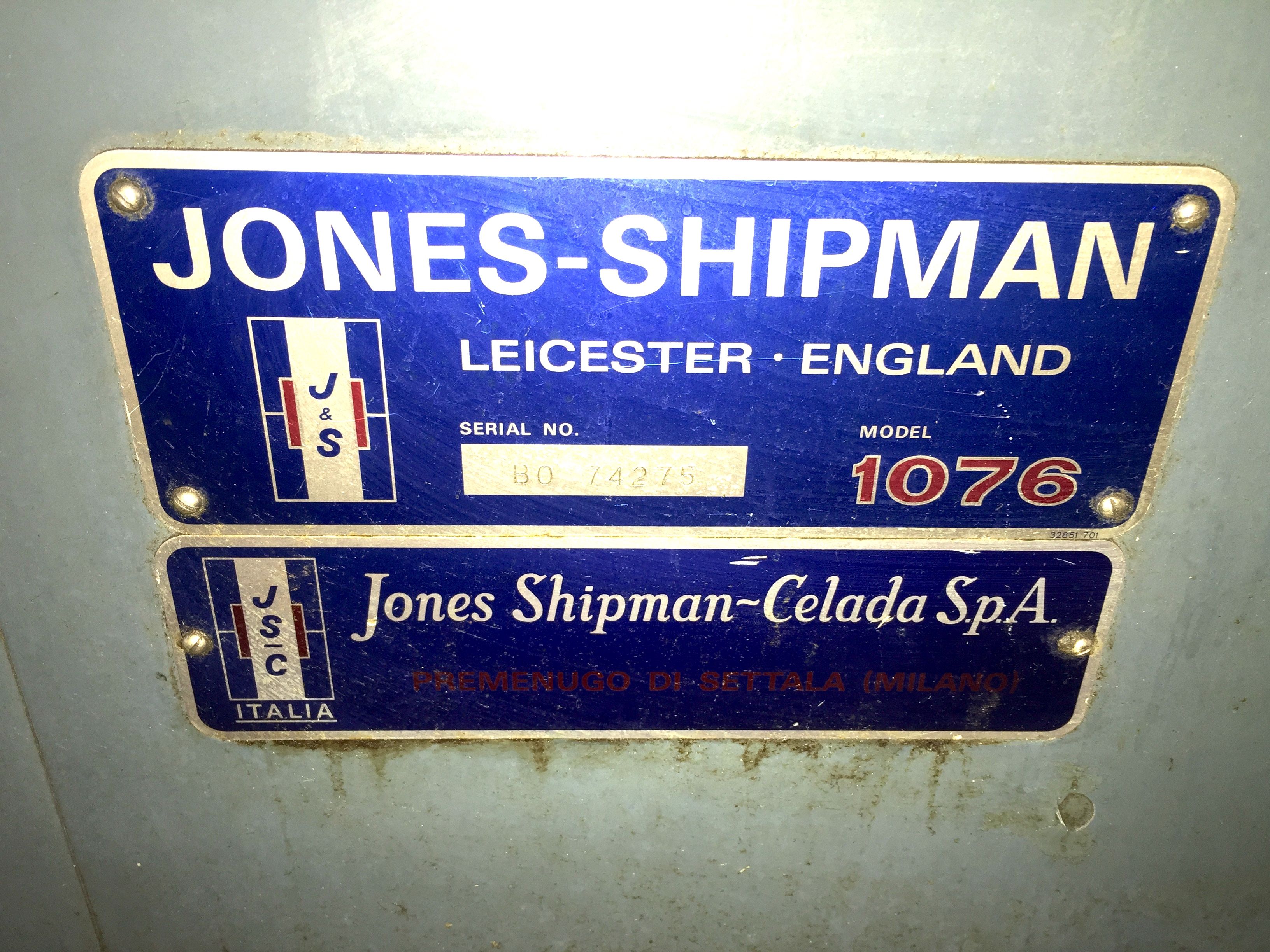

Model
1076
Capacity
254x868 mm10,00x34,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
686 mm27,01 in
Centres height
130 mm5,12 in
Max grinding diameter
254 mm10,00 in
TABLE
Tilt
+16/-18 °
WHEELHEAD
External spindle speed
2650 Rpm
Notes
testa girevole 180° con apparecchio per interni
RIGHT WHEEL
Max wheel diameter
406 mm15,98 in
Wheel band thickness
50 mm1,97 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
25-500 Rpm
EXTRA

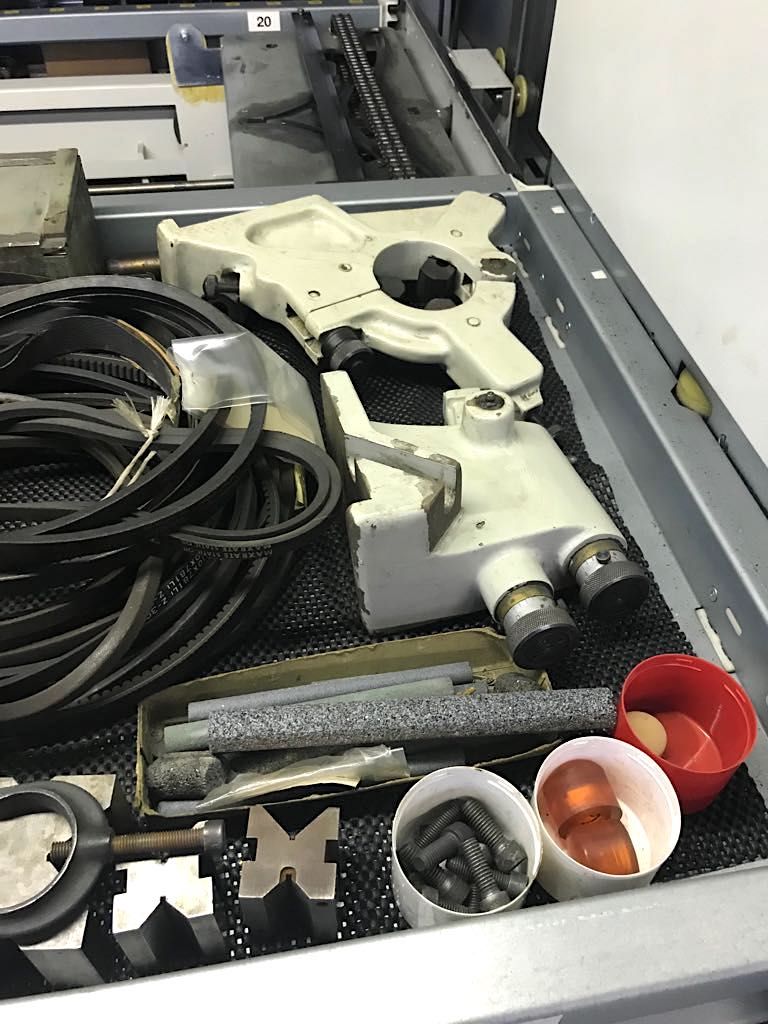

Open steadies
1
Closed steadies
1

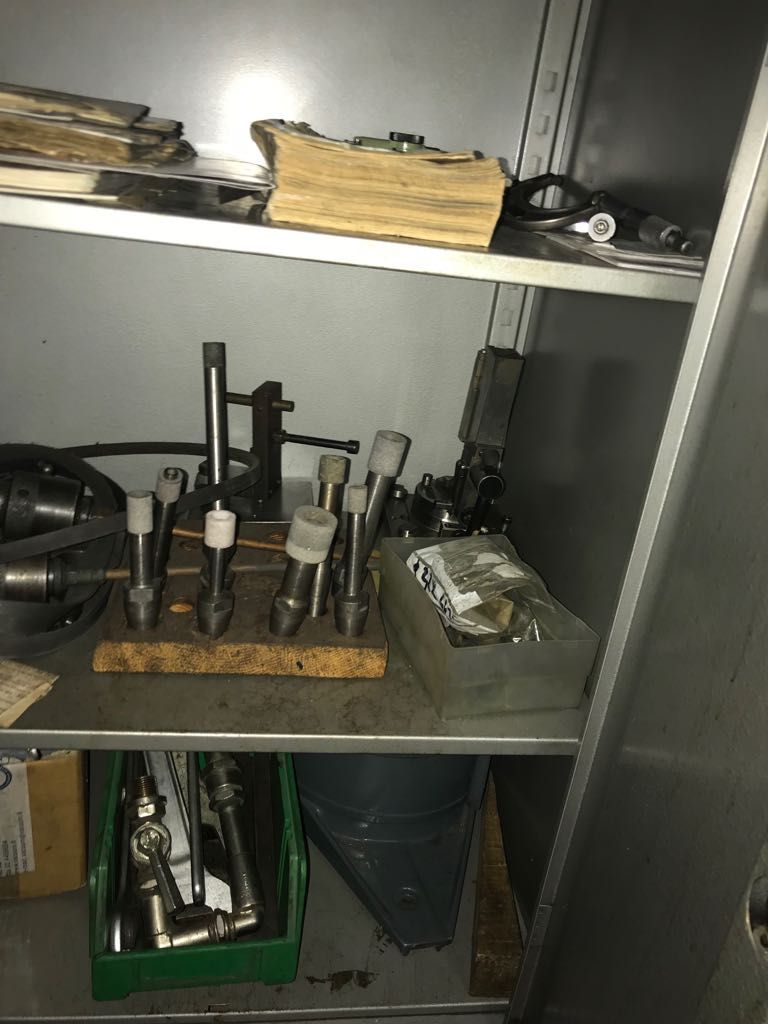

Tooling included

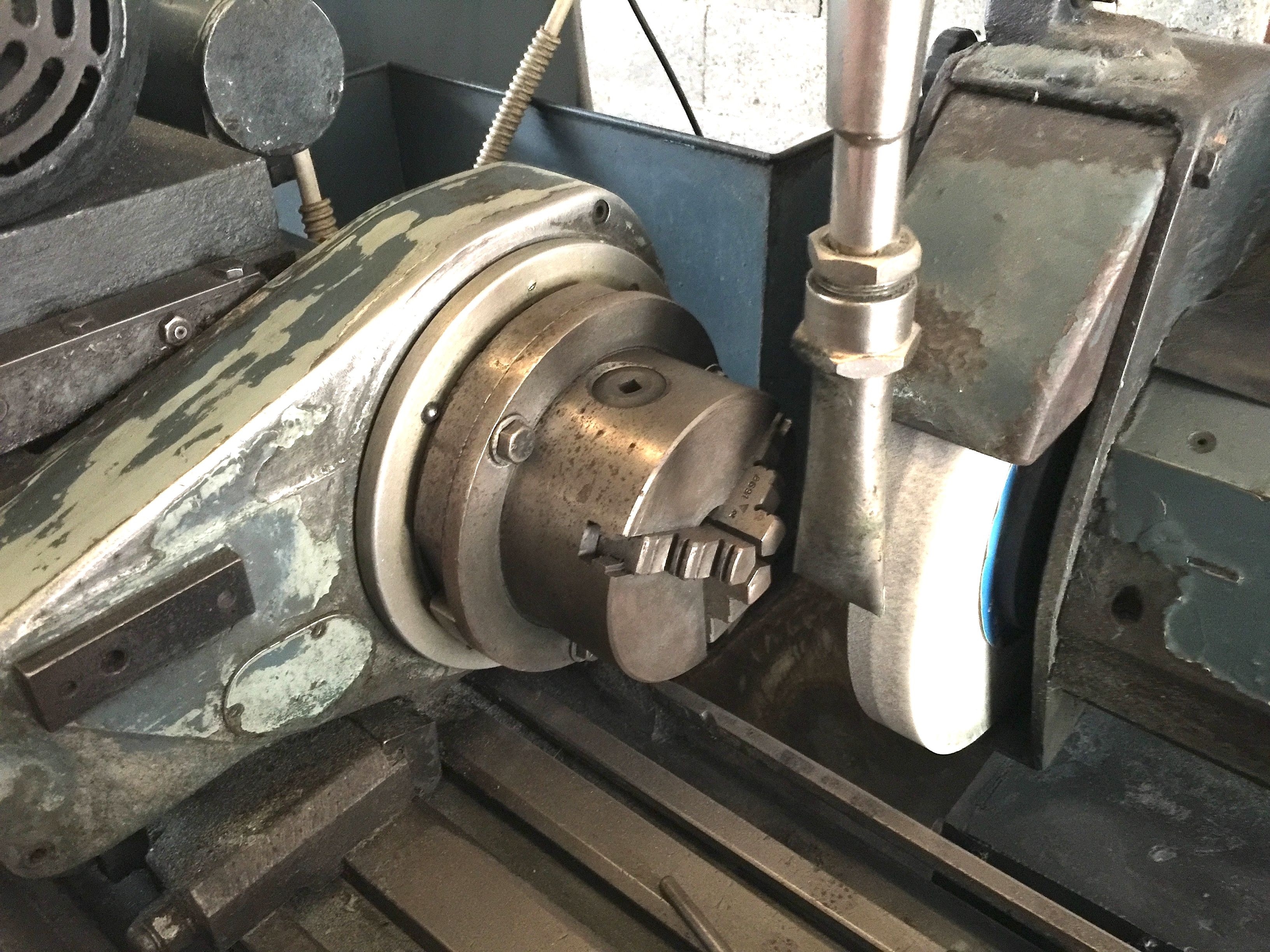

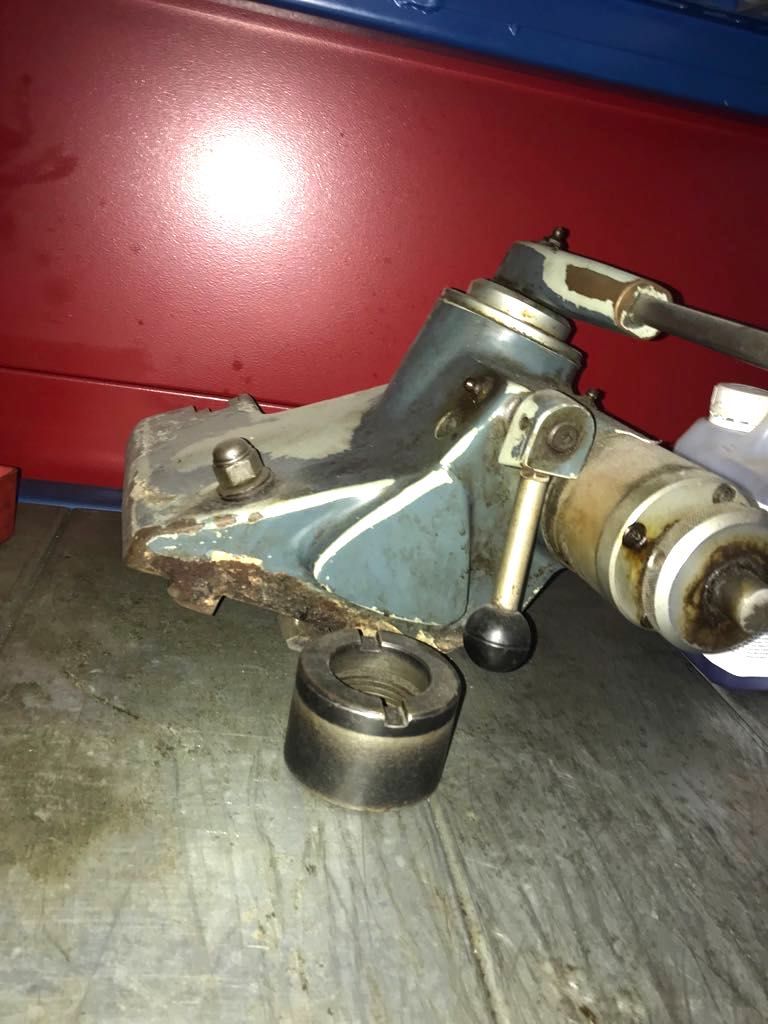

elettromandrino per interni

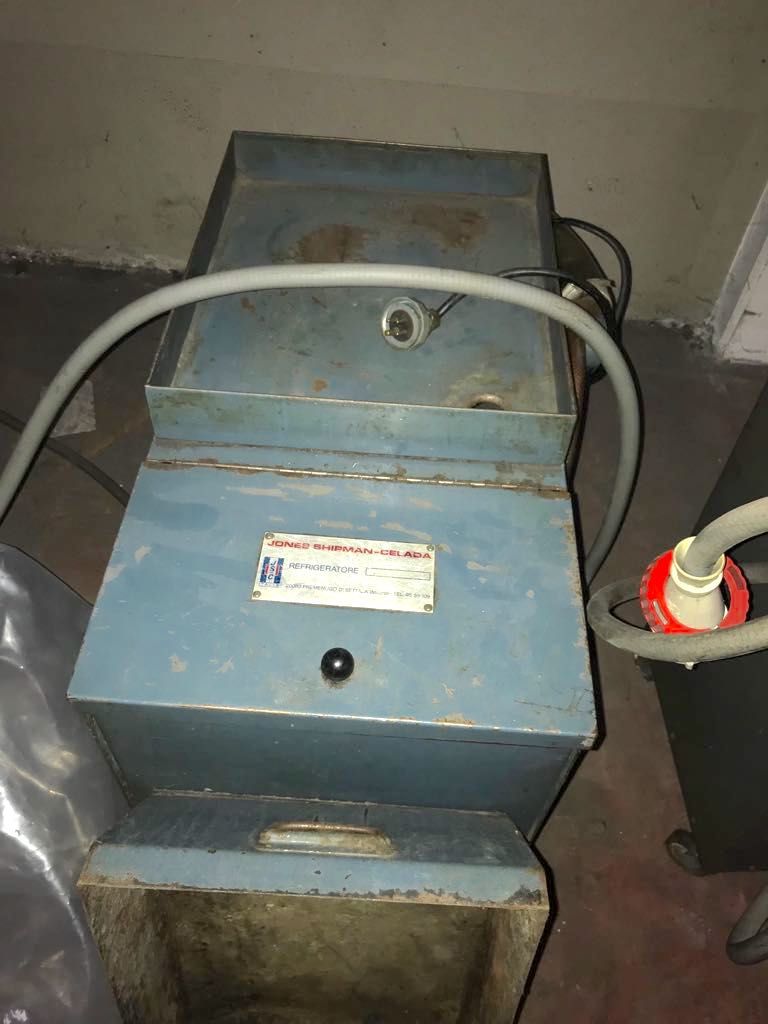

Filtration unit
si
Availability
pronta
Available in stock
si
Manual dresser
Yes
