Category

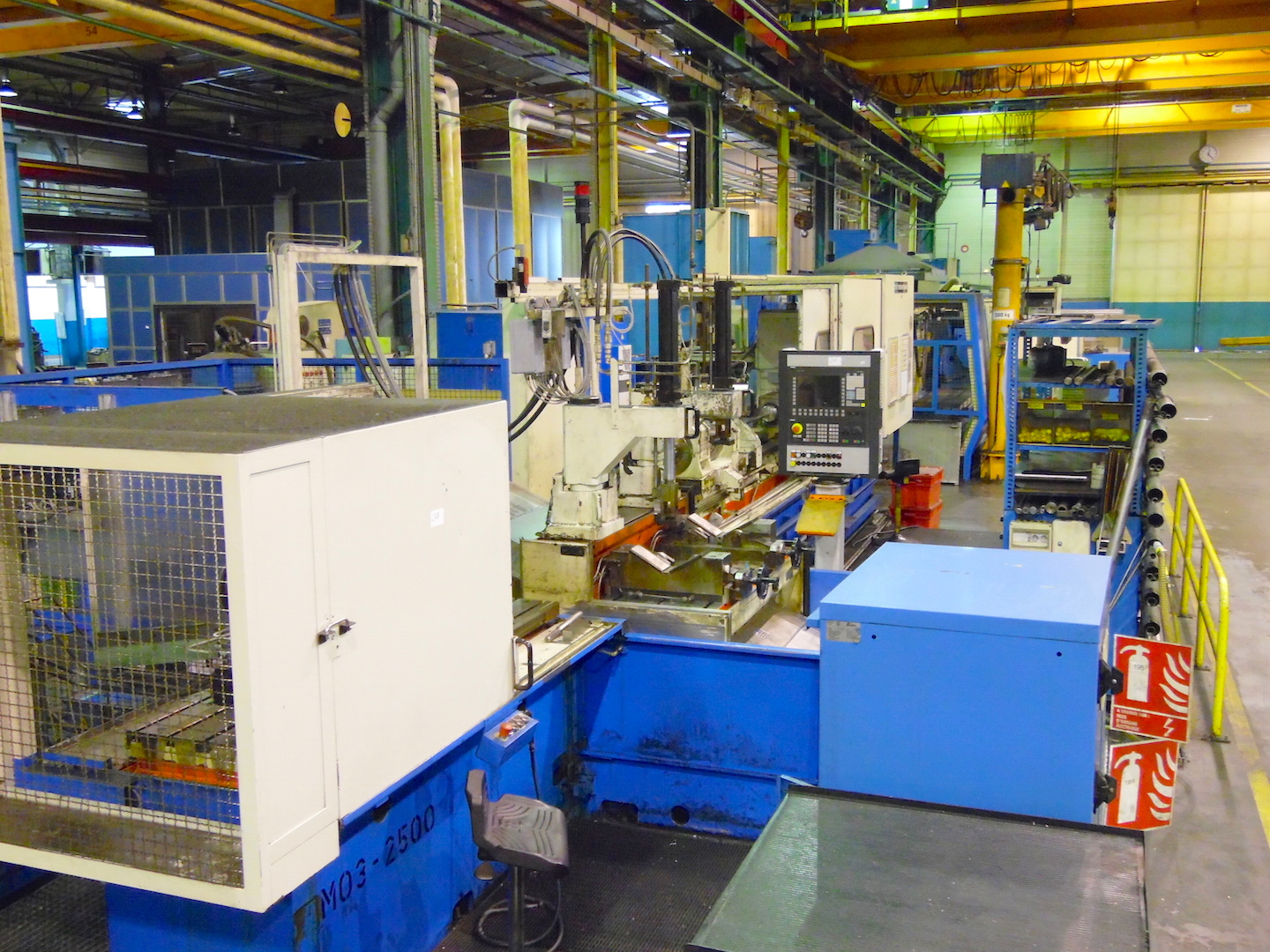

Drilling machine
Type
for deep holes for cylinders
Made
Model

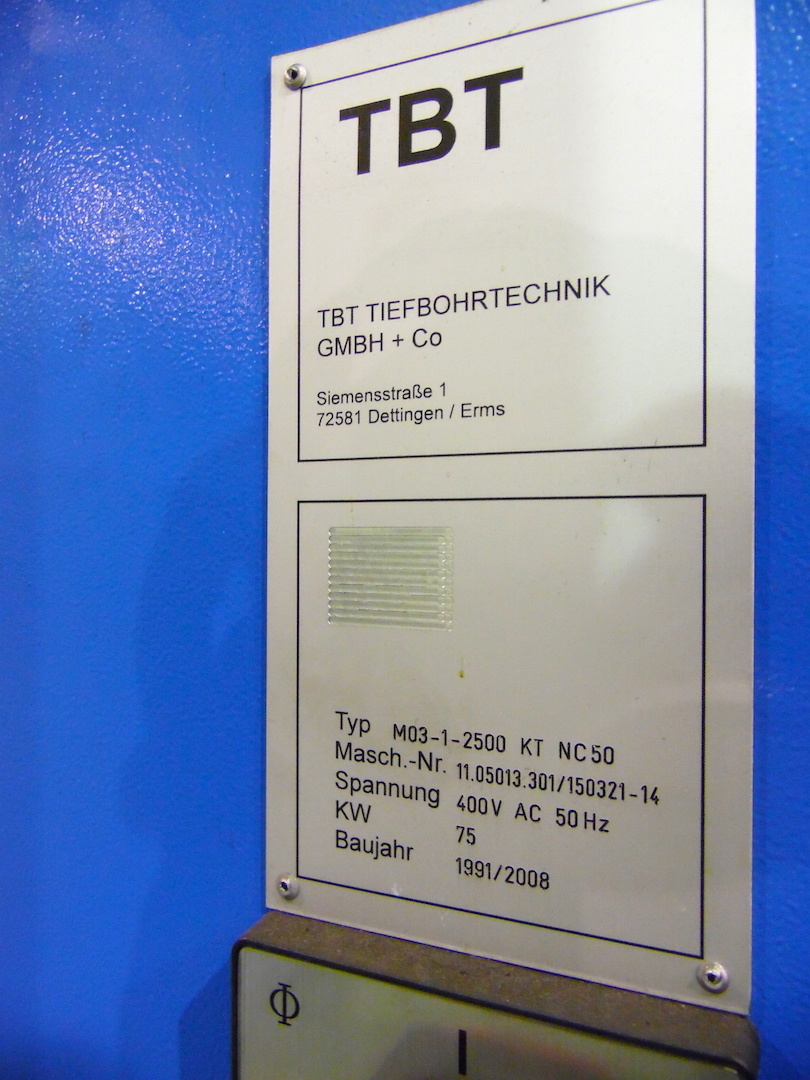

M03-1-2500 KT

Technical specifications

Metric Imperial
MANDRINO FORATURA
Capacità di foratura (diam min-max)
20-60 mm0,79-2,36 in
Tipo foratura
BTA / Gundrill
Max profondità foratura
2500 mm98,43 in
Potenza mandrino foratura
37 Kw
Velocità mandrino foratura
200-3600 Rpm
Avanzamenti rapidi
7 m/min275,59 ipm

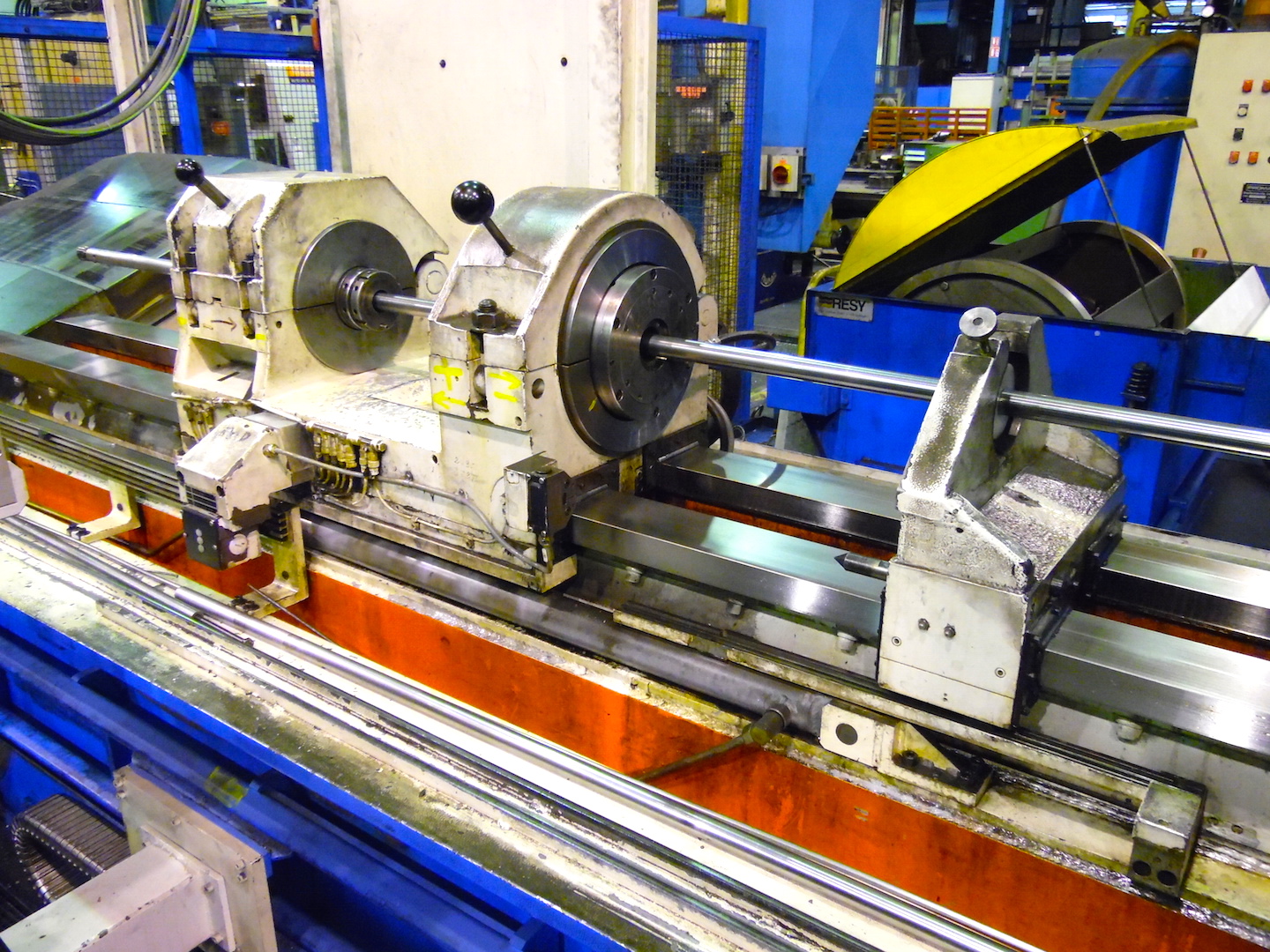

TESTA PORTA PEZZO
Diametro massimo pezzo
140-450 mm5,51-17,72 in
Lunghezza massima pezzo
2500 mm98,43 in
TABLE
Sizes
1200x520 mm47,24x20,47 in
Corsa X
700 mm27,56 in
Corsa Y
700 mm27,56 in
CNC
Azionamenti assi
Siemens Simodrive 611
Notes

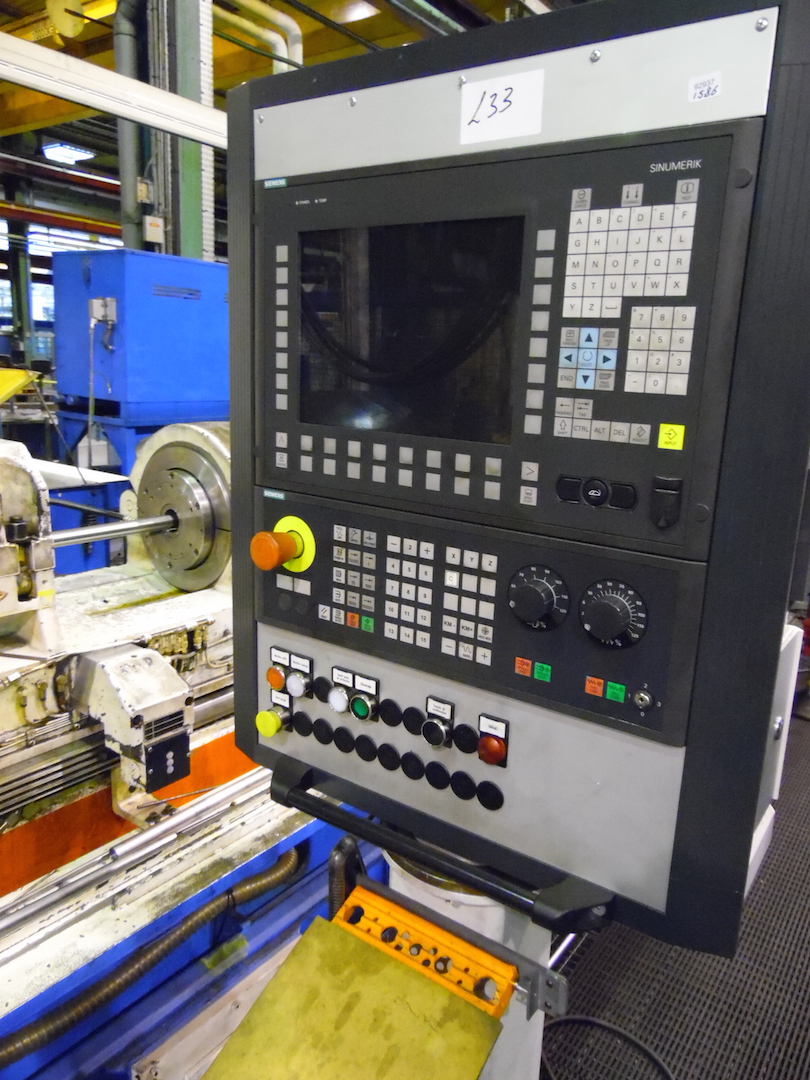

SIEMENS SINUMERIK 840D
SISTEMA REFRIGERANTE
Numero pompe
2
Capacità vasca
2000 l
Capacity
2-180 l/min
EXTRA
Numero mandrini
1
Total power supply
60 Kw
Machine weight
15000 kg
Chip conveyor
si
Housing
integrale
