Category

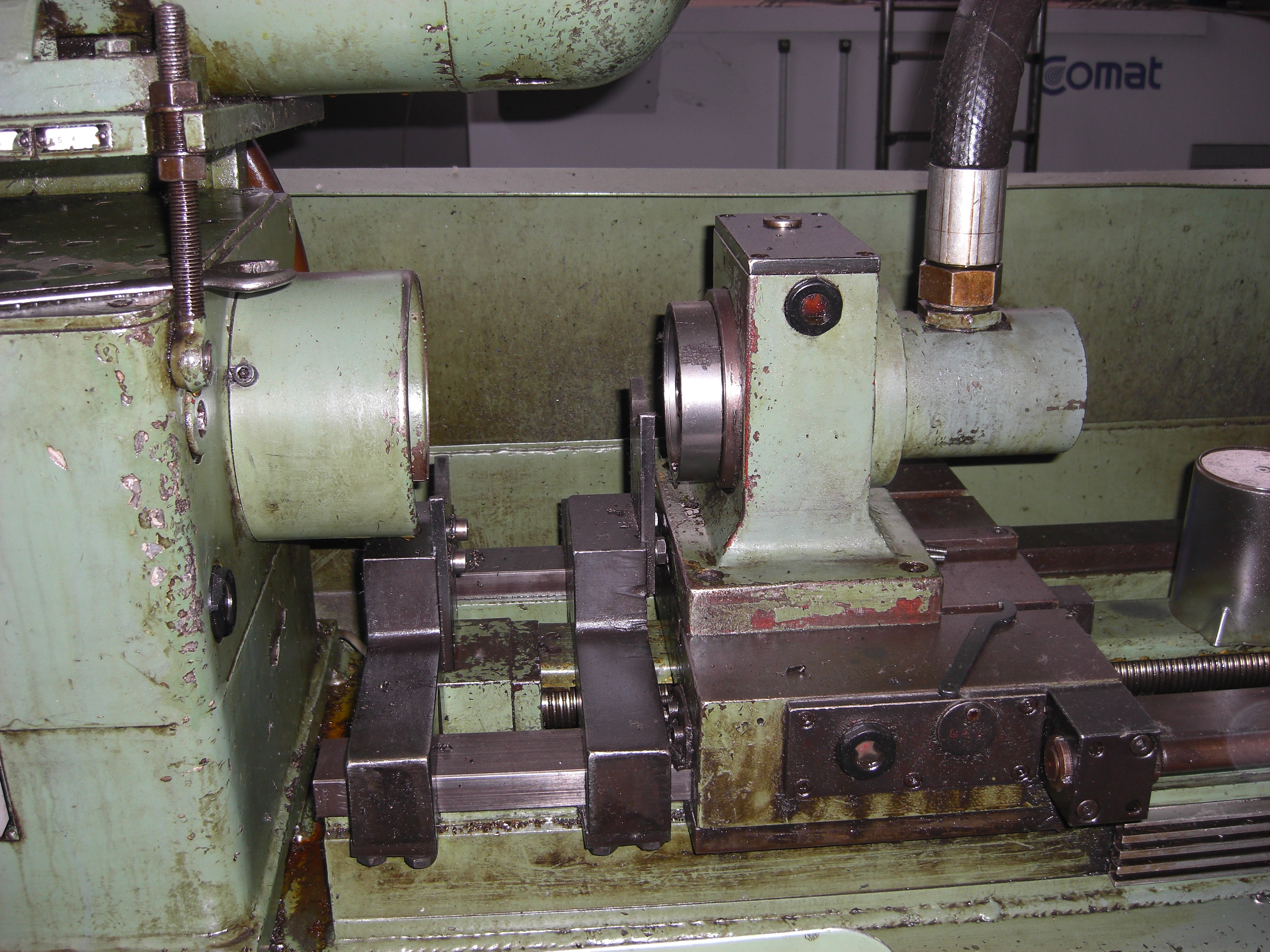

Drilling machine
Type
for deep holes for cylinders
Made
Model
B 17/1

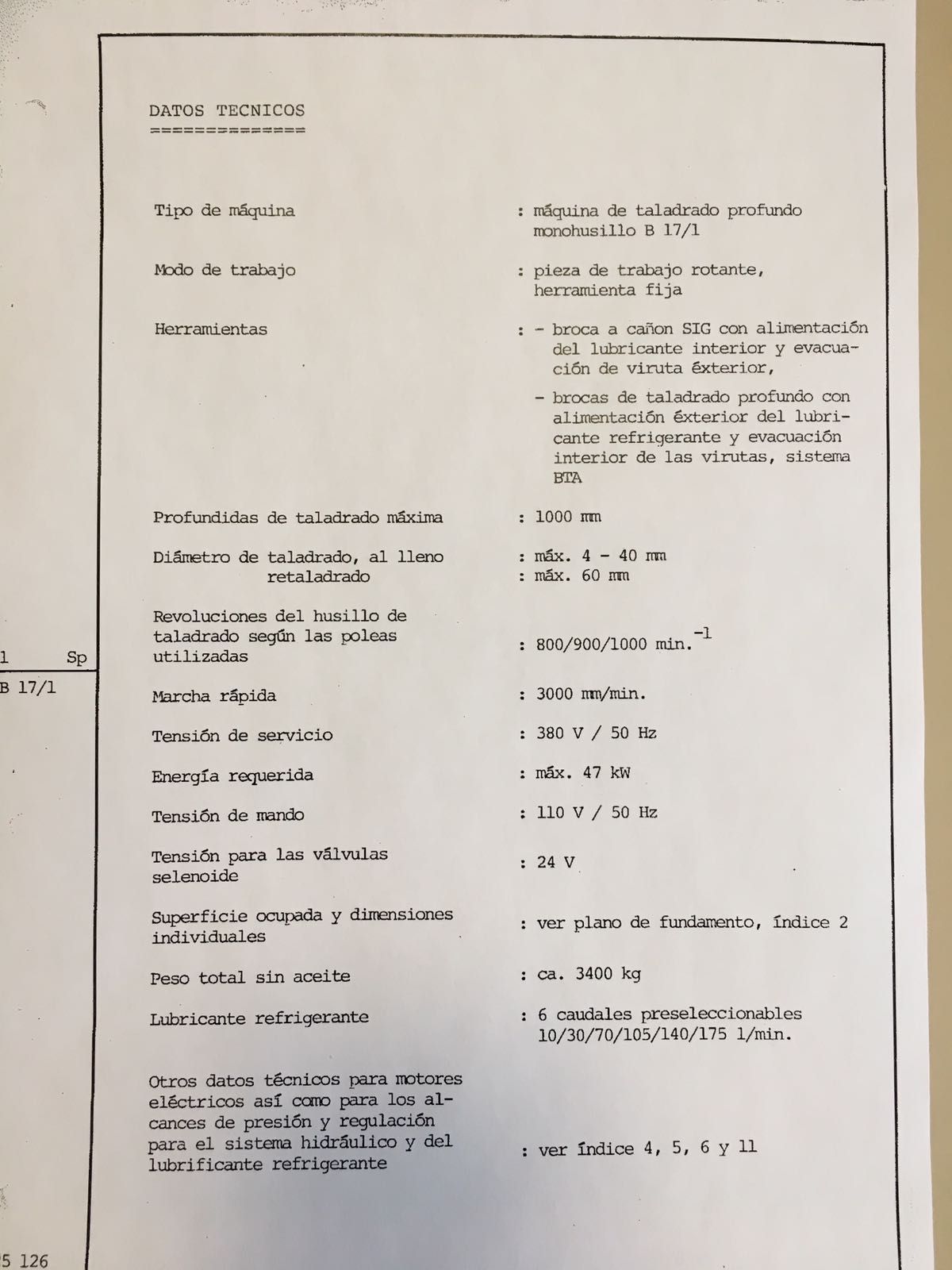

Technical specifications

Metric Imperial
MANDRINO FORATURA
Capacità di foratura (diam min-max)
4-40 mm0,16-1,57 in
Tipo foratura
BTA - Gundrill
Potenza mandrino foratura
22 Kw
Velocità mandrino foratura
7000 Rpm
Avanzamenti rapidi
3000 m/min118.110,00 ipm
Max profondità foratura
1100 mm43,31 in
TESTA PORTA PEZZO
Lunghezza massima pezzo
1100 mm43,31 in

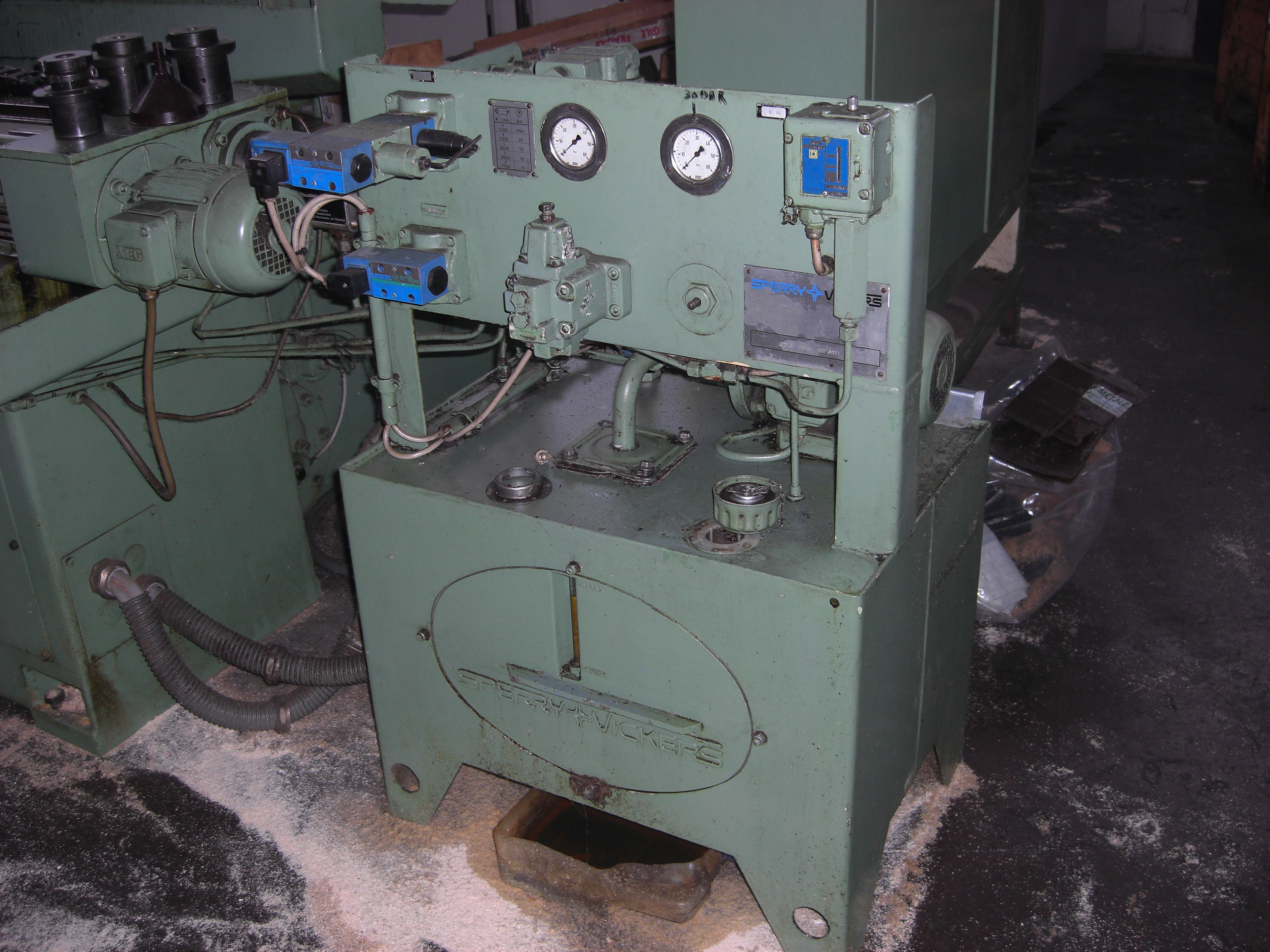

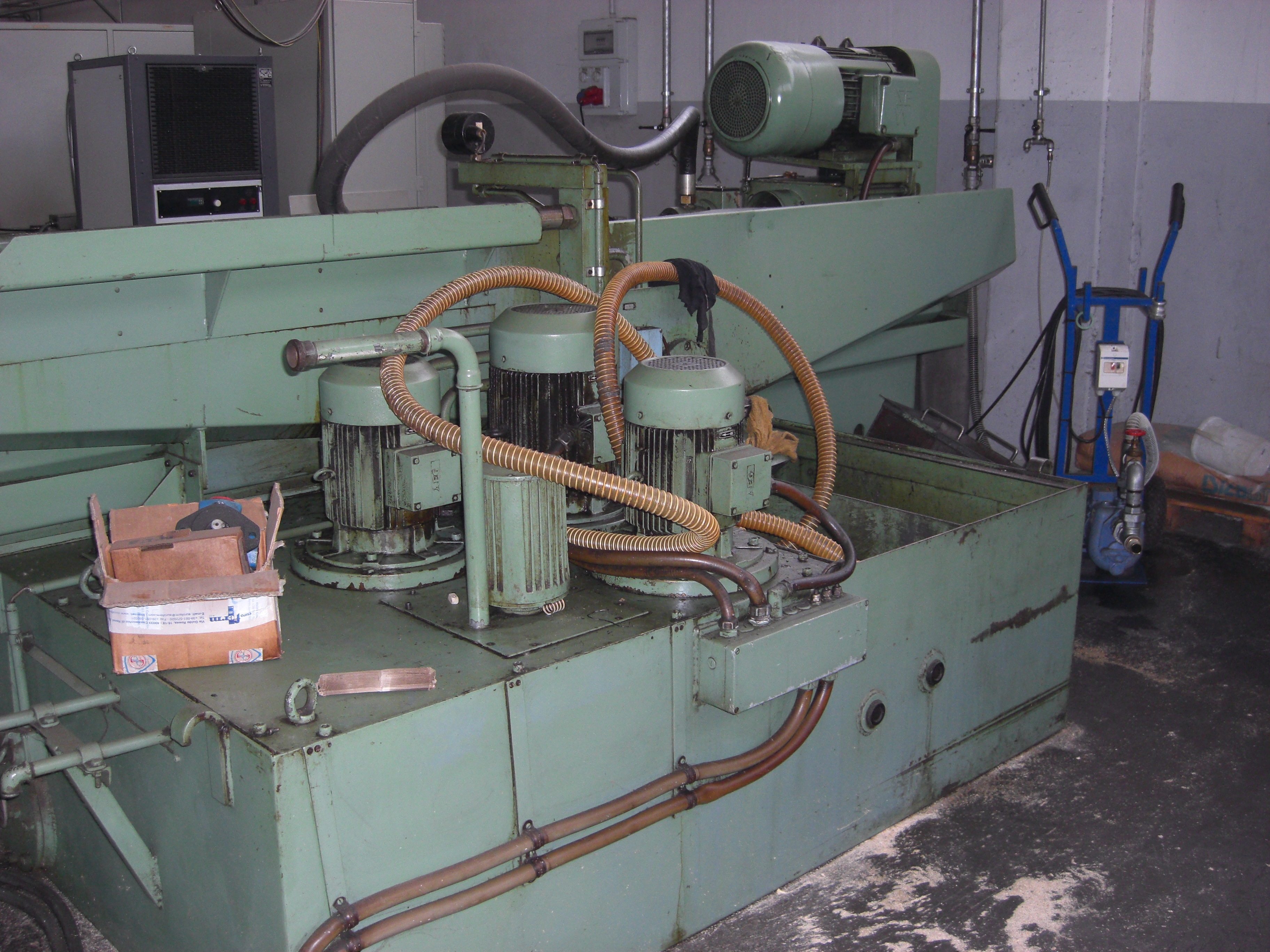

SISTEMA REFRIGERANTE
Numero pompe
3
Capacità vasca
800 l
EXTRA
Numero mandrini
1
Machine weight
4000 kg
Foratura punta cannone
si
Foratura BTA
si
Notes
avanzamento asse a vite
