Category
Drill
Type
Made
Model

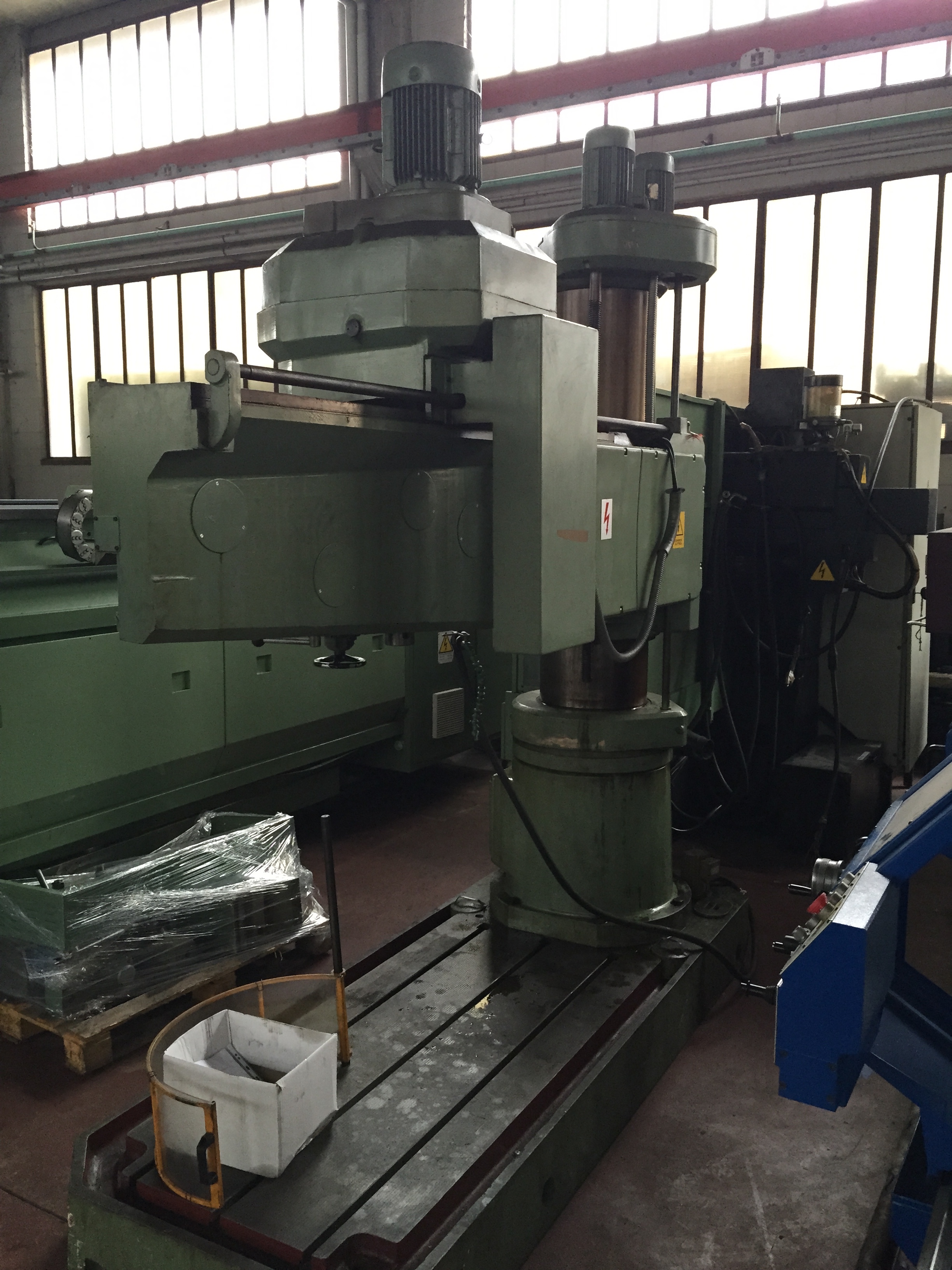

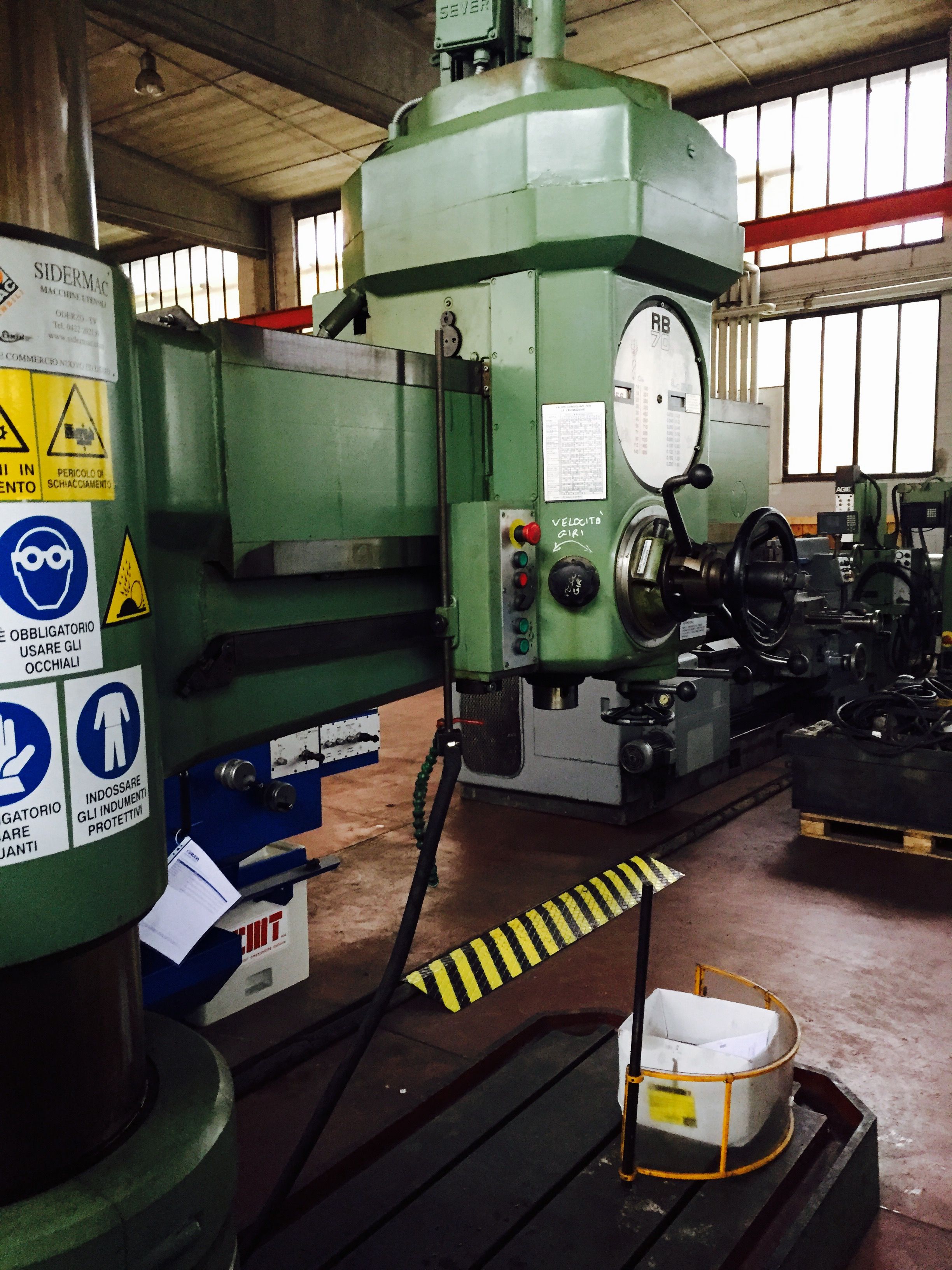

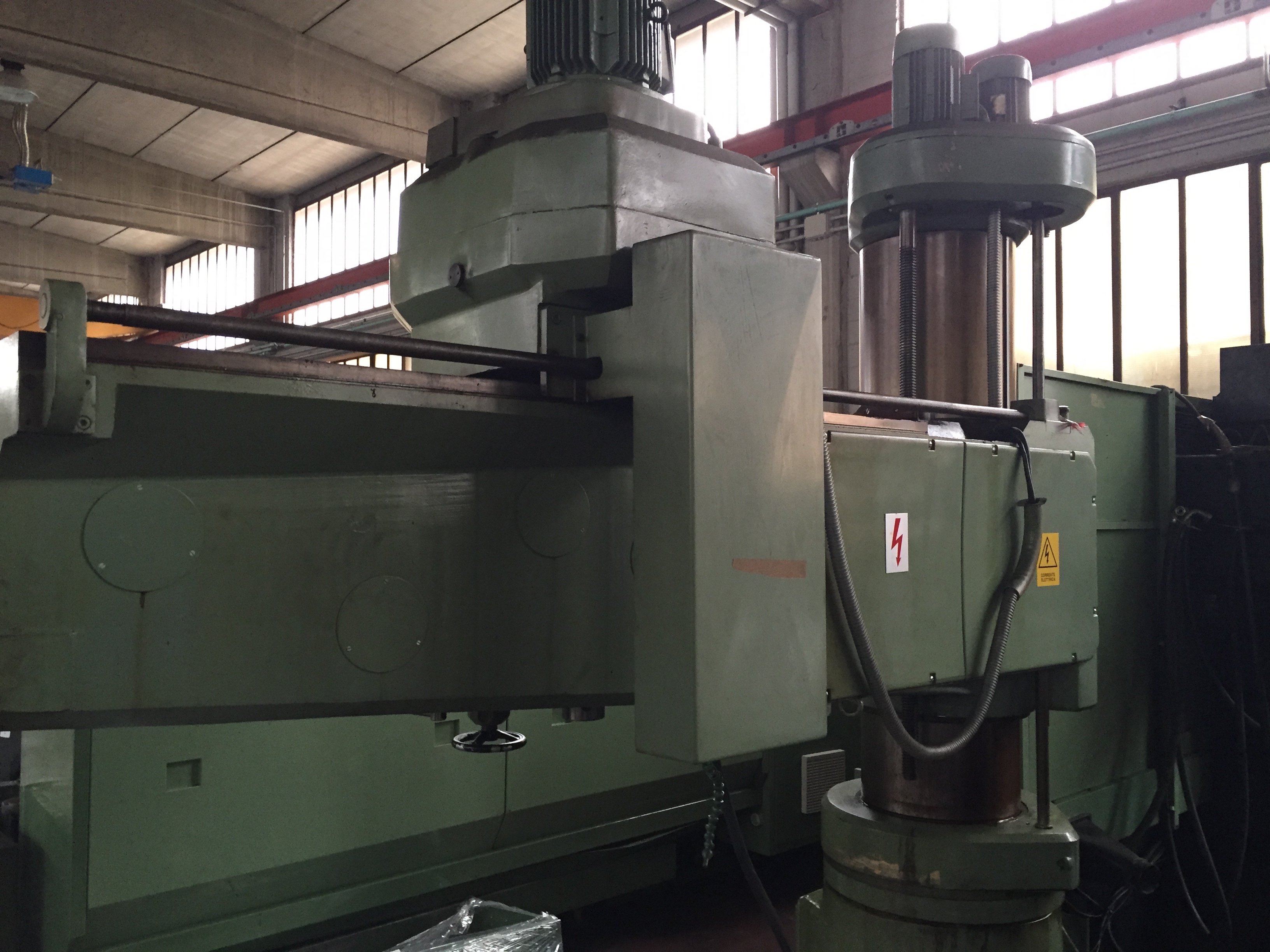

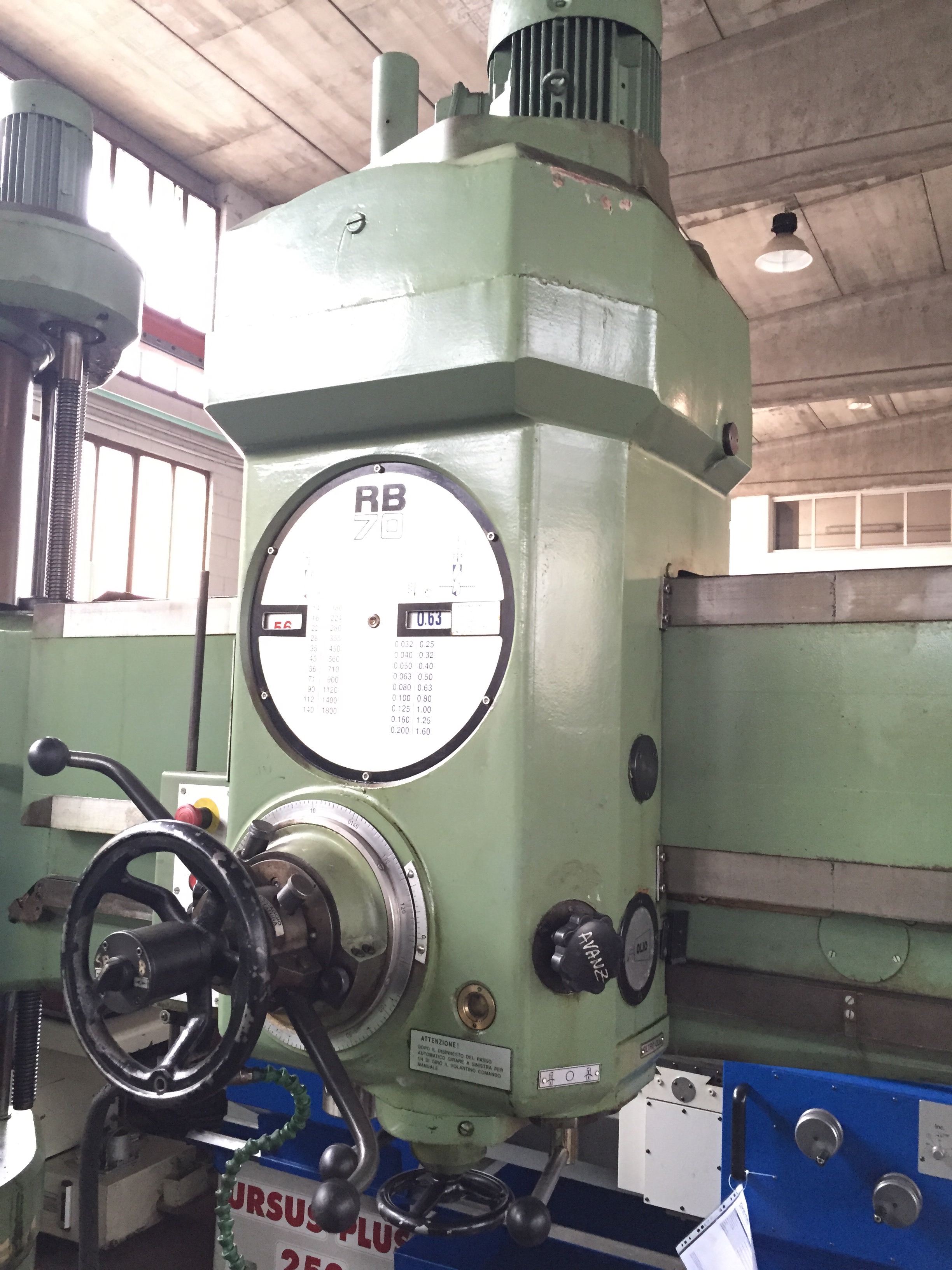

RB70 70x1600
Capacity
80x1600 mm3,15x62,99 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Arm lenght
1600 mm62,99 in
Drilling capacity
80 mm3,15 in
Tapping capacity
M76x2 mmM2,99x0,08 in
Boring capacity
130 mm5,12 in
Crossrail vertical stroke (Z)
1100 mm43,31 in
Quill stroke (W)
400 mm15,75 in
SPINDLE
Spindle taper
ISO40
Spindle power
5,5 Kw

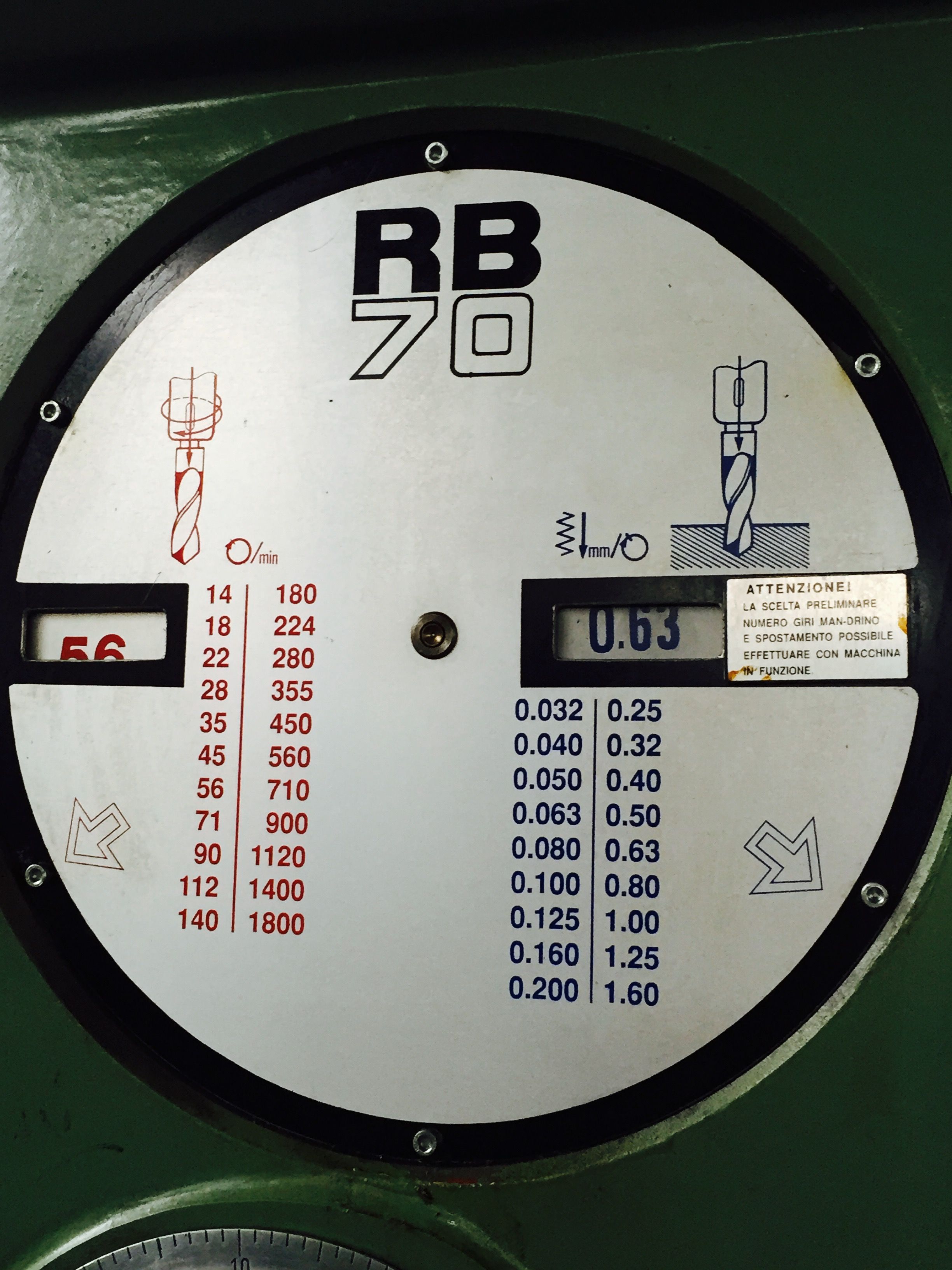

Spindle speed
14 - 1.800 Rpm

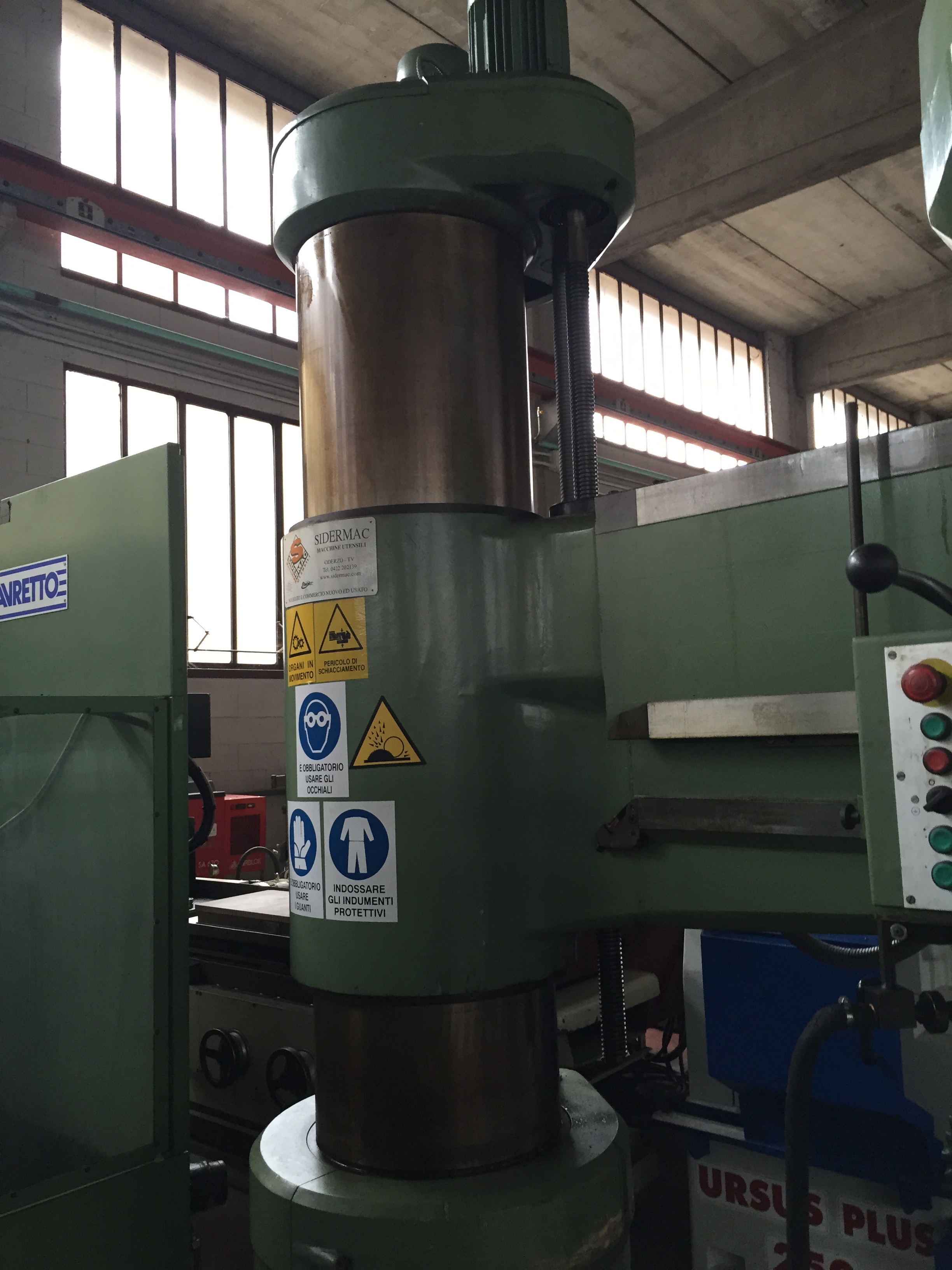

Column diameter
400 mm15,75 in
Spindle nose - table distance min/max
500-1600 mm19,69-62,99 in
EXTRA
Total power supply
7,5 Kw
Machine weight
4600 Kg
Floor space
ø4400 mmø173,23 in
Swivable cube
No
Mantainance & Use books
Yes
Electrical drawings
Yes

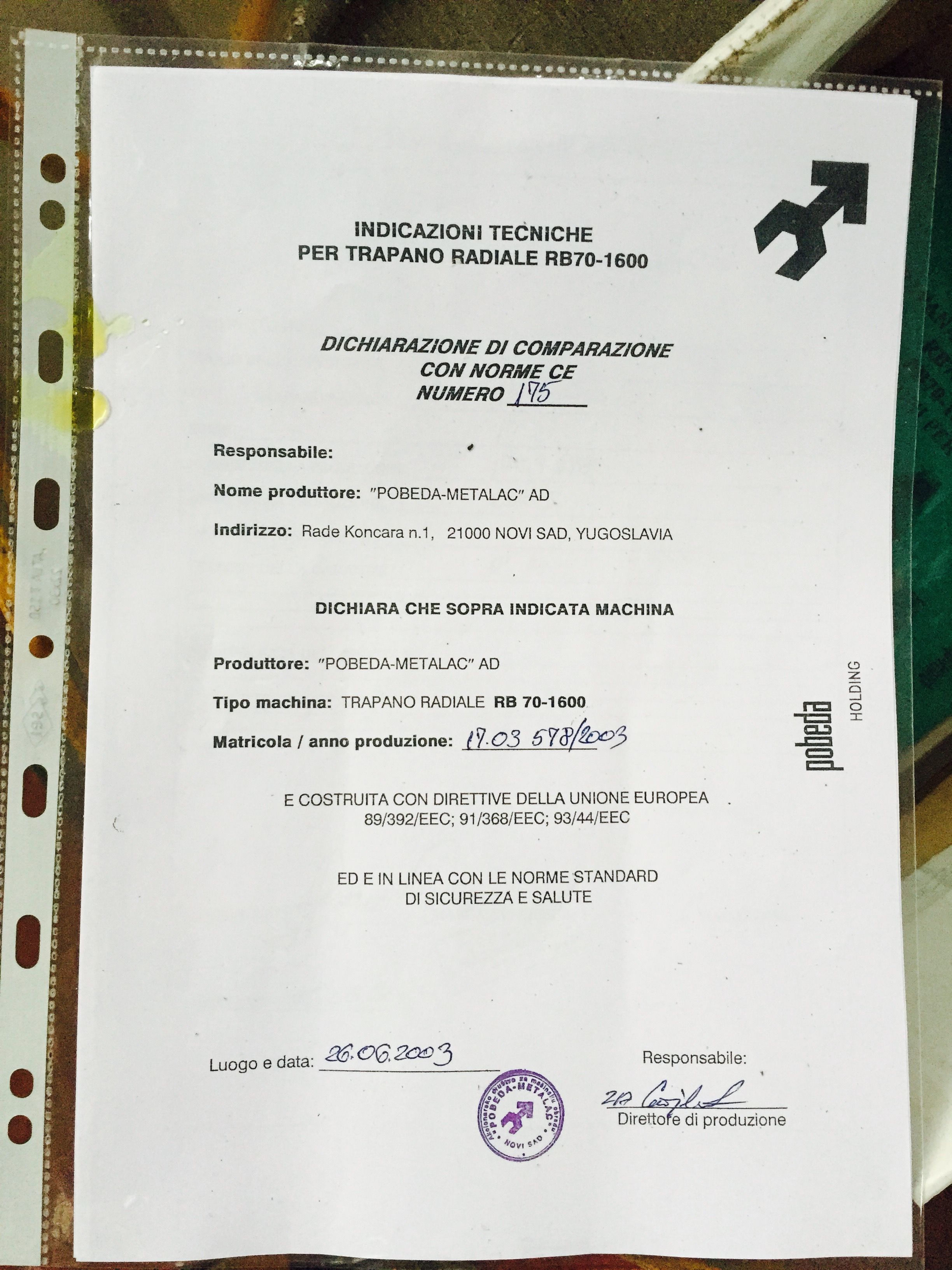

CE Certification
Yes
Housing
protezione area mandrino
Availability
pronta
Available in stock
Yes
Available under power
Yes
