Category
Drill
Type
Made
Model
FR40/1300
Capacity
40x1300 mm1,57x51,18 in

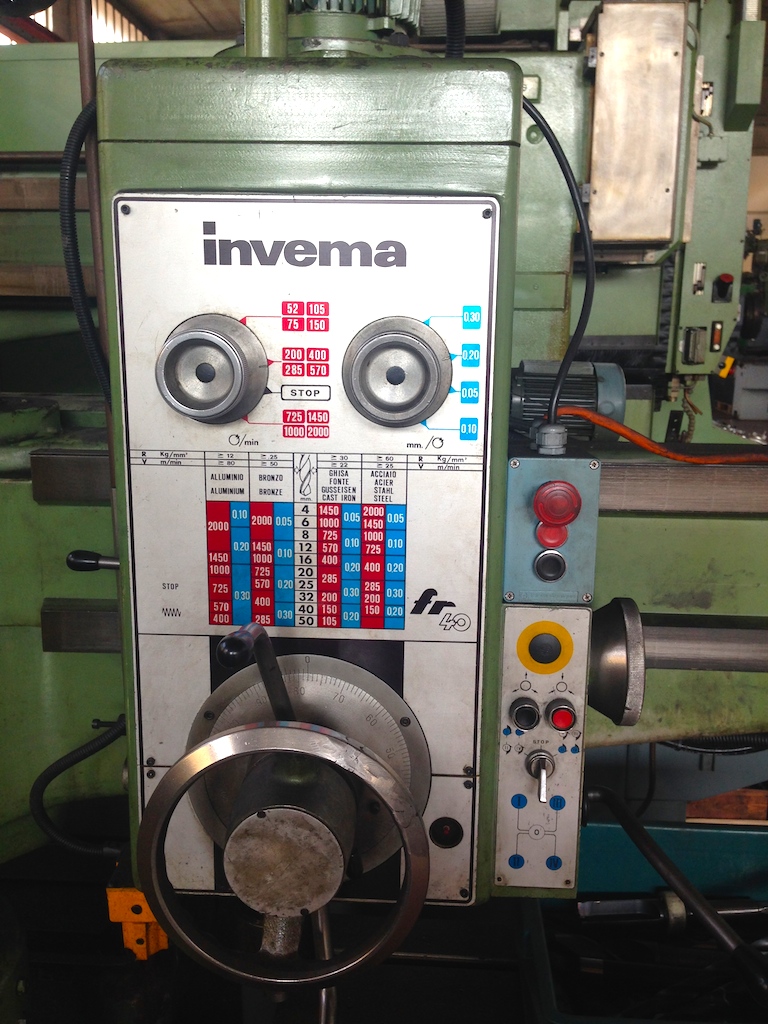

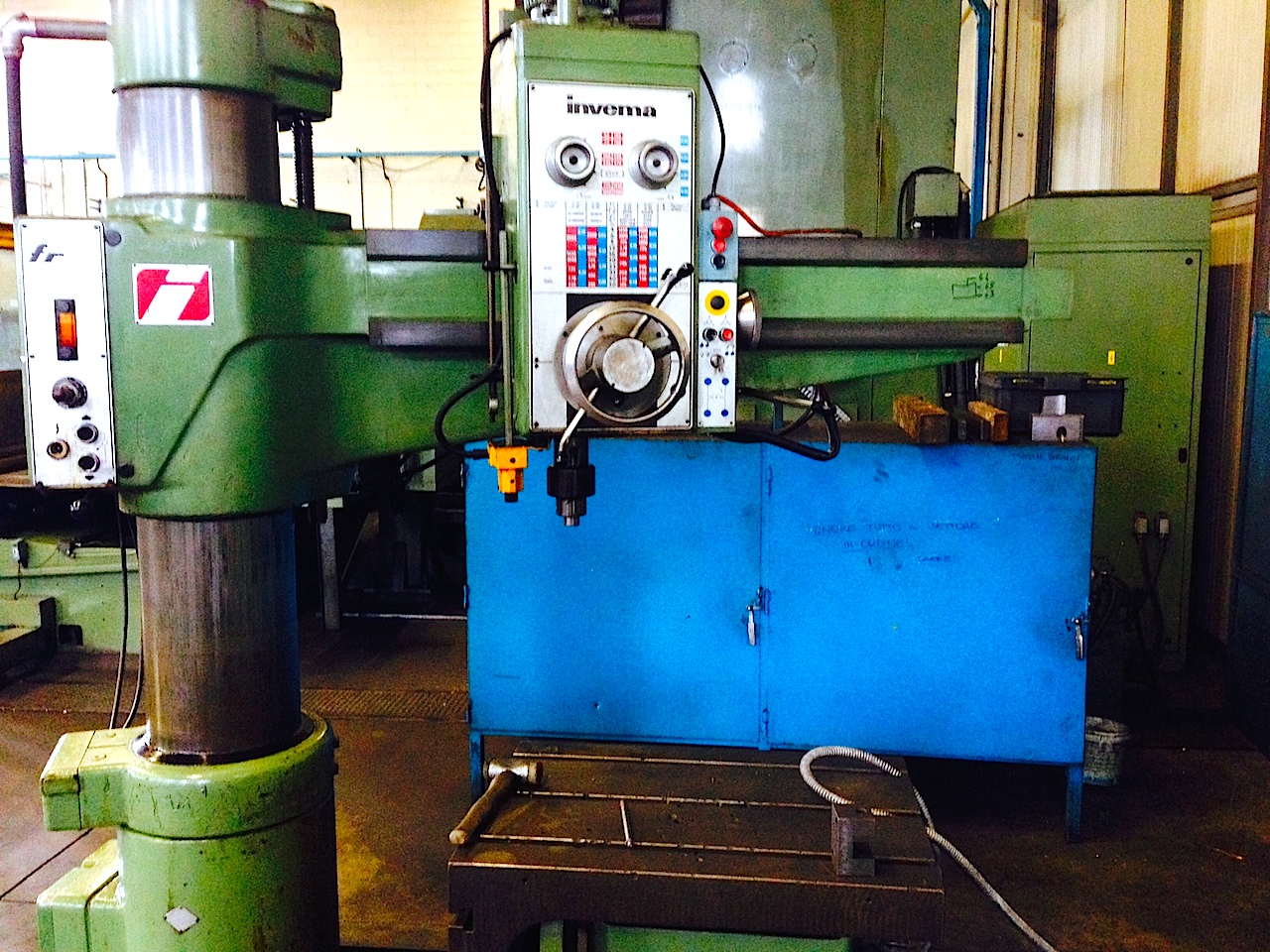

INVEMA FR40/1300
All the machines are available subject to prior sale

Technical specifications

Metric Imperial
WORKING CAPACITY
Drilling capacity
40 mm1,57 in
Boring capacity
60 mm2,36 in
Arm lenght
1300 mm51,18 in
Cross head stroke (X)
1100 mm43,31 in
Crossrail vertical stroke (Z)
1125 mm44,29 in
Quill stroke (W)
280 mm11,02 in
SPINDLE
Spindle taper
MK4
Spindle speed
52-2400 Rpm
Quill diameter
68 mm2,68 in
Spindle nose - table distance min/max
350-1240 mm13,78-48,82 in

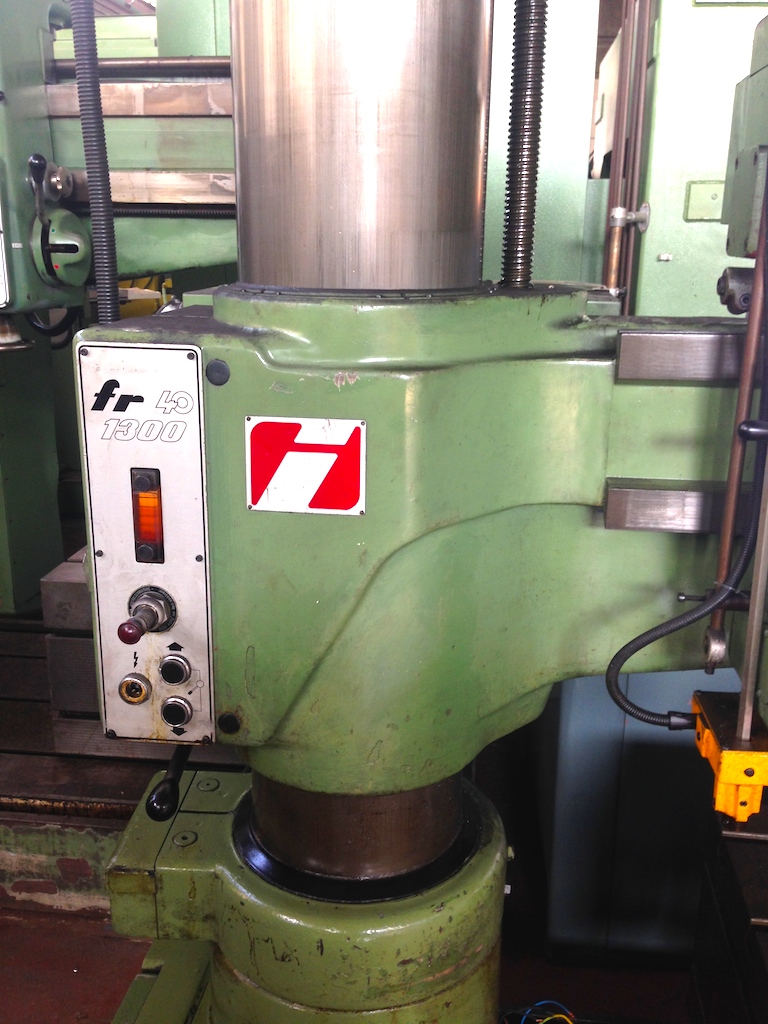

Column diameter
250 mm9,84 in
Spindle power
4 Kw
EXTRA

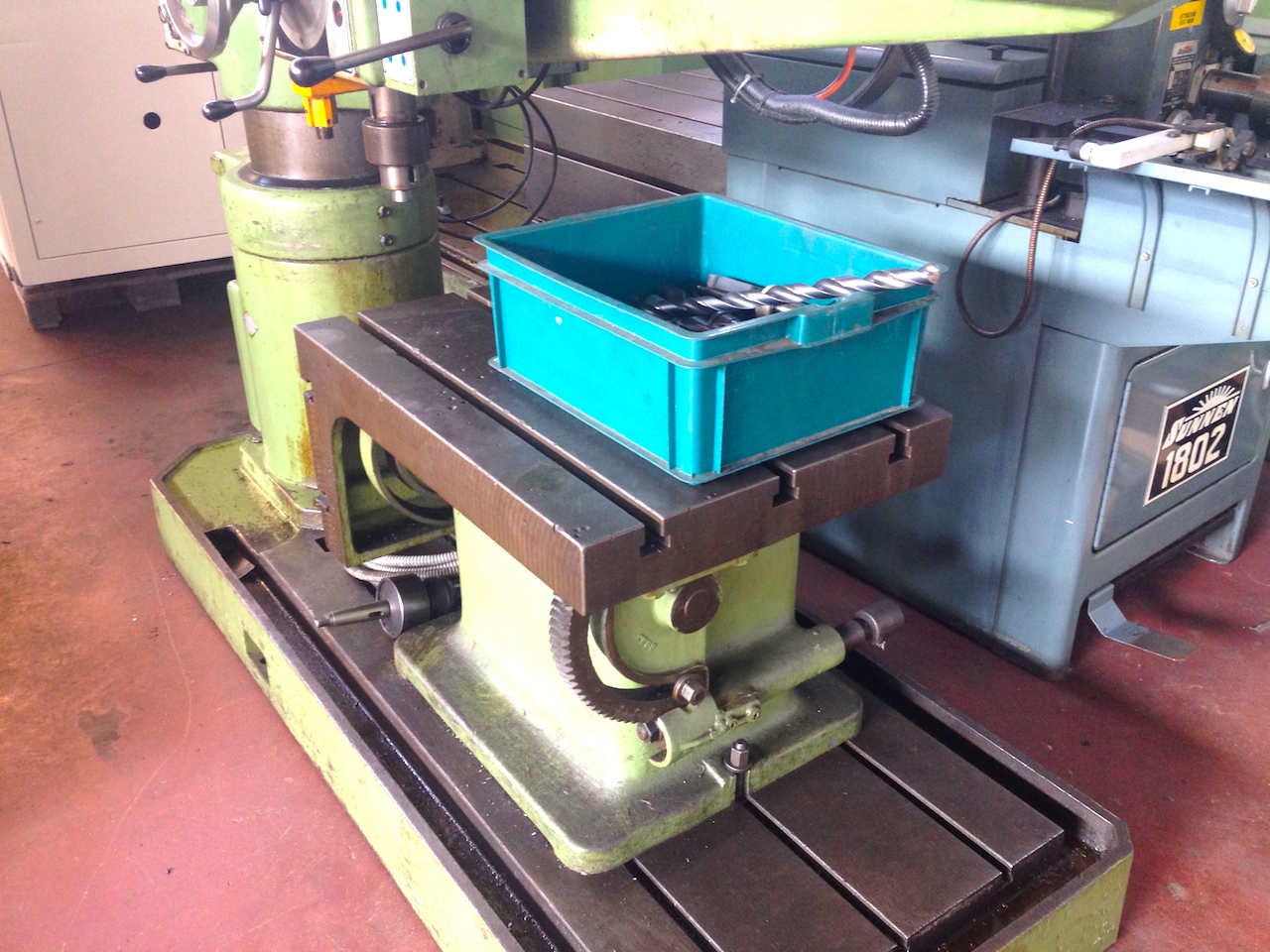

Swivable cube
Yes
Machine weight
2500 Kg
Total power supply
5,5 Kw
Availability
pronta
Available in stock
Yes
Available under power
Yes
