Category
Drill
Type
Made
Model
F60
Capacity
60mm x 2000 x 1300 mm2,36mm x 78,74 x 51,18 in

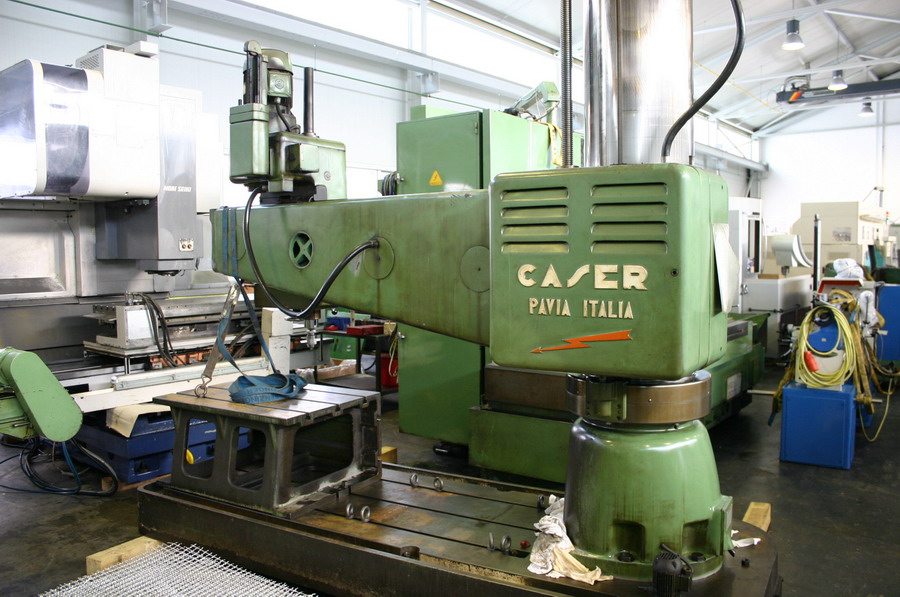

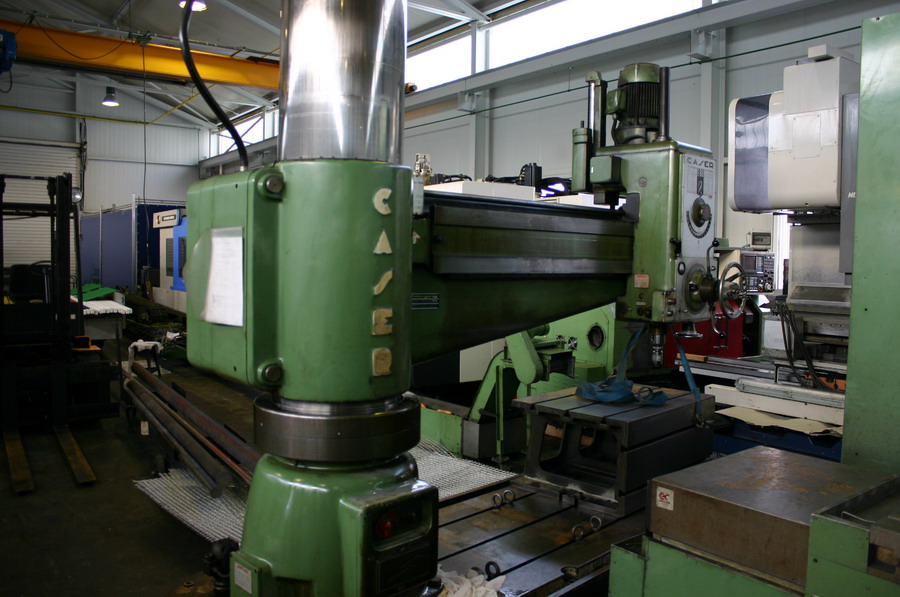

CASER F60
All the machines are available subject to prior sale

Technical specifications

Metric Imperial
WORKING CAPACITY
Quill stroke (W)
450 mm17,72 in
Crossrail vertical stroke (Z)
1300 mm51,18 in
Cross head stroke (X)
1700 mm66,93 in
Arm lenght
2000 mm78,74 in
Drilling capacity
60 mm2,36 in
Boring capacity
170 mm6,69 in
Tapping capacity
80 mm3,15 in
SPINDLE
Quill diameter
90 mm3,54 in
Spindle taper
MK5
Spindle power
5 Kw
Spindle speed
29-1700 Rpm
EXTRA
Swivable cube
Yes
Available in stock
Yes
Available under power
Yes
Availability
pronta
Relevant updates made on the machine
Bloccaggi Idraulici
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
