Category

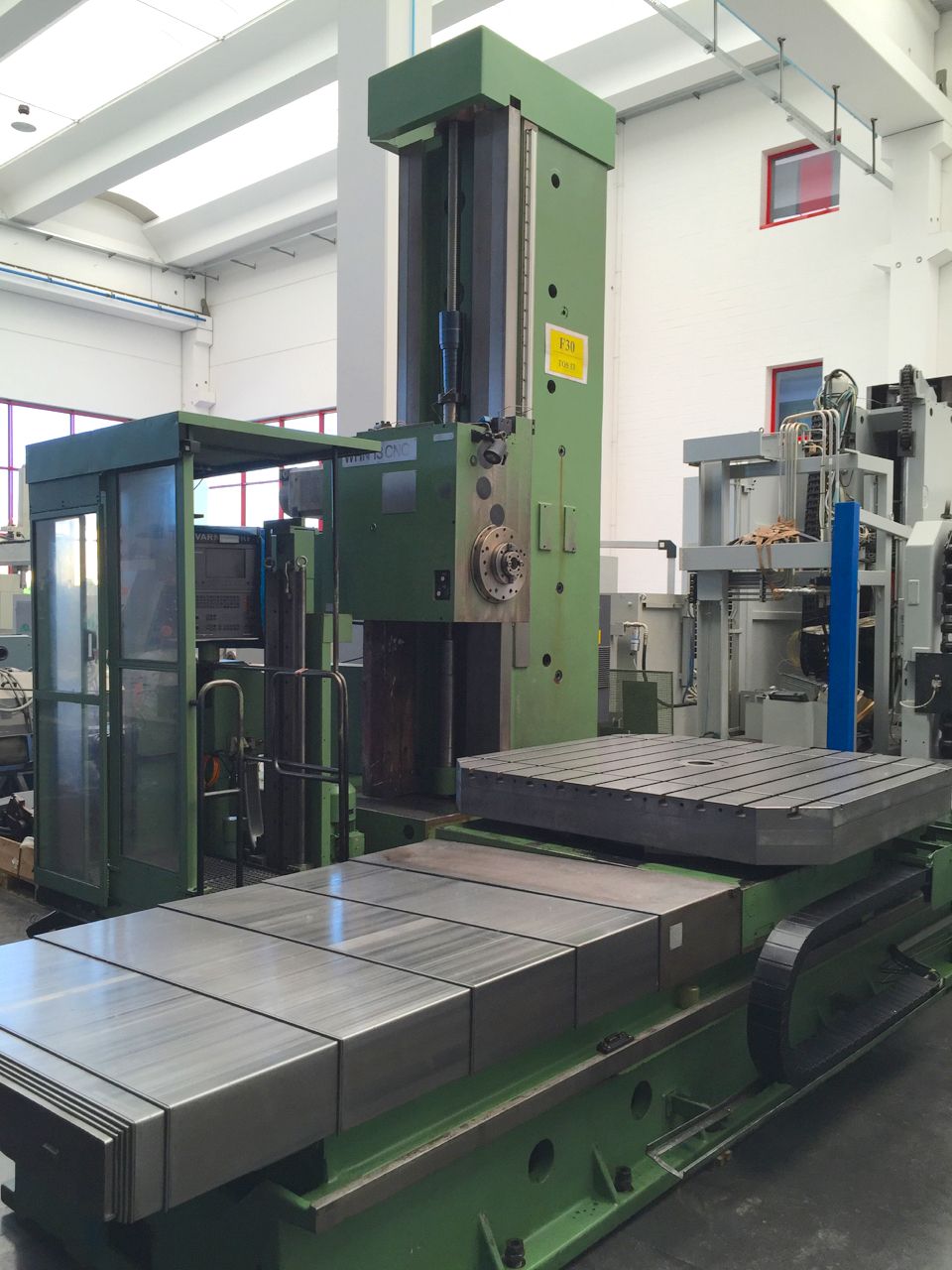

Boring Machine
Type
T-Type
Model
WHN 13.8 CNC
Capacity
3500x2500x1250+800 mm137,80x98,43x49,21+31,50 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
3500 mm137,80 in
Vertical (Y)
2500 mm98,43 in
Cross column (Z)
1250 mm49,21 in
Quill (W)
800 mm31,50 in
CNC
CNC

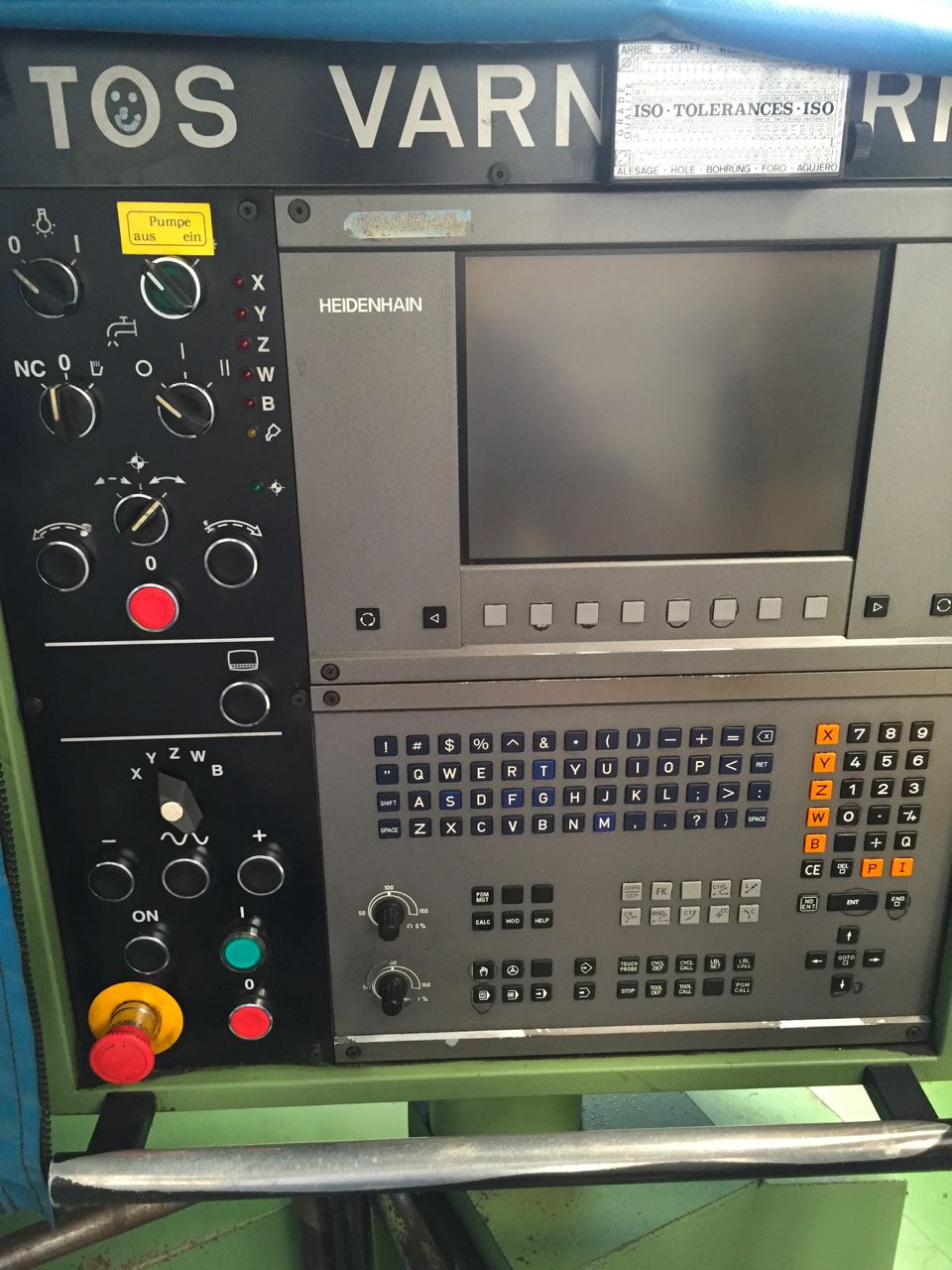

Heidenhain TN426 + HR410

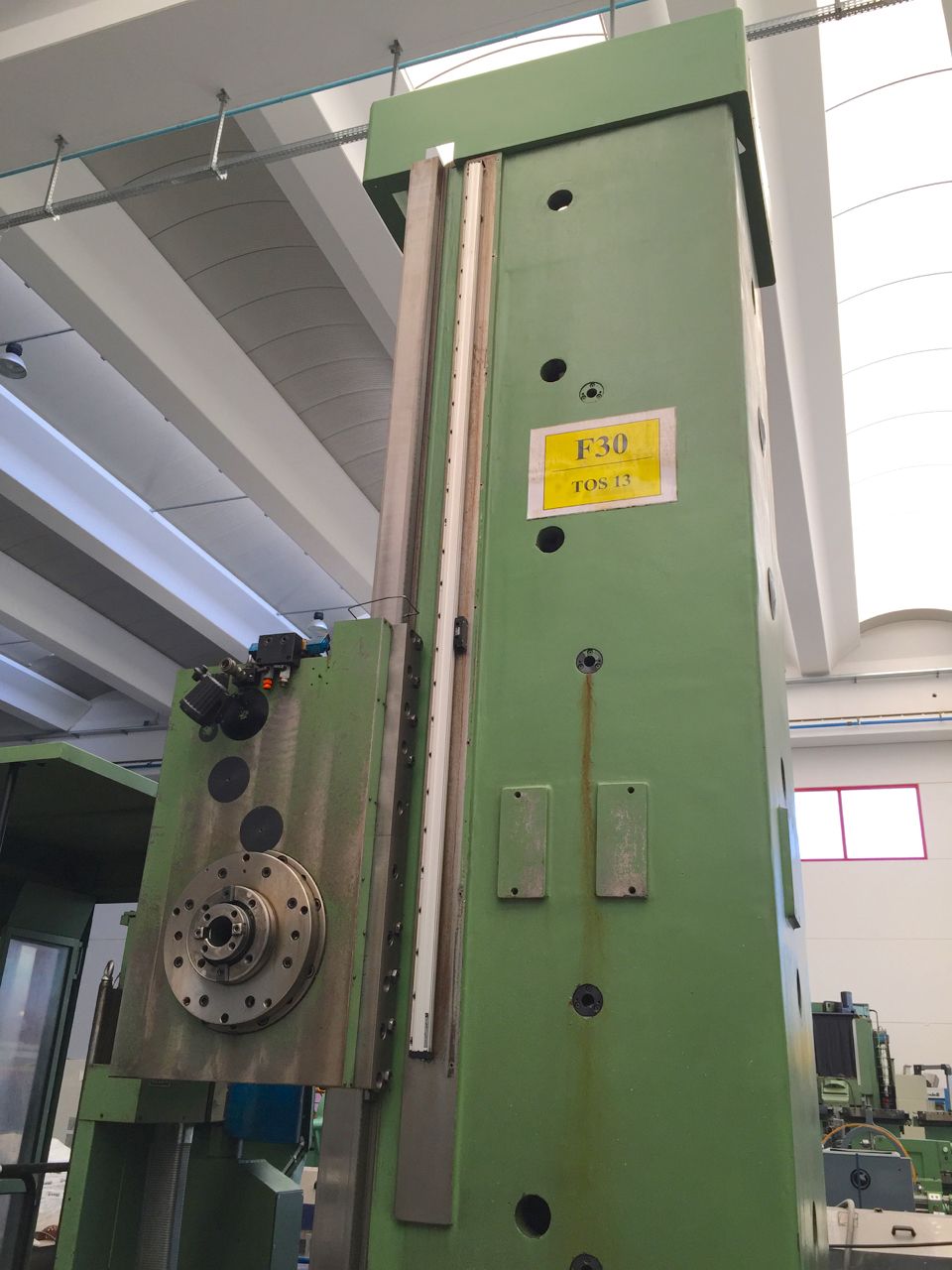

SPINDLE
Quill diameter
130 mm5,12 in
Spindle power
37/46 Kw
Rotating speed
10-2500 Rpm
Torque
2480-3083 Nm
Taper
ISO50
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm
Rapid W
8 m/min314,96 ipm
X
5 m/min196,85 ipm
Y
5 m/min196,85 ipm
Z
5 m/min196,85 ipm
W
5 m/min196,85 ipm

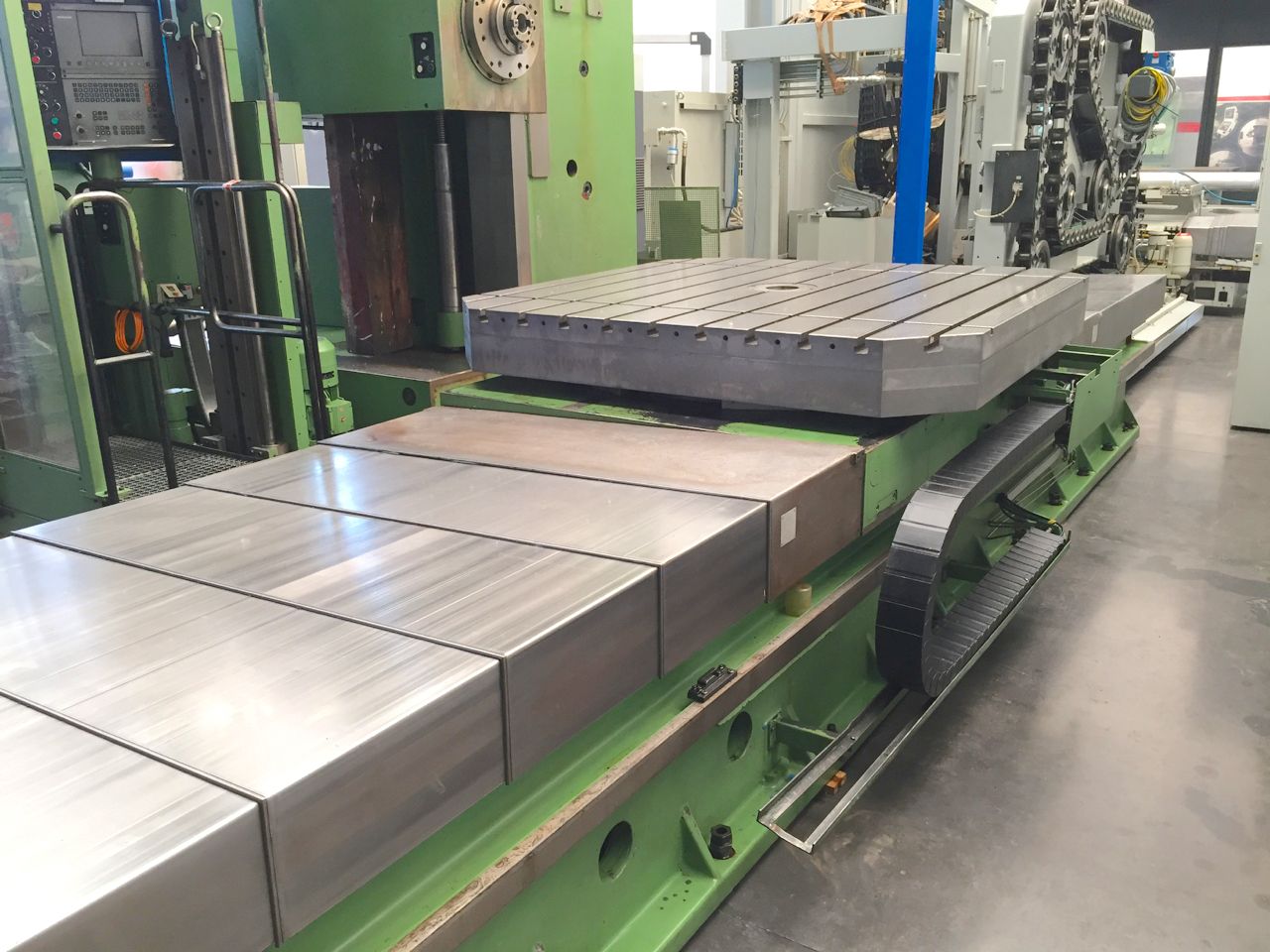

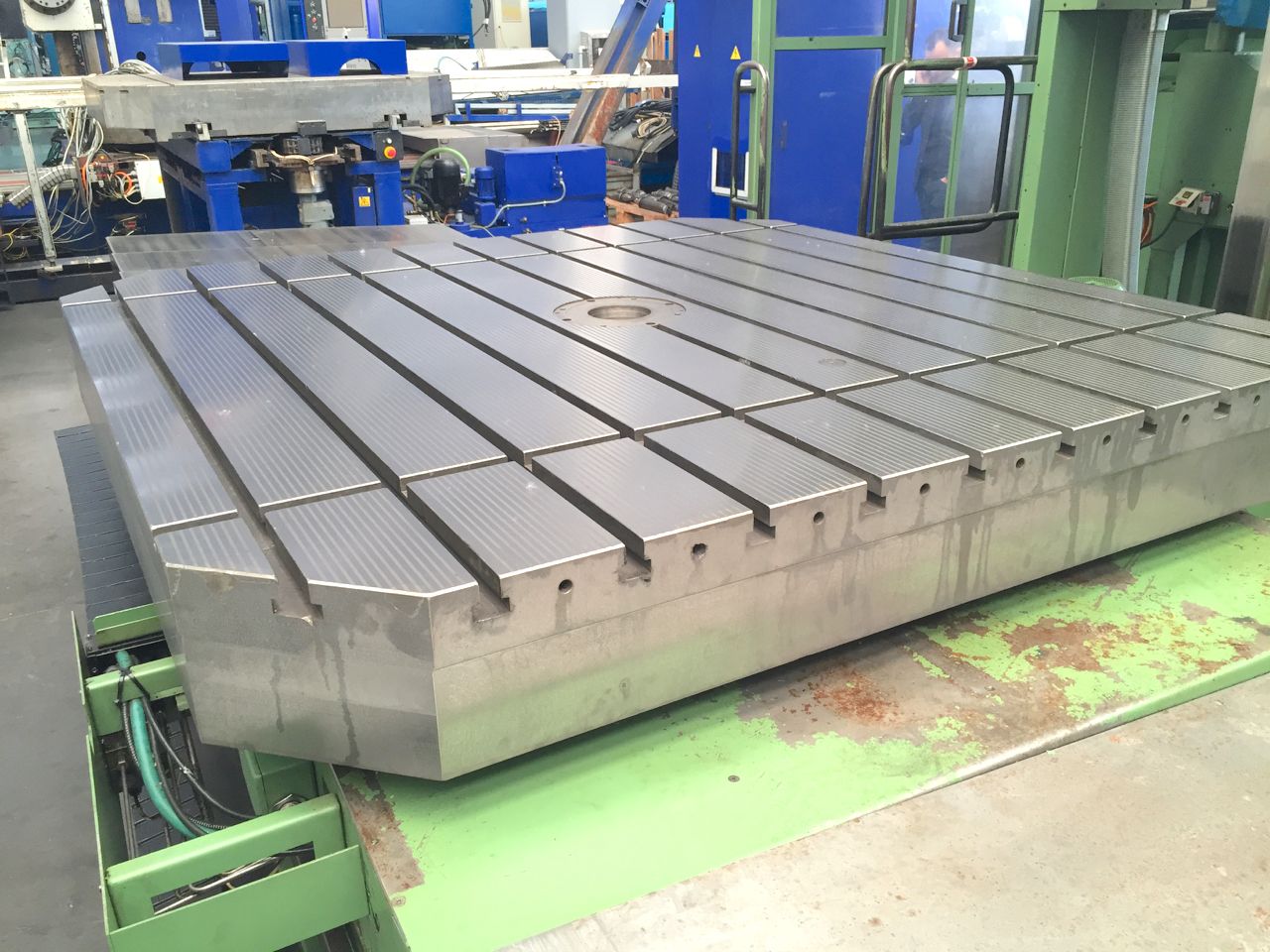

TABLE 1
Surface
1800x1800 mm70,87x70,87 in
Accuracy (B axis)
0,001 °
Capacity
12000 Kg
Rotating speed
2 Rpm o °/min
EXTRA
Machine total weight
38000 Kg
Floor space
6850x5900x4950 mm269,68x232,28x194,88 in
Operator platform
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Availability
pronta
Available in stock
si
Tooling included
Supporto mandrino VP13-550 , ascensore posto operatore
High Pressure
20Bar
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
