Category
Boring Machine
Type
T-Type
Made
Model

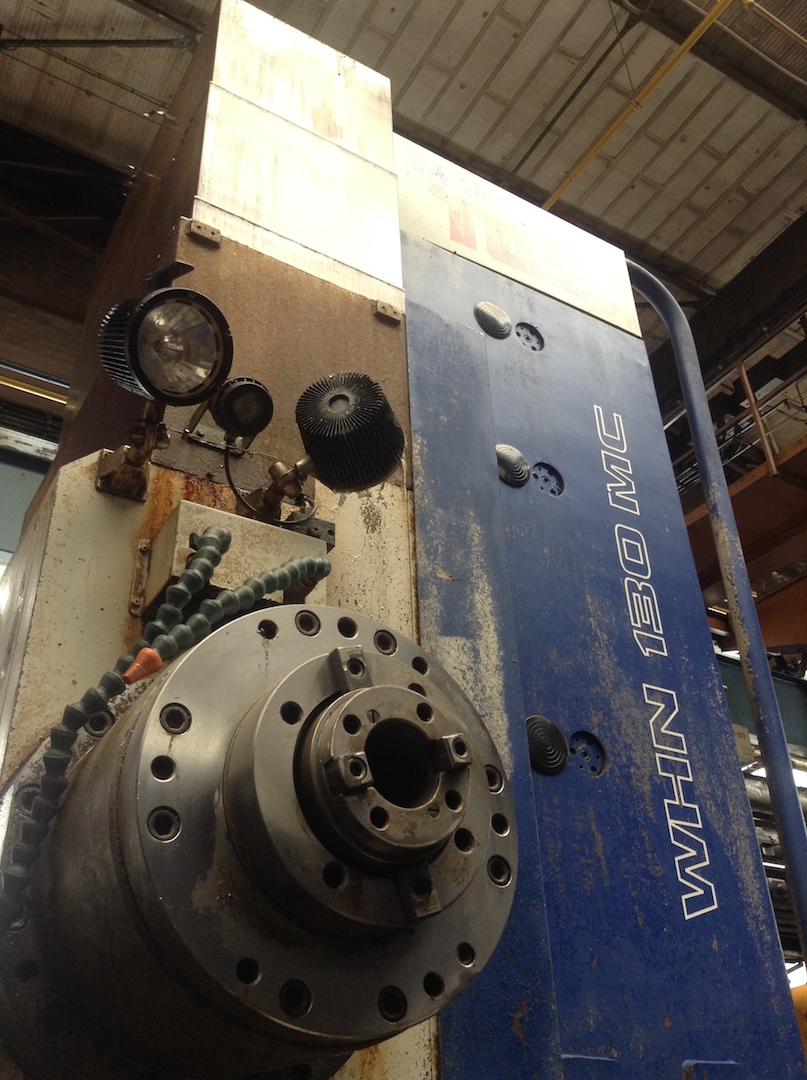

WHN 130 MC
Capacity
3000x1850x1250+560 mm118,11x72,83x49,21+22,05 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1850 mm72,83 in
Cross column (Z)
1250 mm49,21 in
Quill (W)
560 mm22,05 in

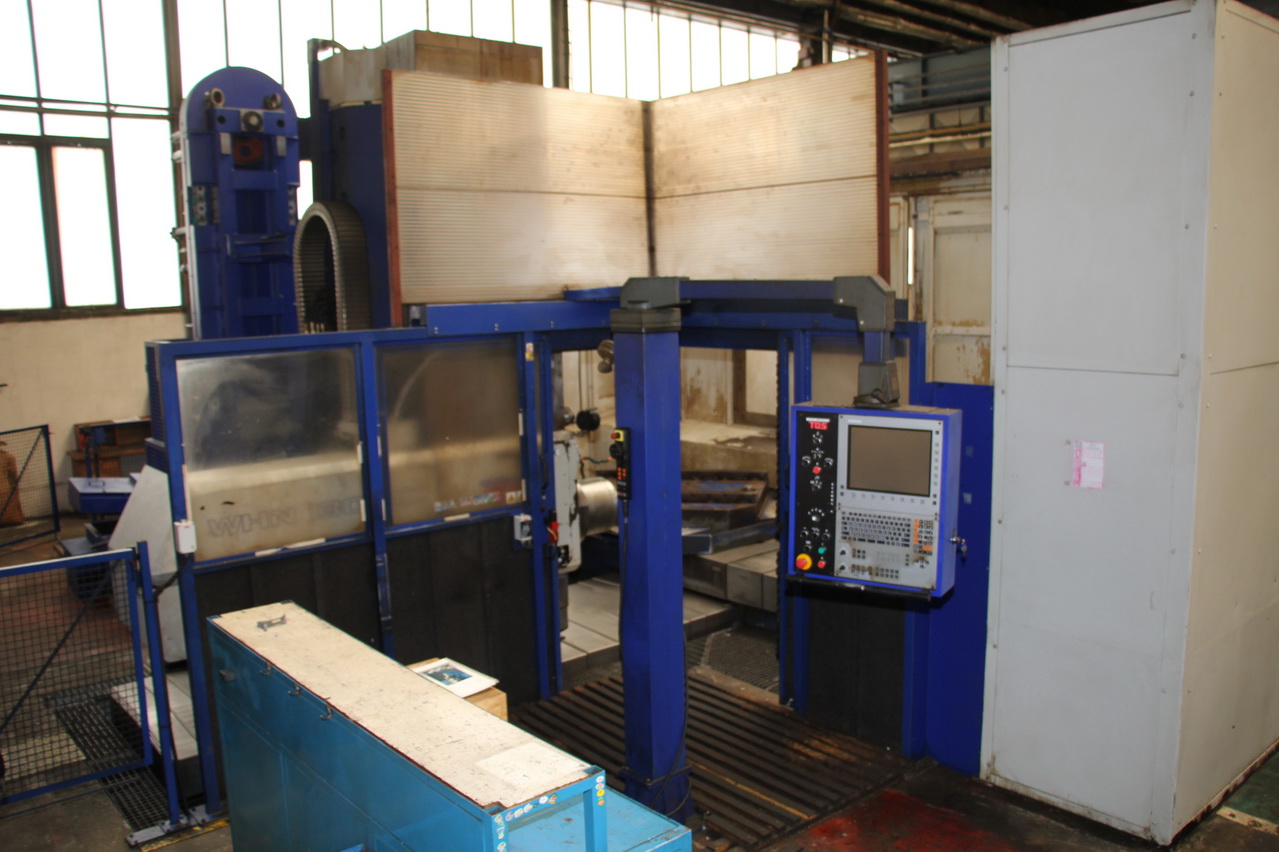

CNC
CNC

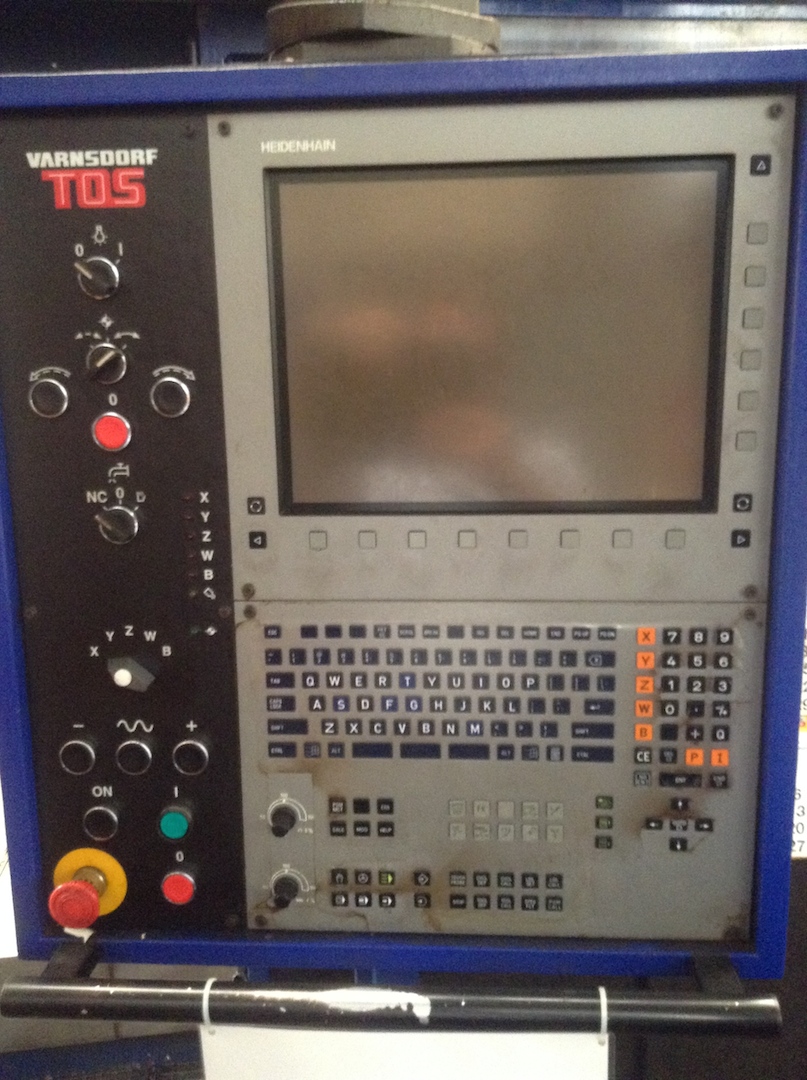

Heidenhain TNC530i
SPINDLE
Quill diameter
140 mm5,51 in
Spindle power
37/46 Kw
Rotating speed
10-3000 Rpm
Torque
2480-3083 Nm
Taper
ISO50
FEEDS
Rapid X
10 m/min393,70 ipm
Rapid Y
10 m/min393,70 ipm
Rapid Z
10 m/min393,70 ipm
Rapid W
10 m/min393,70 ipm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm
W
6 m/min236,22 ipm

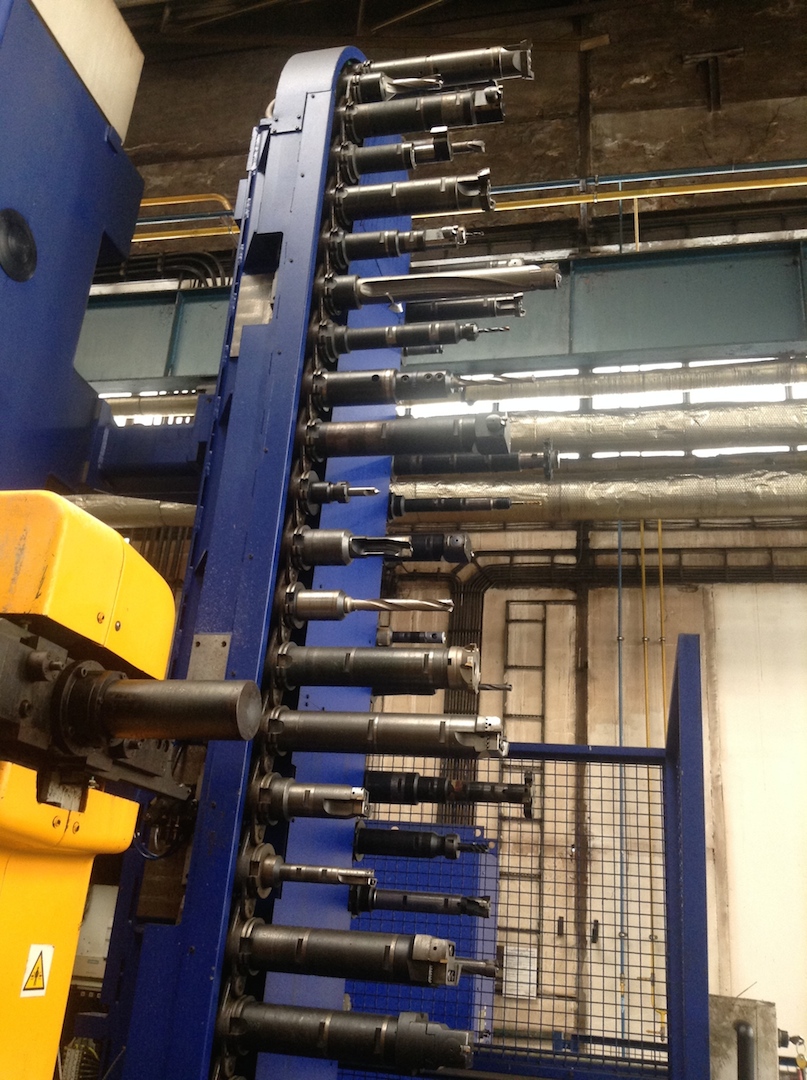

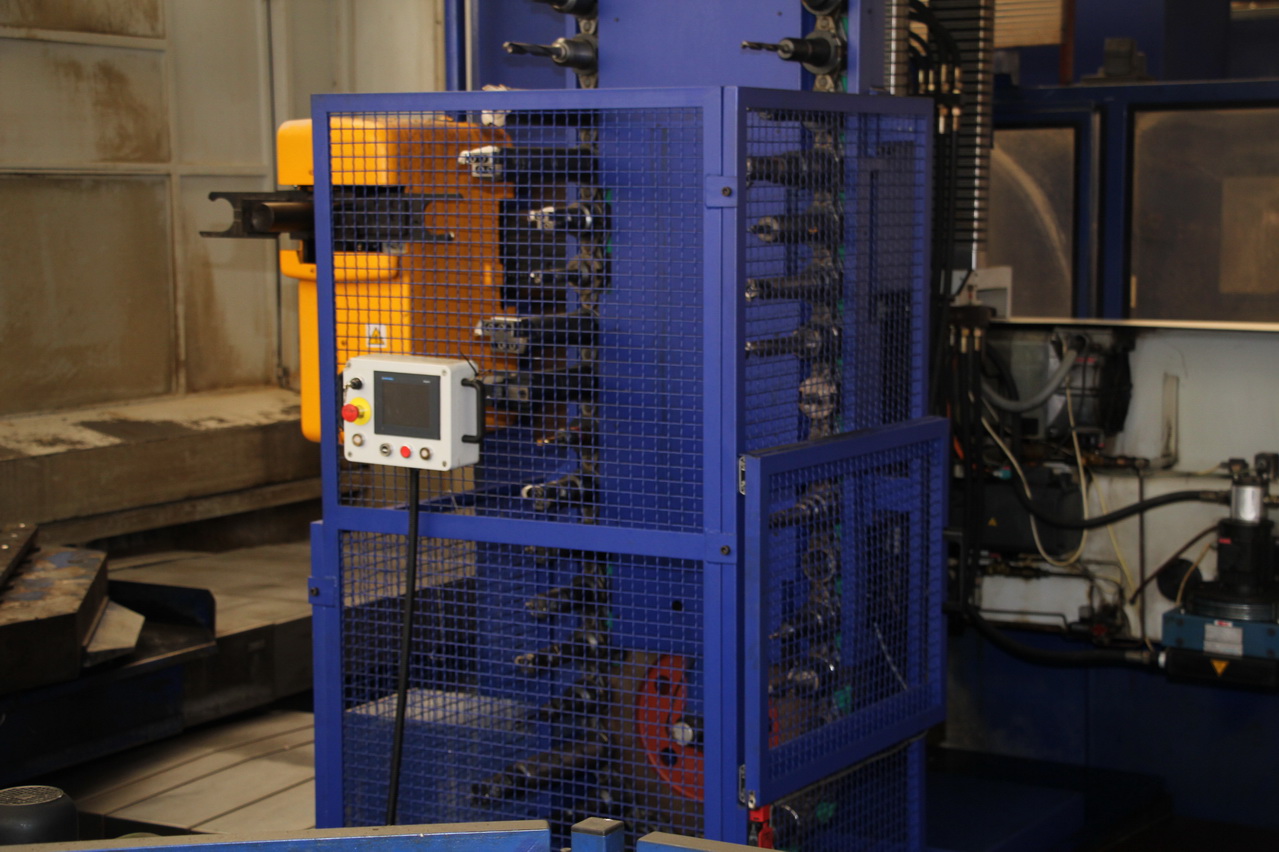

ATC
Positions
60
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
320 mm12,60 in
Max tool lenght
390 mm15,35 in
Max tool weight
25 Kg
Tool taper
ISO50

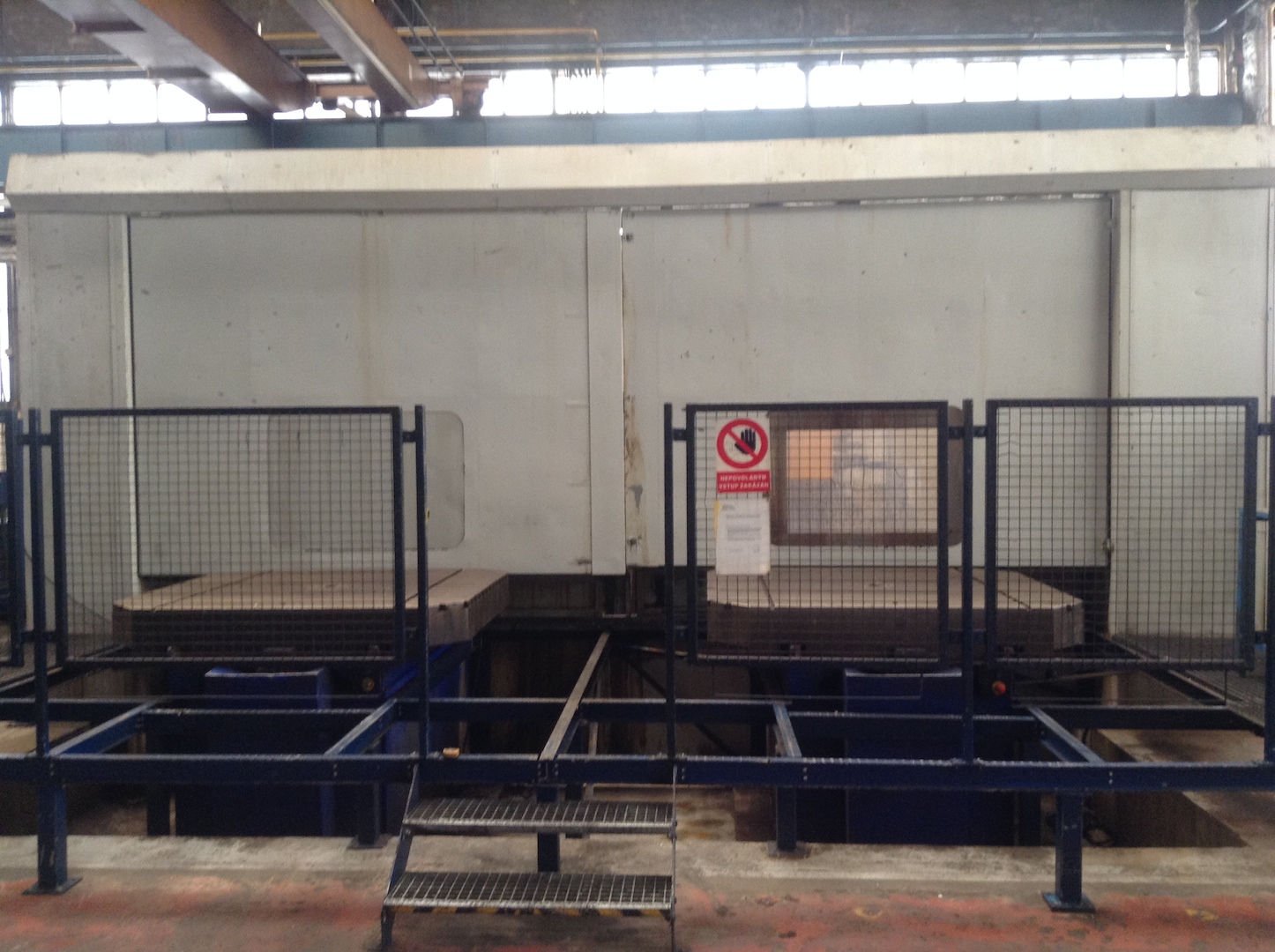

AUTO PALLET CHANGER (APC)
Pallet number
2
Pallet surface
1800x1600 mm70,87x62,99 in
Capacity
8000 Kg
Pallet changing time
85 sec.

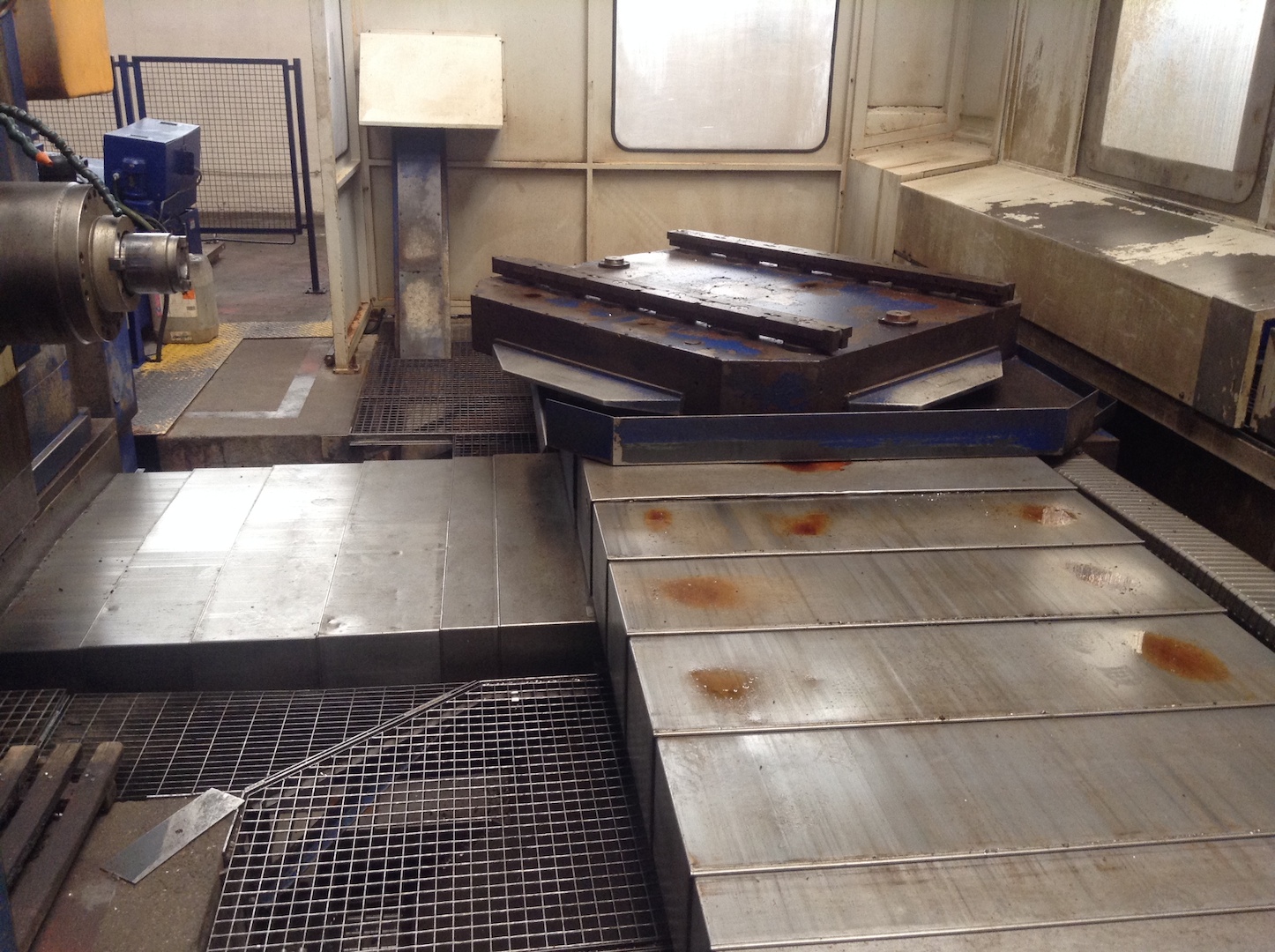

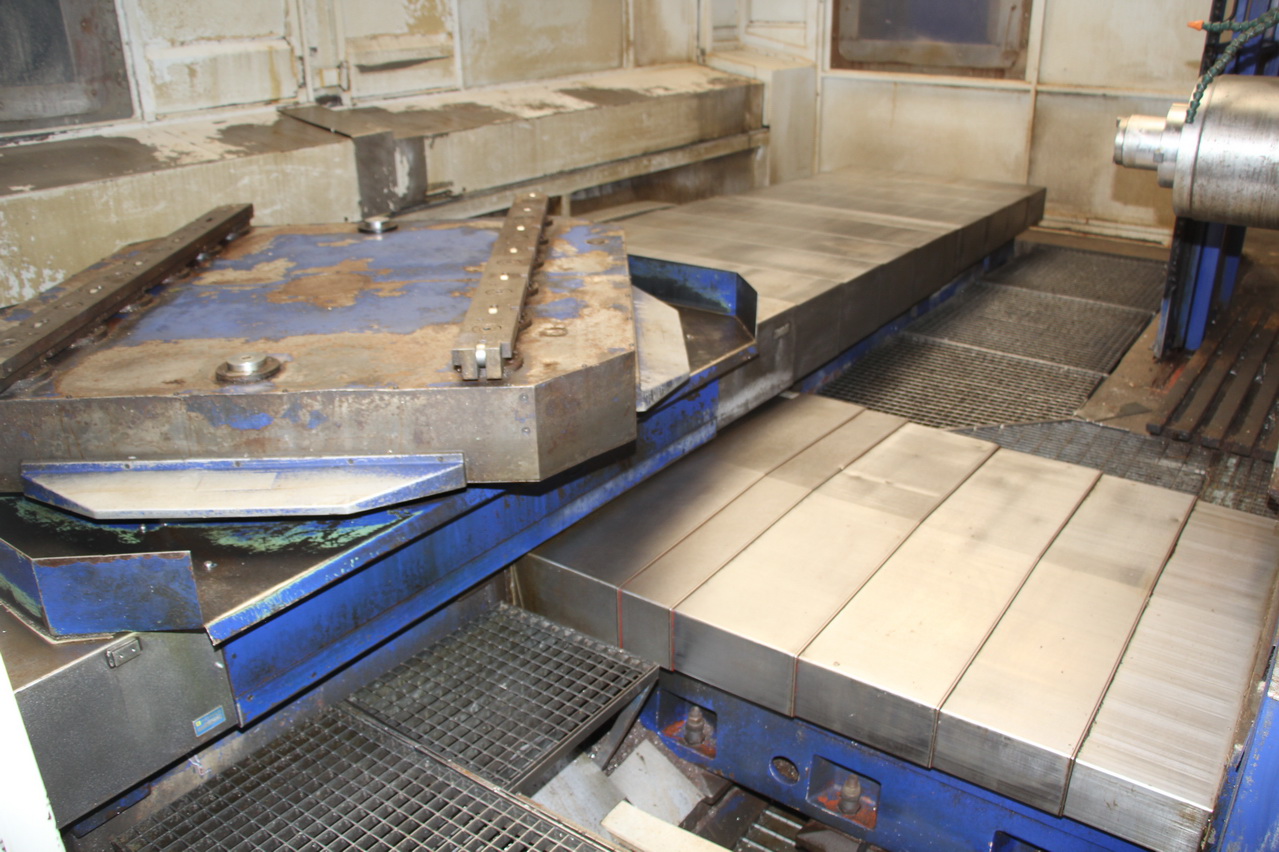

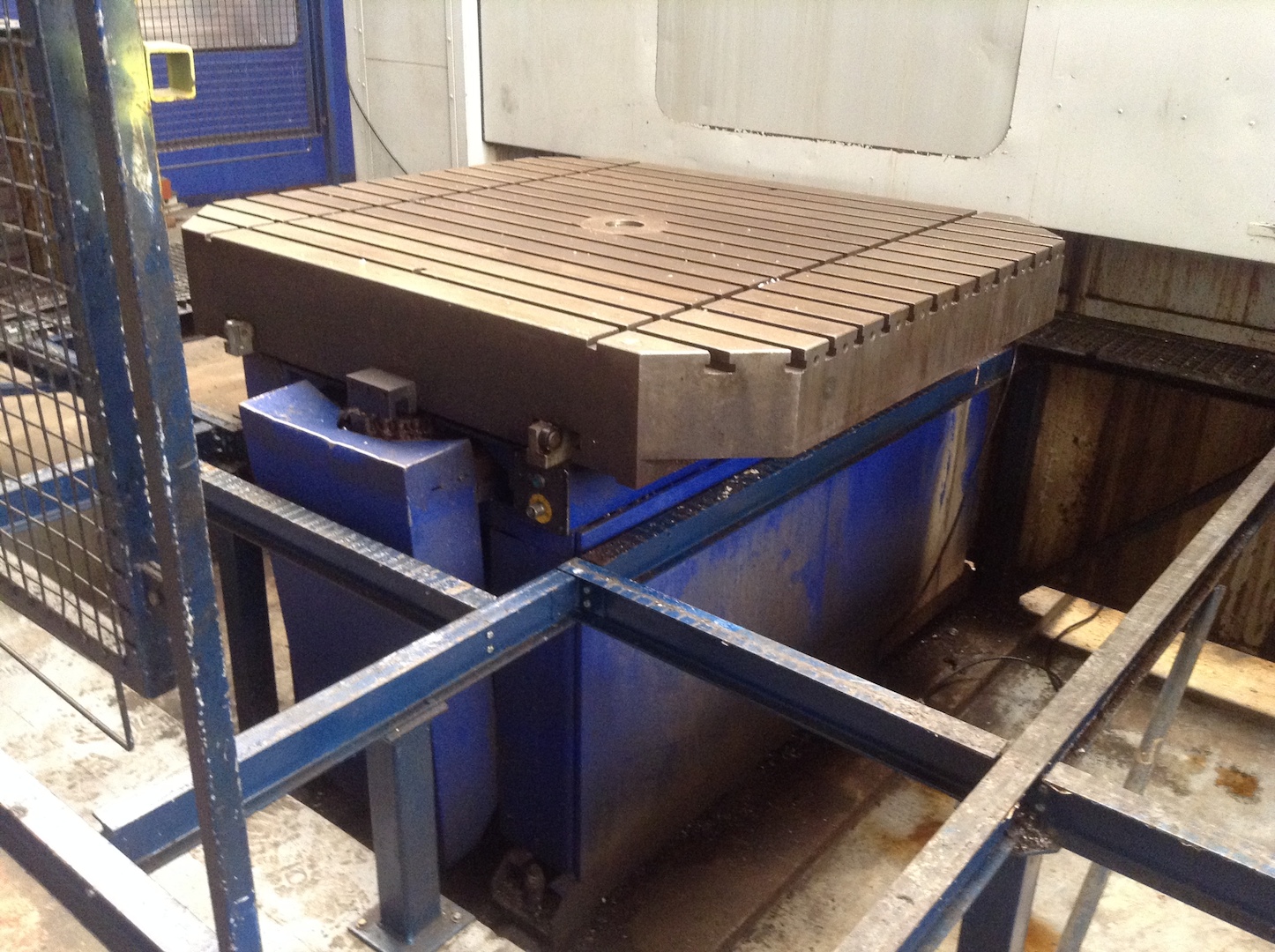

TABLE 1
Surface
1600x1800 mm62,99x70,87 in
Accuracy (B axis)
0,001 °
Capacity
8000 Kg
Rotating speed
2 Rpm o °/min
EXTRA
Total power supply
85 Kw
Machine total weight
37550 Kg
Floor space
6350x7750x4550 mm250,00x305,12x179,13 in
Tooling included
tastatore Renishaw, carenatura intergrale, alta pressione
High Pressure
20Bar
Filtration unit
Vasca filtro a carta
Chiller
si

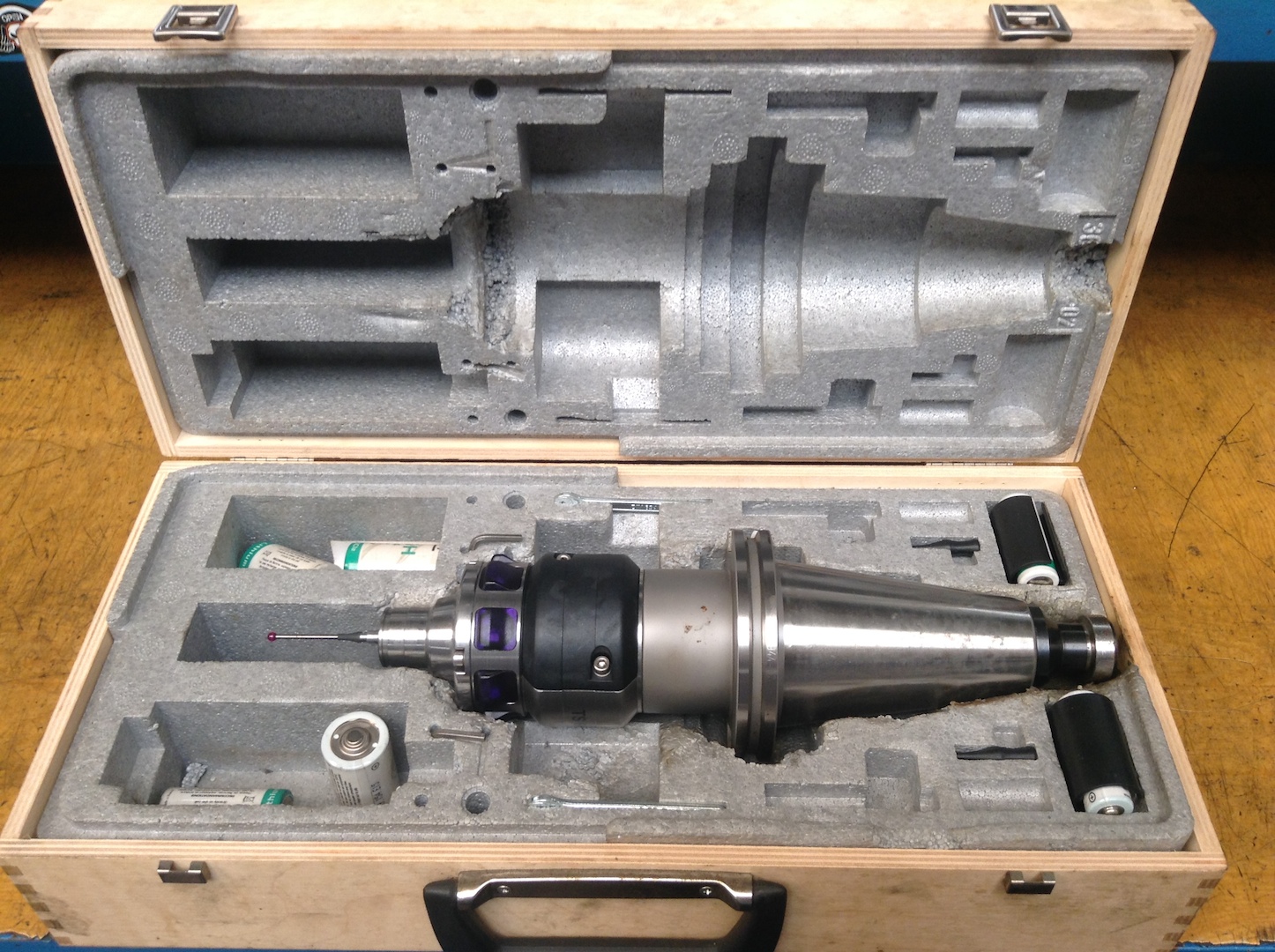

Workpiece touch probe
Renishaw
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

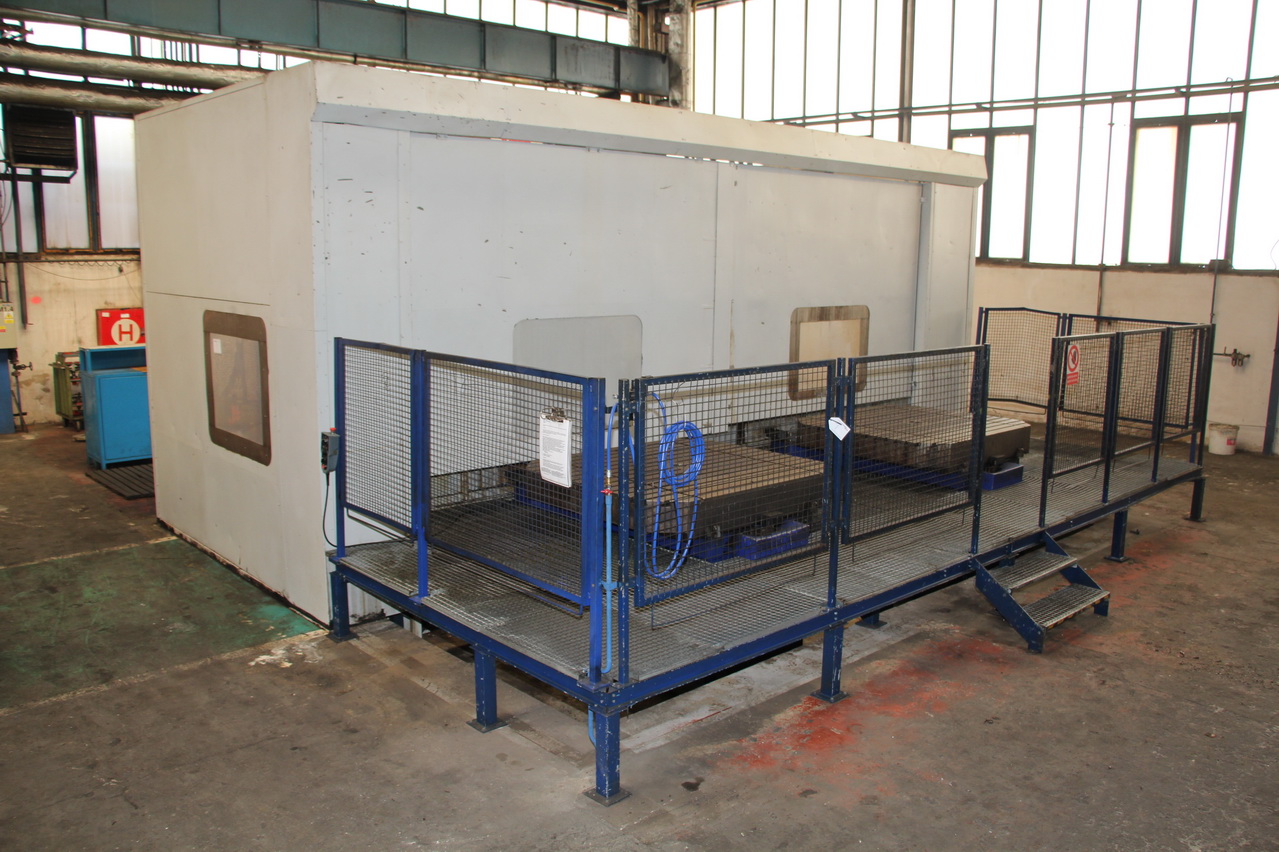

Housing
integrale con apertura automatica per carico/scarico pallet
Chip conveyor
longitudinale
Availability
pronta
Available in stock
si
